1. Product introduction

keyestudio Basic Starter Kit for REV4 and Mega

1.1 Kit Introduction

This is the basic Starter Kit, developed specially for those beginners who are interested in Arduino. You will have a set of Arduino’s most common and useful electronic components. What’s more, we will offer you a detailed tutorials including project introduction and their source codes.

You may learn about Arduino through using these basic projects. This kit will help you control the physical world with sensors.

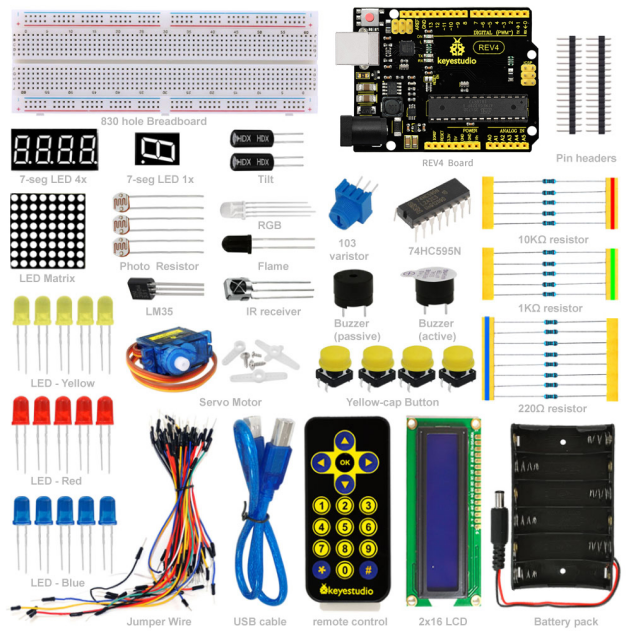

1.2 Kit Contents

No.	Item	Quantity	Picture
1	LED - Blue	5
2	LED - Red	5
3	LED - Yellow	5
4	LED - RGB	1
5	220 Ω Resistor	8
6	10KΩ Resistor	5
7	1KΩ resistor	5
8	10KΩ Potentiometer	1
9	Active Buzzer	1
10	Passive Buzzer	1
11	Button Switch	4
12	Ball Tilt Sensor	2
13	Photo Resistor	3
14	Flame Sensor	1
15	LM35 Temp Sensor	1
16	IC 74HC595N 16-pin	1
17	1-digit 7-seg LED Segment Display	1
18	4-digit 7-seg LED Segment Display	1
19	8*8 LED Matrix	1
20	1602 LCD display	1
21	IR Receiver	1
22	IR Remote Control	1
23	Servo Motor	1
24	16Pin Headers	2
25	830-hole Breadboard	1
26	Jumper Wire	1
27	6-cell AA Battery Case	1
28	USB Cable	1
29	Resistance color ring meter	1

1.3 Component Introduction

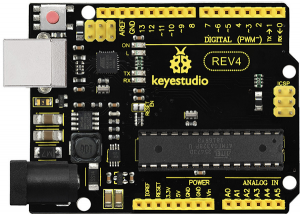

Keyestudio REV4 development board is a microcontroller board based on the ATmega328P (datasheet), fully compatible with ARDUINO UNO. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz quartz crystal, a USB connection, a power jack, 2 ICSP headers and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.
