1. Product introduction

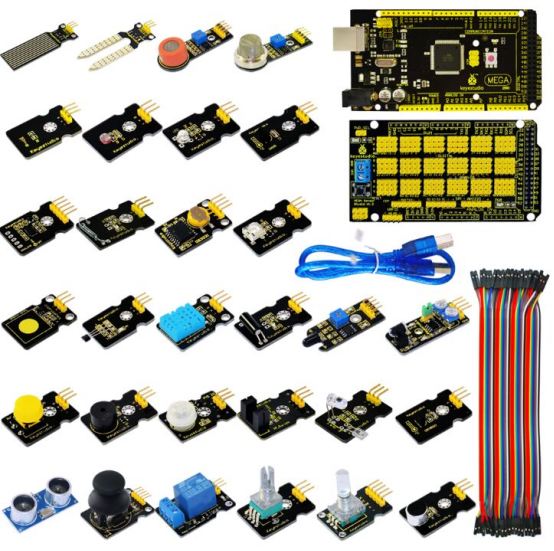

keyestudio New sensor kit with 2560 R3

Sensor kit for Arduino,Based on open-source hardware,30 various sensors in one box,for you to make interesting projects.

1.1 Introduction

This is an Arduino sensor learning kit developed by Keyes. We bring together 30 basic sensors and modules, aiming for the convenience of its learning for starters. Inside this box, there are digital and analog sensors and also some special modules such as buzzer, ultrasonic, acceleration modules etc. For each module, there is clear connection diagram and sample code. So even if you are totally new at this, you can get started easily.

The sample codes for this sensor kit are based on ARDUINO because it’s open source and easy. And if you are good at this, you can also apply this kit to other MCU development platform, such as 51, STM32, Raspberries Pi. The working principle is pretty much the same.

Now, let us embrace this fascinating world of ARDUINO and learn together!

1.2 Kit list

No.	Name	QTY	Picture
1	Keyestudio MEGA 2560 R3 controller board	1
2	Keyestudio V1 sensor shield	1
3	Female to female Dupont line	40
4	usb cable	1
5	White LED module	1
6	Red LED module	1
7	Passive Buzzer module	1
8	Hall Magnetic Sensor	1
9	LM35 Temperature Sensor	1
10	18B20 Temperature Sensor	1
11	Digital Tilt Sensor	1
12	Photocell sensor	1
13	Digital Push Button	1
14	Capacitive Touch Sensor	1
15	DHT11 Temperature and Humidity Sensor	1
16	Analog Sound Sensor	1
17	Flame Sensor	1
18	DS3231 Clock Module	1
19	MQ-2 Analog Gas Sensor	1
20	MQ-3 Analog Alcohol Sensor	1
21	Water sensor	1
22	Soil humidity sensor	1
23	Infrared Obstacle Avoidance Sensor	1
24	PIR Motion Sensor	1
25	Joystick Module	1
26	photo interrupter module	1
27	5V Relay Module	1
28	ADXL345 Three Axis Acceleration Module	1
29	Rotary Encoder module	1
30	Analog Rotation Sensor	1
31	HC-SR04 Ultrasonic Sensor	1
32	Pulse Rate Monitor	1
33	Reed Switch Module	1
34	TEMT6000 ambient light sensor	1
