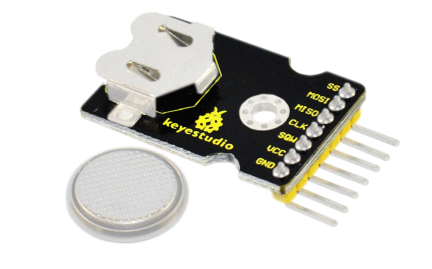

KS0166 keyestudio DS3234 high precision real time clock module

1. Introduction

The DS3234 is a low-cost, extremely accurate SPI™ bus real-time clock (RTC) with an integrated temperature-compensated crystal oscillator (TCXO) and crystal.

The DS3234 incorporates a precision, temperature-compensated voltage reference and comparator circuit to monitor VCC. The device switches to the backup supply input and maintains accurate timekeeping when main power to the device is interrupted.

The integration of the crystal resonator enhances the long-term accuracy of the device as well as reduces the piece-part count in a manufacturing line. The DS3234 is available in commercial and industrial temperature ranges, and is offered in an industry-standard 300-mil, 20-pin SO package.

2. Specification

• Accuracy ±2ppm from 0°C to +40°C

• Accuracy ±3.5ppm from -40°C to +85°C

• Battery Backup Input for Continuous Timekeeping

• Operating Temperature Ranges:

  • Commercial: 0°C to +70°C

  • Industrial: -40°C to +85°C

• Low-Power Consumption

• Real-Time Clock Counts Seconds, Minutes, Hours, Day, Date, Month, and Year with Leap Year. Compensation Valid Up to 2099

• Two Time-of-Day Alarms

• Programmable Square-Wave Output

• Digital Temp Sensor Output: ±3°C Accuracy

• 300-Mil, 20-Pin SO Package

• Underwriters Laboratories Recognized

• Battery: CR1225

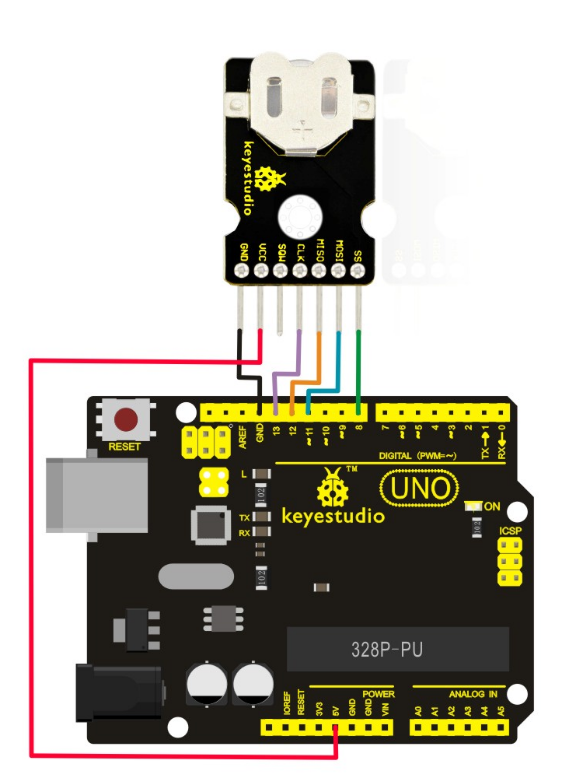

3. Circuit Connection

4. Sample Code

Download Resource : Resource

Note： before uploading the code, you need to import the library files; otherwise, the code upload will fail.

#include <SPI.h>
const int cs=8; //chip select

void setup()
{
    Serial.begin(9600);
    RTC_init();
    //day(1-31), month(1-12), year(0-99), hour(0-23), minute(0-59), second(0-59)
    SetTimeDate(16,5,2,14,15,16);
}

void loop()
{
    Serial.println(ReadTimeDate());
    delay(1000);
}
//=====================================

int RTC_init()
{
    pinMode(cs,OUTPUT); // chip select
    // start the SPI library:
    SPI.begin();
    SPI.setBitOrder(MSBFIRST);
    SPI.setDataMode(SPI_MODE3); // both mode 1 & 3
    //set control register
    digitalWrite(cs, LOW);
    SPI.transfer(0x8E);
    SPI.transfer(0x60); //60= disable Osciallator and Battery
    digitalWrite(cs, HIGH);
    delay(10);
}

//=====================================
int SetTimeDate(int d, int mo, int y, int h, int mi, int s)
{
    int TimeDate [7]={s,mi,h,0,d,mo,y};
    for(int i=0; i<=6;i++)
    {
        if(i==3)
        i++;
        int b= TimeDate[i]/10;
        int a= TimeDate[i]-b*10;
        if(i==2){
        if (b==2)
        b=B00000010;
        else if (b==1)
        b=B00000001;
    }
    TimeDate[i]= a+(b<<4);
    digitalWrite(cs, LOW);
    SPI.transfer(i+0x80);
    SPI.transfer(TimeDate[i]);
    digitalWrite(cs, HIGH);
    }
}

//=====================================
String ReadTimeDate()
{
    String temp;
    int TimeDate [7]; //second,minute,hour,null,day,month,year
    for(int i=0; i<=6;i++)
    {
        if(i==3)
        i++;
        digitalWrite(cs, LOW);
        SPI.transfer(i+0x00);
        unsigned int n = SPI.transfer(0x00);
        digitalWrite(cs, HIGH);
        int a=n & B00001111;
        if(i==2)
        {
            int b=(n & B00110000)>>4; //24 hour mode
            if(b==B00000010)
            b=20;
            else if(b==B00000001)
            b=10;
            TimeDate[i]=a+b;
        }
        else if(i==4)
        {
            int b=(n & B00110000)>>4;
            TimeDate[i]=a+b*10;
        }
        else if(i==5)
        {
            int b=(n & B00010000)>>4;
            TimeDate[i]=a+b*10;
        }
        else if(i==6)
        {
            int b=(n & B11110000)>>4;
            TimeDate[i]=a+b*10;
        }
        else
        {
            int b=(n & B01110000)>>4;
            TimeDate[i]=a+b*10;
        }
    }
    temp.concat(TimeDate[4]);
    temp.concat("/") ;
    temp.concat(TimeDate[5]);
    temp.concat("/") ;
    temp.concat(TimeDate[6]);
    temp.concat(" ") ;
    temp.concat(TimeDate[2]);
    temp.concat(":") ;
    temp.concat(TimeDate[1]);
    temp.concat(":") ;
    temp.concat(TimeDate[0]);
    return(temp);
}

5. Result

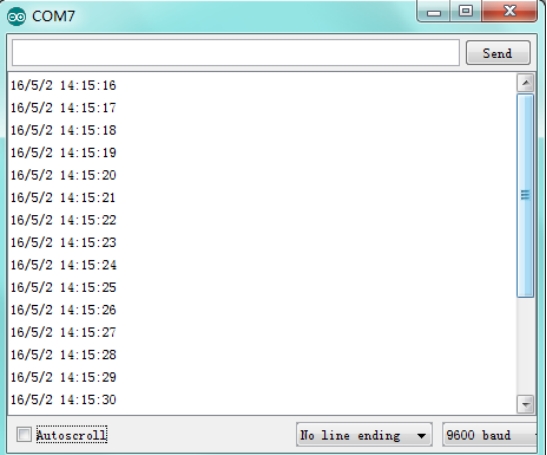

Open serial monitor, you can see the time display as below:
