KS0168 keyestudio L9110 fan control module

1. Introduction

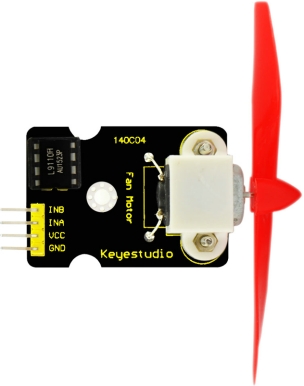

keyestudio L9110 fan control module adopts L9110 motor control chip. It can control the rotation direction of the motor, hence the fan.

The module is designed with mounting hole, compatible with servo motor control. The module is of high efficiency, with the high quality fan, it can easily blow out flame of a light in 20cm distance.

It’s an essential part in fire fighting robot development.

2. Specification

• Fan diameter: 75mm

• Working voltage: 5V

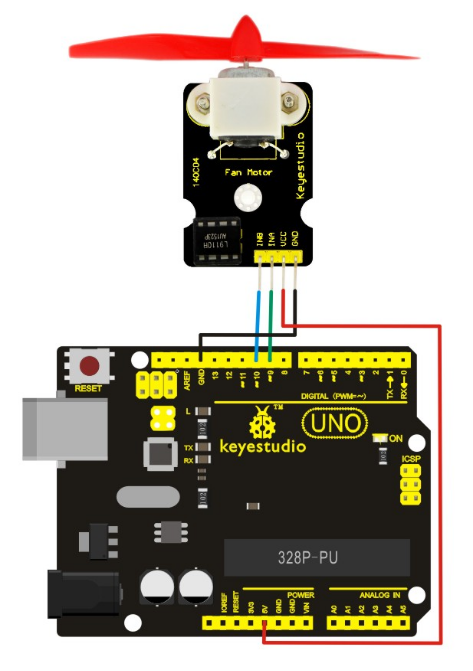

3. Circuit Connection

4. Sample Code

Download code : Code

int INA = 9;
int INB = 10;

void setup()
{
    pinMode(INA,OUTPUT);
    pinMode(INB,OUTPUT);
}

void loop()
{
    analogWrite(INA, 255);
    digitalWrite(INB,LOW);
    delay(5000);
    digitalWrite(INA,LOW);
    digitalWrite(INB,LOW);
    delay(200);
    digitalWrite(INA,LOW);
    analogWrite(INB, 255);
    delay(5000);
    digitalWrite(INA,LOW);
    digitalWrite(INB,LOW);
    delay(200);
}

5. Test Result

The fan will rotate clockwise for 5S at Max speed, stop for 0.2S; then rotate counter-clockwise for 5S at Max speed, stop for 0.2S; then repeat the cycle.
