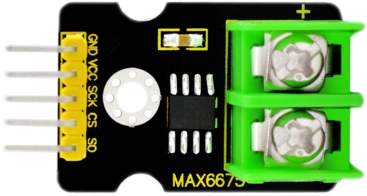

KS0169 Keyestudio MAX6675 K-Thermocouple-to-Digital Converter module

1. Introduction

keyestudio MAX6675 K-Thermocouple-to-Digital Converter module can independently perform functions of signal amplification, cold-junction compensation, linearization, A/D conversion and digital SPI Serial output.

MAX6675 is integrated with cold-junction compensation circuit, with simple 3-bit SPI-Compatible Serial Interface, digitalizing the signal from a type-K thermocouple and output in a 12-bit resolution.

This converter resolves temperatures to 0.25℃, allowing readings as high as +1023.75℃. Operating temperature range is among -20℃～80℃.

2. Specification

  • Simple SPI Serial output

  • Temperature measuring range: 0℃～1023.75℃

  • 12-Bit, 0.25°C Resolution

  • Integrated Cold-junction compensation circuit

  • High impedance differential input

  • Open Thermocouple Detection

  • Working voltage: 5V

  • Low power consumption

  • Operating temperature range: -20℃～80℃

  • ESD Protection (Human Body Model)
