Project 12 Hall Magnetic Sensor

1.Introduction

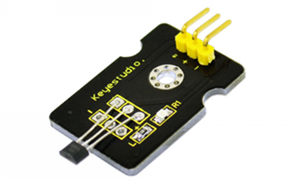

This is a Magnetic Induction Sensor. It senses the magnetic materials within a detection range up to 3cm. The detection range and the strength of the magnetic field are proportional. The output is digital on/off. This sensor uses the SFE Reed Switch - Magnetic Field Sensor.

2.Specification

  • Sensing magnetic materials

  • Detection range: up to 3cm

  • Output: digital on/off

  • Detection range and magnetic field strength are proportional

  • Size: 30*20mm

  • Weight: 3g

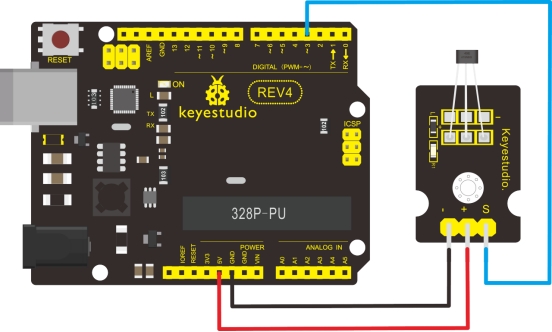

3.Connection Diagram

4.Sample Code

int ledPin = 13;                // choose the pin for the LED
int inputPin = 3;               // Connect sensor to input pin 3
int val = 0;                    // variable for reading the pin status

void setup()
{
  pinMode(ledPin, OUTPUT);      // declare LED as output
  pinMode(inputPin, INPUT);     // declare pushbutton as input
}
