Project 5 LED Chasing Effect

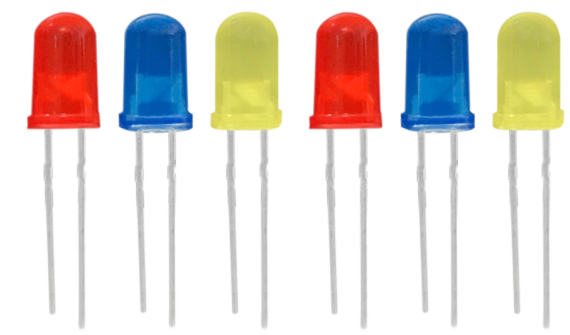

image-20251203152431392

1.Introduction

We often see billboards composed of colorful LEDs. They are constantly changing to form various effects. In this experiment, we compile a program to simulate chase effect.

2.Hardware Required

  • Arduino Board *1

  • USB Cable *1

  • Red M5 LED*2

  • Yellow M5 LED*2

  • Blue M5 LED*2

  • 220Ω Resistor *6

  • Breadboard*1

  • Breadboard Jumper Wires

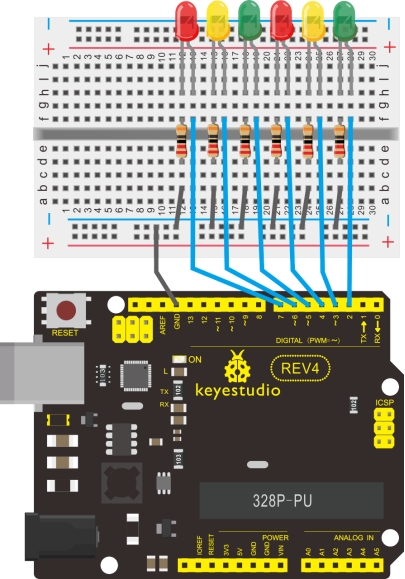

3.Circuit Connection

4.Sample Code

int BASE = 2 ;  // the I/O pin for the first LED
int NUM = 6;   // number of LEDs

void setup()
{
   for (int i = BASE; i < BASE + NUM; i ++)
   {
     pinMode(i, OUTPUT);   // set I/O pins as output
   }
}

void loop()
{
   for (int i = BASE; i < BASE + NUM; i ++)
   {
     digitalWrite(i, LOW);    // set I/O pins as “low”, turn off LEDs one by one.
     delay(200);        // delay
   }
   for (int i = BASE; i < BASE + NUM; i ++)
   {
     digitalWrite(i, HIGH);    // set I/O pins as “high”, turn on LEDs one by one
     delay(200);        // delay
   }
}

5.Result

You can see the LEDs blink by sequence.
