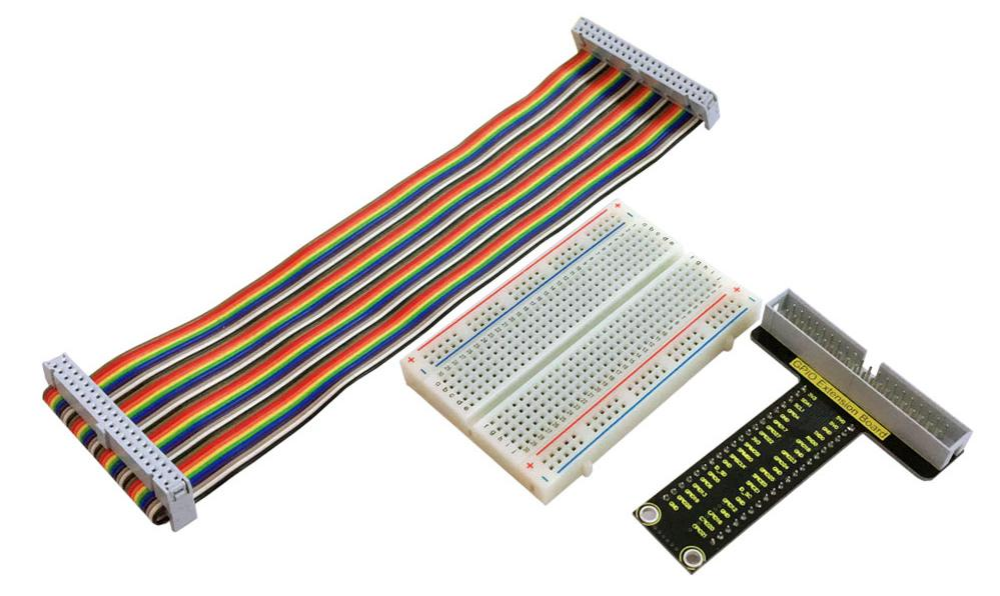

keyestudio T-type GPIO Shield Kit For Raspberry Pi

image-20260120160940641

Introduction

This kit is designed for you to connect to external devices, includingT-type shield, 40pin ribbon cable, 400-point breadboard, compatible with Raspberry Pi A+/B+/3 B.

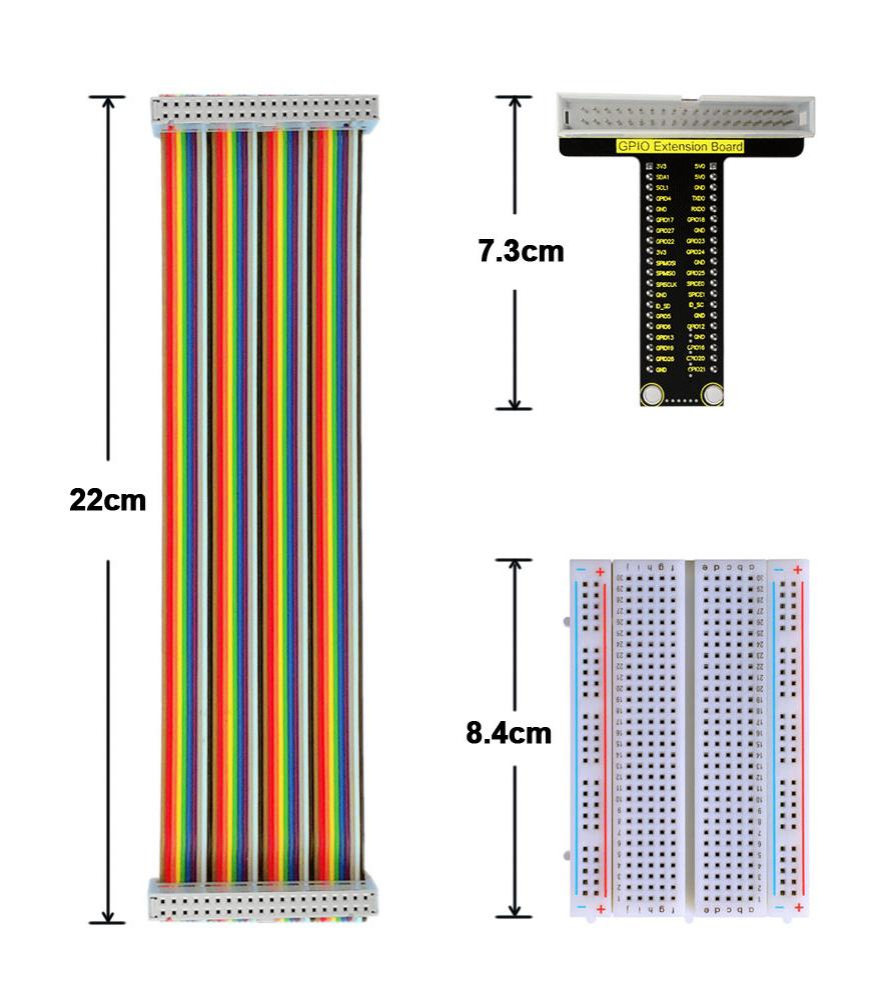

Shipping List

  • T-type Shield *1

  • 40pin ribbon cable *1

  • 400-point Breadboard*1

image-20260120161111922

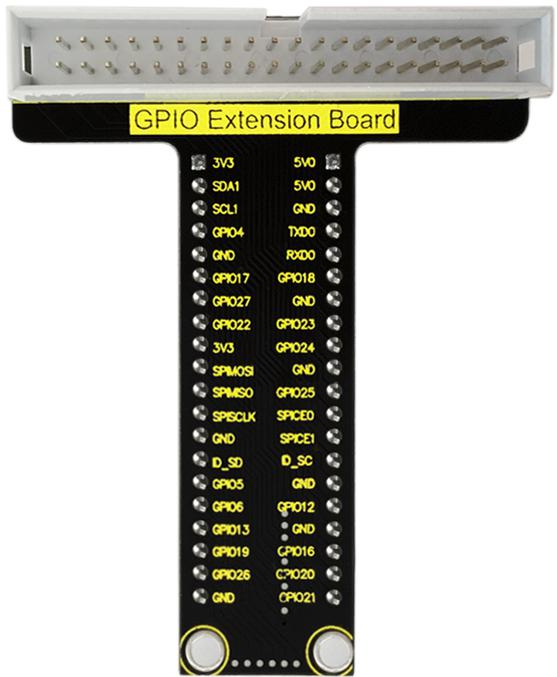

keyestudio RPI T-type GPIO Shield

image-20260120161141400

This RPI T-type GPIO extension board is specifically designed forRaspberry Pi B+, to help you to connect extemal device on the breadboard. The T-type GPIO board can plug into any solderless breadboard. ThePCB has all the pins labeled nicely so you can go forth and build circuits without keeping a pin-out printout at your desk.

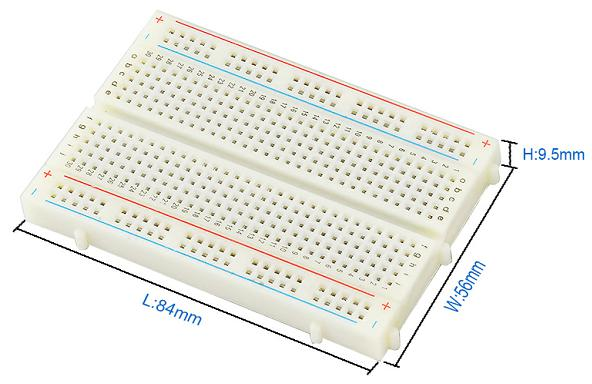

400 Tie-Points Solderless Breadboard

This is a white solderless breadboard. It has 2 power buses, 10 columns, and 30 rows- a total of 400 tie in points.This half size breadboard is good for small projects. It has a standarddouble-strip in the middle and two power rails on both sides. This board also has a self-adhesive on the back.

image-20260120161243231

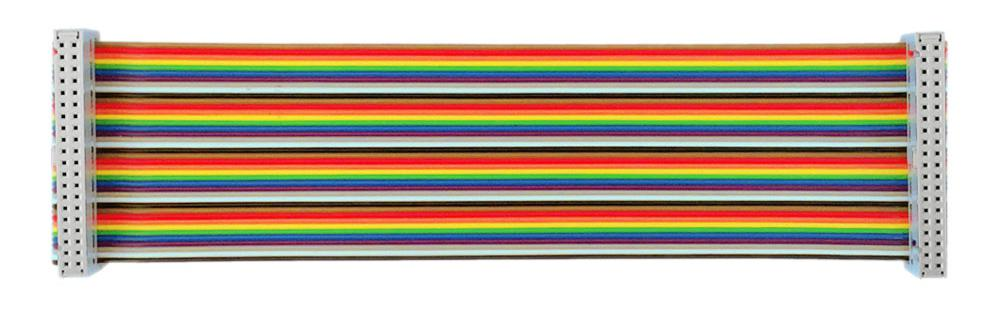

40pin Ribbon Cable

This 40pin ribbon cable is specially designed for Raspberry Pi. Its gold-plating pinpoints are compatible with GPIO ports.

image-20260120161325051

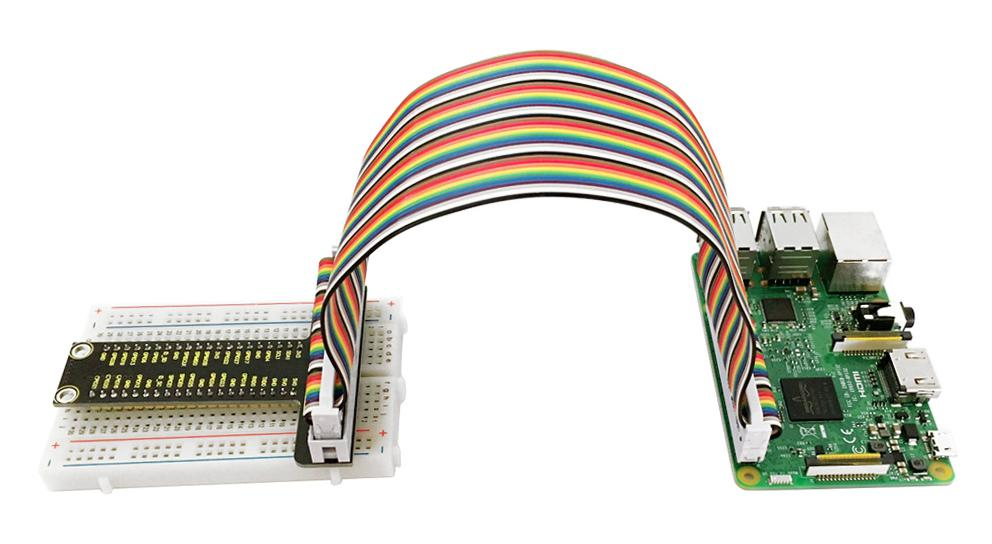

Example Use You can easily plug RPI T-type GPIO extension board into breadboard,then use a ribbon cable to connect the board to your RPI.

image-20260120161350334
