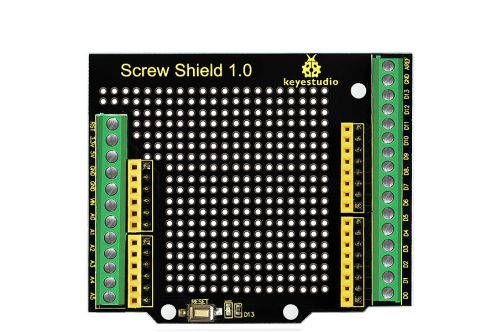

KS0252 keyestudio Proto Screw Shield for Arduino

1. Introduction

Sometimes you might feel very troublesome when connect the breadboard or sensor shield to Arduino board with a bunch of jumper wires.

Now we have launched this Proto Screw Shield, very reliable and easy for you to connect the wire. The shield also comes with a double-sided prototyping area so that you can solder some electronic elements to design your various prototype circuits.

It also comes with a reset button and a D13 indicator. This shield is an integration of Arduino Screw Shield and Proto Shield.

2. Features

  • oviding the terminal block IO, convenient for connection.

  • High-quality terminal block, reliable, convenient and durable.

  • Compatible with ProtoShield, the middle part can be used as proto shield.

  • Comes with double-sided PCB through-hole prototyping area, welding some elements as you like.

  • You can place a tiny breadboard on the through-hole pad to make extension experiments.

  • Comes with a reset button

  • Comes with D13 indicator

3. Parameters

  • Terminal block spacing: 3.5mm

  • Female header pitch: 2.54mm

4. Controller Compatible

  • keyestudio UNO R3 BOARD

5. Technical Details

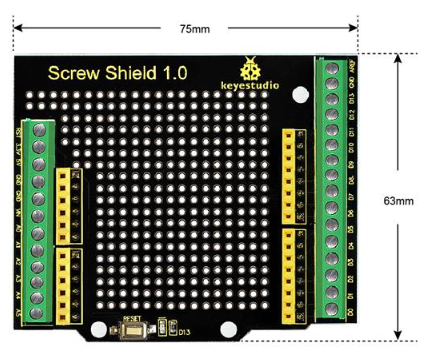

  • Dimensions: 75mm x 63mm

  • Weight: 29.2g

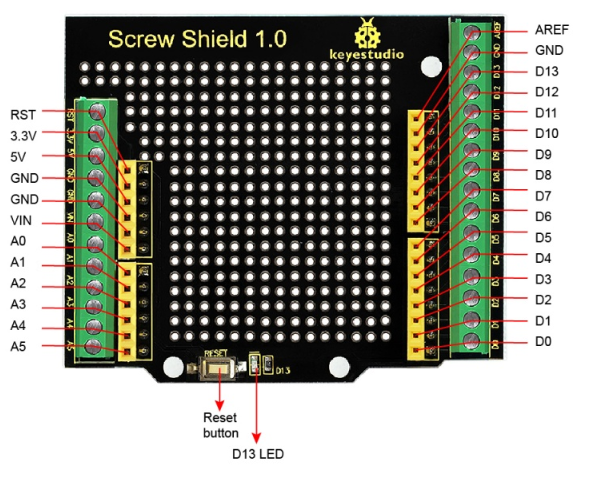

6. PINOUT

Those interfaces marked red line are connected.

7. Example Use

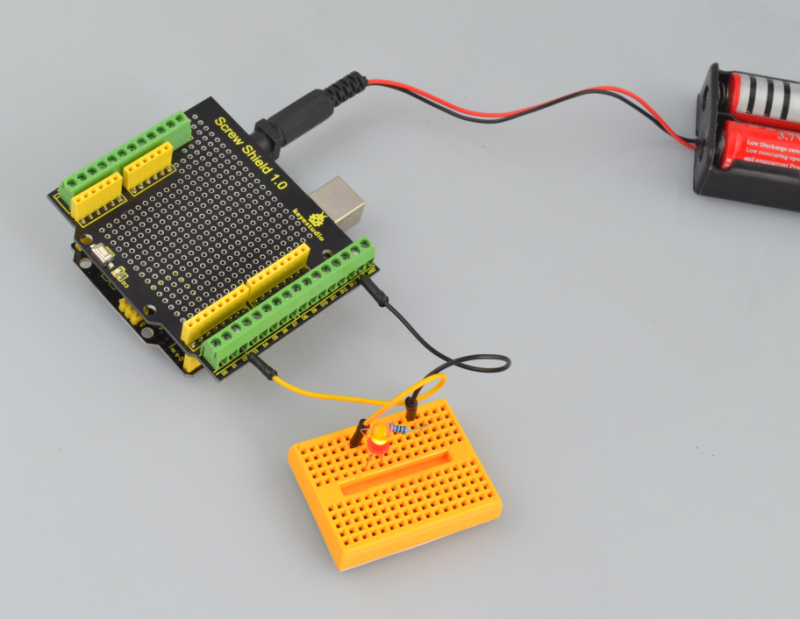

Stack the shield onto keyestudio UNO R3 board, and upload well the code, you could power the board via black DC jack to light up an external LED.
