keyestudio ReSpeaker 2-Mic Pi HAT V1.0

KS0314

Overview

This is keyestudio ReSpeaker 2-Mic Pi HAT V1.0 shield designed for AI and voice applications. It is a low power stereo Codec based on the WM8960. There are two microphones on the shield for sound collection, three APA102 RGB LEDs, one user button and two connectors for application extension. The shield comes with a 2.54mm Grove cable
In addition, a 3.5mm audio jack or XH2.54-2P speaker output can be used for audio output. With this shield, you can build a more powerful and flexible voice product that integrates Amazon Amazona voice services, Google Assistant, and more. Note:After plugging in speaker module, the status of RGB LED is not stable; however,the status is normal when testing RGB.

[KS0314 back.jpg

Features

  • Support the Raspberry Pi 3B,4B

  • Two microphones (Mic L and Mic R)

  • Two Grove connectors

  • One User-defined button

  • 3.5mm audio interface

  • XH2.54-2P audio output interface

Note:The experiment is done with Raspberry Pi 4B. Yet other versions of Raspberry Pi may not be compatible.

PINOUT

Interface Explanations

  1. Button: default connected to GPIO17

  2. Mic L and Mic R: microphone (labeled LEFT and RIGHT)

  3. RGB LED: three APA102 RGB LEDs, connected to the SPI interface of Raspberry Pi.

  4. WM8960: Low Power Stereo Codec

  5. Raspberry Pi 40 pin header: support the Raspberry Pi Zero, Raspberry Pi 3B and Raspberry Pi 4B.

  6. POWER: Micro USB port that powers the ReSpeaker 2-Mic Pi HAT. Power the circuit board to supply enough current when use the speaker.

  7. I2C: Grove I2C port, connected to I2C-1

  8. GPIO12: Grove digital port, connected to GPIO12 and GPIO13

  9. XH2.54-2P SPEAKER OUT: connecting speakers, XH2.54-2P connector

  10. 3.5mm audio jack: connecting headphones or speakers with 3.5mm audio plug

    Test Method

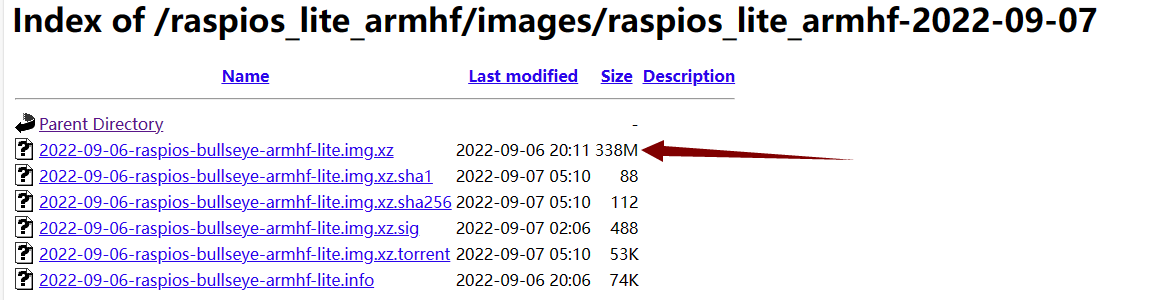

    1. Firstly install the 2018-06-27-raspbian-stretch-lite to the RPI control board. You can download the image system from the link:

    https://downloads.raspberrypi.com/raspios_lite_armhf/images/raspios_lite_armhf-2022-09-07/2022-09-06-raspios-bullseye-armhf-lite.img.xz

    image-20240430152958044

    Refer to the image installation from the link: http://wiki.keyestudio.com/index.php/KS0221_keyestudio_Ultimate_Starter_Kit_for_Raspberry_Pi

    2. Log onto the image file, followed by installing the driver as below. sudo apt-get update

    image-20240430154437323

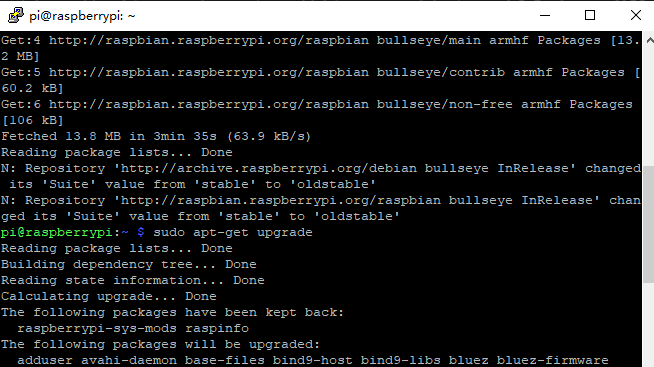

    sudo apt-get upgrade

image-20240430154520603

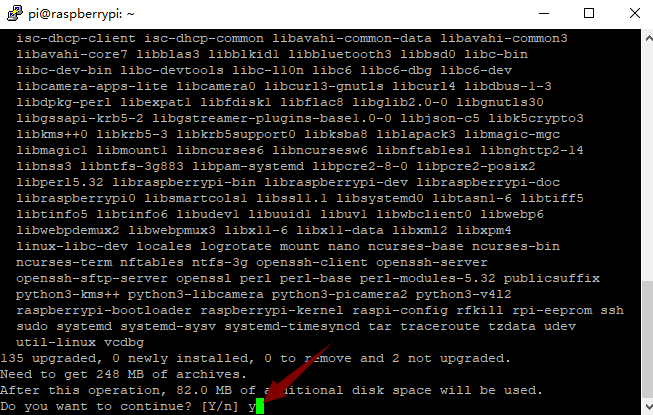

Enter “y” and press the “ENTER key” to continue.

image-20240430154708998

image-20240430155608456

Enter the website https://www.dropbox.com/scl/fo/4x60kwe9gpr3no0h6s2xl/AP9QcnN3ApKXkGh9CJPLDzU?rlkey=1sjn1xxr114zviozu0pguwpnd&e=1&dl=0 to download the zipped package file.

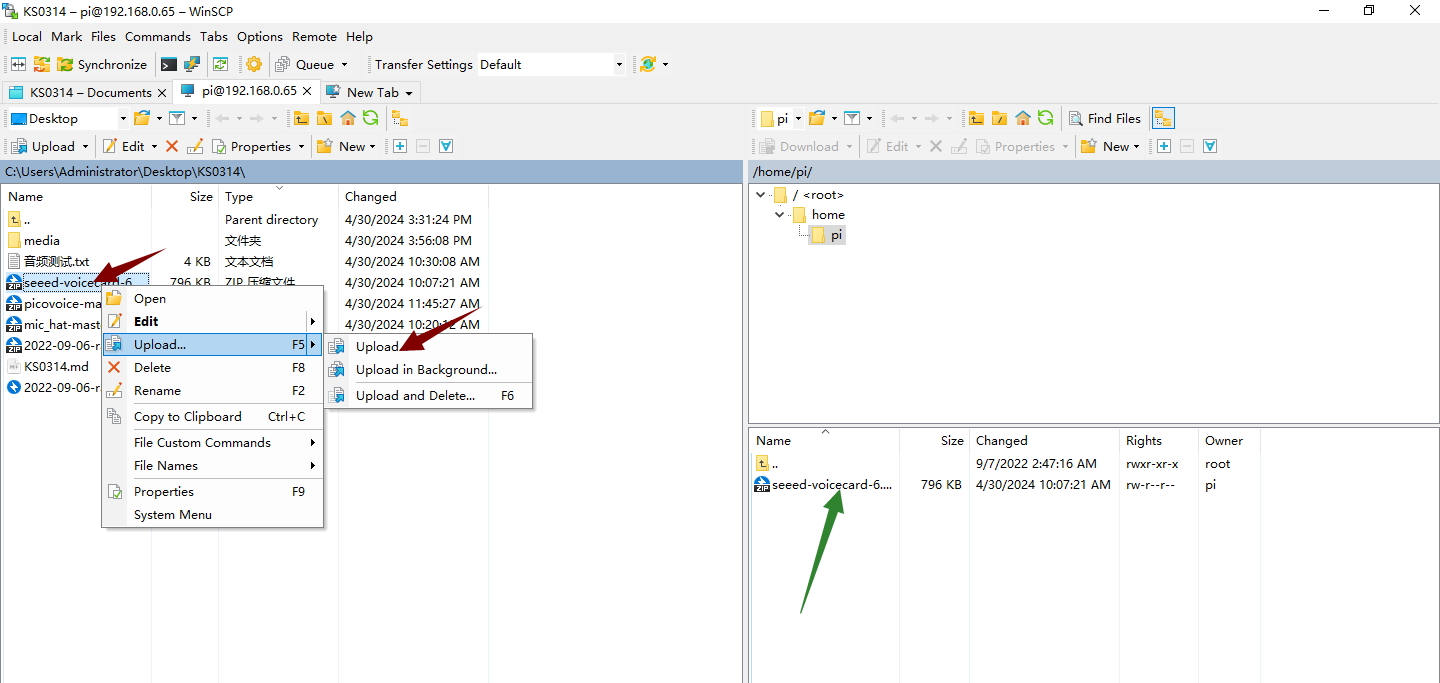

Then put the package downloaded into the RPI system using the *WinSCP*software.

image-20240430160710040

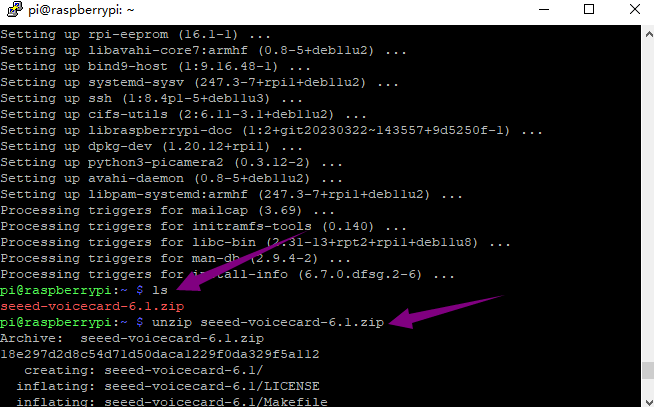

Enter the *unzip seeed-voicecard-6.1.zip* to unzip the package

image-20240430160924358

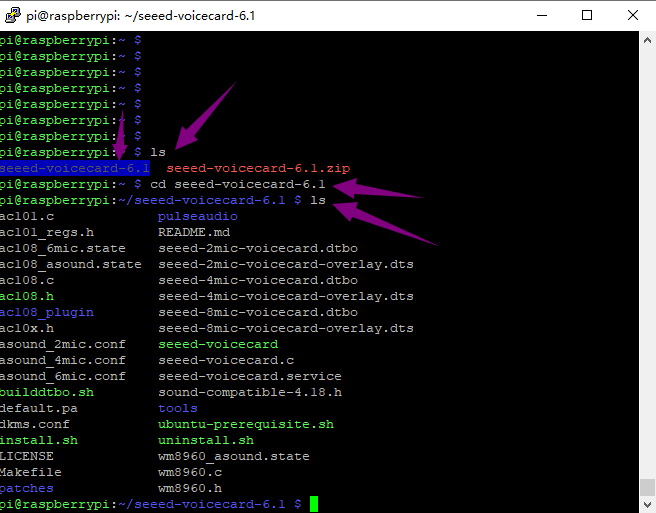

Then enter the *cd seeed-voicecard-6.1* into the folder

image-20240430161654923

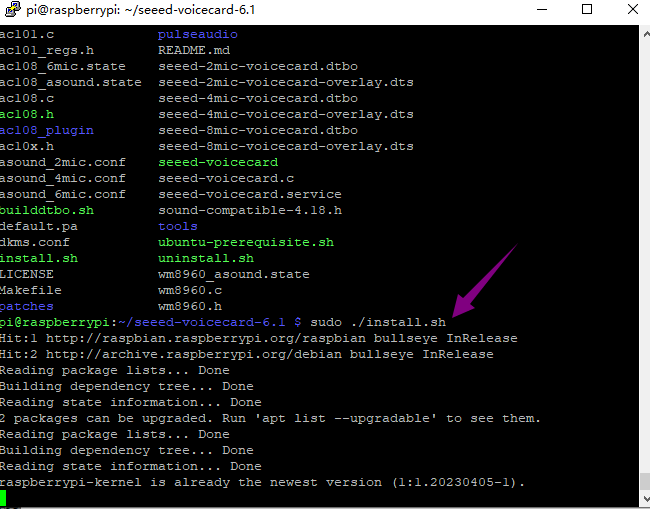

Enter the *sudo ./install.sh* to start to install the file.

image-20240430161812758

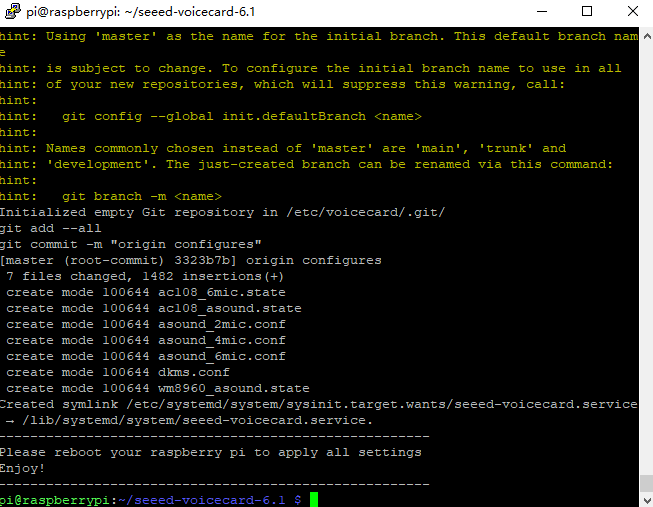

Installation finished and reboot.

image-20240430162311641unzip “

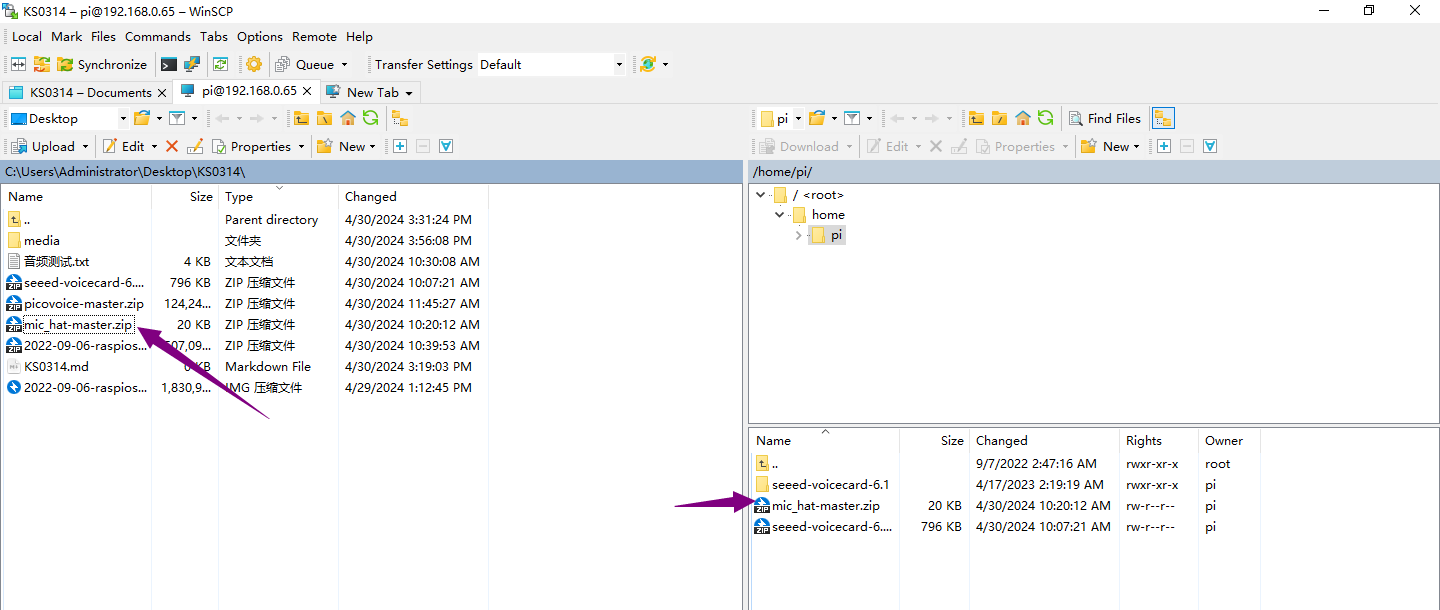

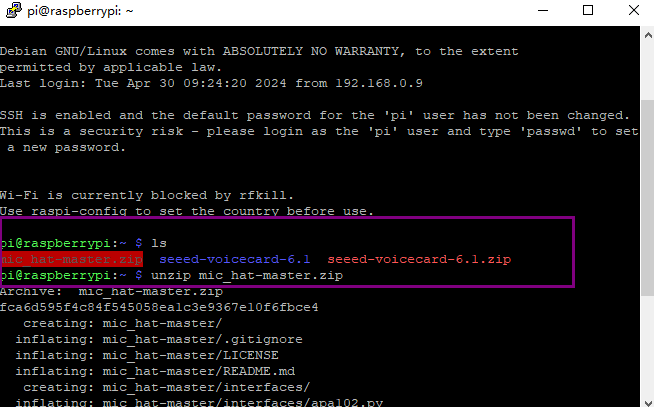

unzip “mic_hat-master.zip”, and refer to “seeed-voicecard-6.1.zip”

image-20240430162910888

image-20240430163029123

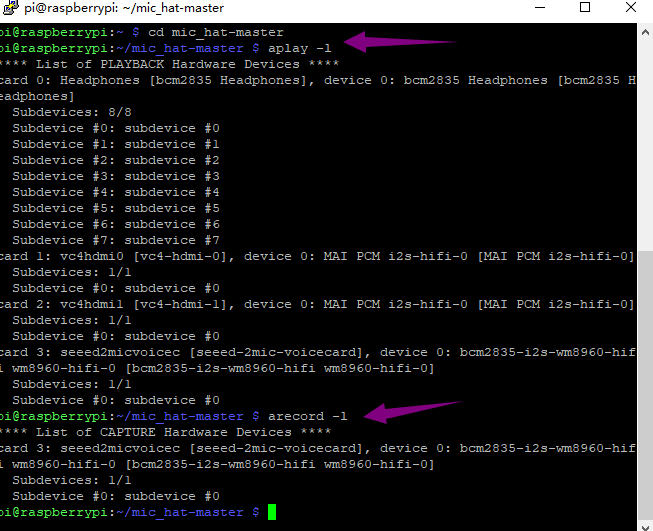

Go into the *mic_hat-master* folder, and enter *aplay-l*, check whether the voicecard name matches with the source code seeed-voicecard.

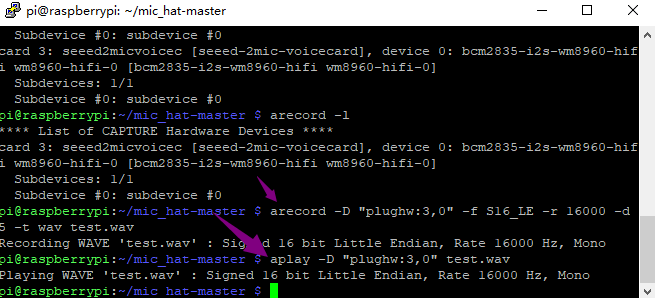

image-20240430163349271image-20240430164105142Test, you will hear what you say to the microphones(don’t forget to plug in an earphone or a speaker)

arecord -D "plughw:3,0" -f S16_LE -r 16000 -d 5 -t wav test.wav
aplay -D "plughw:3,0" test.wav

image-20240430164403006

Note: “plughw:3,0” is the recording(or playback device number) , depending on your system this number may differ (for example on Raspberry Pi 0 it will be 0, since it doesn’t have audio jack) We can find it via “arecord -l” and “aplay -l”.

Test the 3 LEDs on the shield.

All the Python scripts, mentioned in the examples below can be found inside this repository. To install the necessary dependencies, from mic_hat repository folder, run

sudo apt-get install portaudio19-dev libatlas-base-dev

image-20240430165101664

APA102 LEDs

Each on-board APA102 LED has an additional driver chip. The driver chip takes care of receiving the desired color via its input lines, and then holding this color until a new command is received.

python3 interfaces/pixels.py

User Button

There is an on-board User Button, which is connected to GPIO17. Now we will try to detect it with python and RPi.GPIO.

Execute the following code from mic_hat folder repository, which you cloned at Step 4.

python3 interfaces/button.py

It should display “on” when you press the button:

python3 button.py

Output like

image-20240430170015581
