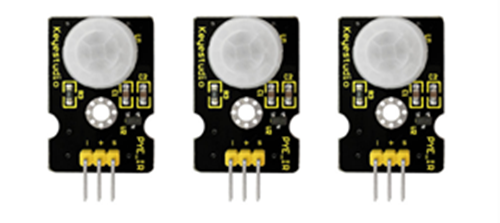

KS0335 Keyestudio PIR Motion Sensor 3PCS

1. Introduction

The Pyroelectric infrared motion sensor can detect infrared signals from a moving person or moving animal, and output switching signals. It can be applied to a variety of occasions to detect the movement of human body. Conventional pyroelectric infrared sensors are much more bigger, with complex circuit and lower reliability.

Now we launch this new pyroelectric infrared motion sensor, specially designed for Arduino. This sensor integrates an integrated digital pyroelectric infrared sensor, and the connection pins. It features higher reliability, lower power consumption and simpler peripheral circuit.

2. Features

  • smaller size and light weight

  • higher reliability

  • lower power consumption

  • simpler peripheral circuit

3. Parameters

  • Input Voltage: 3.3 ~ 5V, Maximum6V.

  • Working Current: 15uA

  • Working Temperature: -20 ~ 85 ℃

  • Output Voltage: High 3V, Low 0V

  • Output Delay Time (High Level): About 2.3 to 3 Seconds

  • Detection Angle: 100°

  • Detection Distance: 3-4 meters

  • Pin Limit Current: 100mA

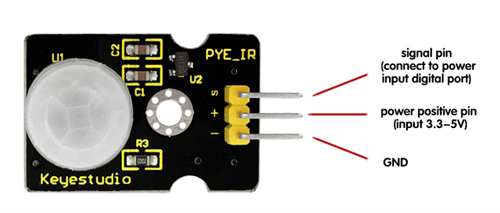

4. Pinout

5. Wire it Up

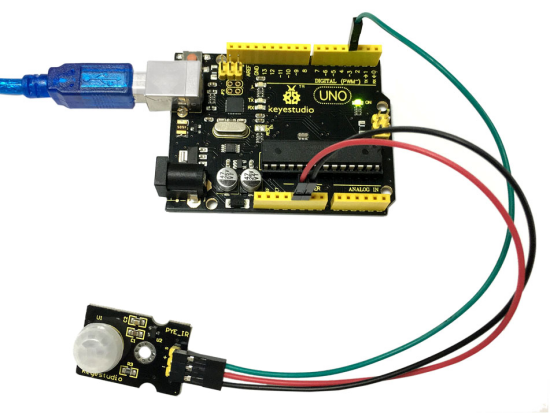

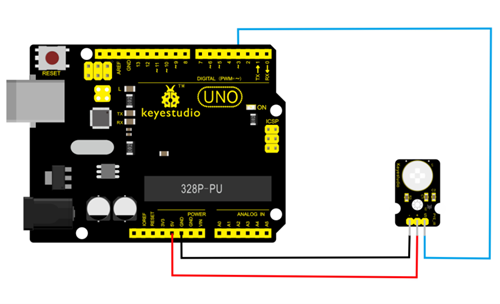

Connect the S pin of module to Digital 3 of UNO board, connect the negative pin to GND port, positive pin to 5V port.

6. Sample Code

Download code : Code

byte sensorPin = 3;
byte indicator = 13;

void setup()
{
  pinMode(sensorPin,INPUT);
  pinMode(indicator,OUTPUT);
  Serial.begin(9600);
}

void loop()
{
  byte state = digitalRead(sensorPin);
  digitalWrite(indicator,state);
  if(state == 1)Serial.println("Somebody is in this area!");
  else if(state == 0)Serial.println("No one!");
  delay(500);
}

7. Example Result

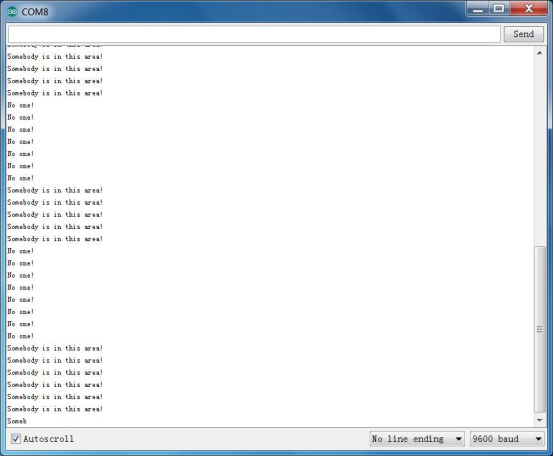

Done wiring and powered up, upload well the code, if the sensor detects someone moving nearby, D13 indicator on UNO board will light up, and “Somebody is in this area!” is displayed on the serial monitor.

If no movement, D13 indicator on UNO board not lights, and “No one!” is displayed on the serial monitor.

8. Extension

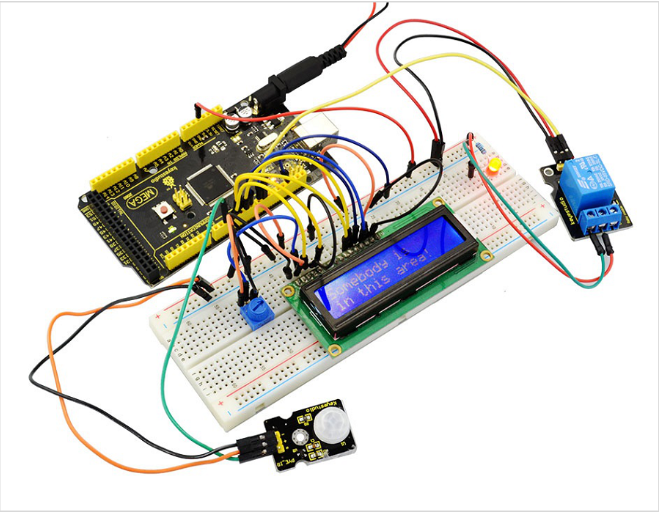

Try to add a 1602LCD, relay module and other to show the data you measured.

9. Packaging Included

Keyestudio PIR Motion Sensor * 3PCS
