1. Product introduction

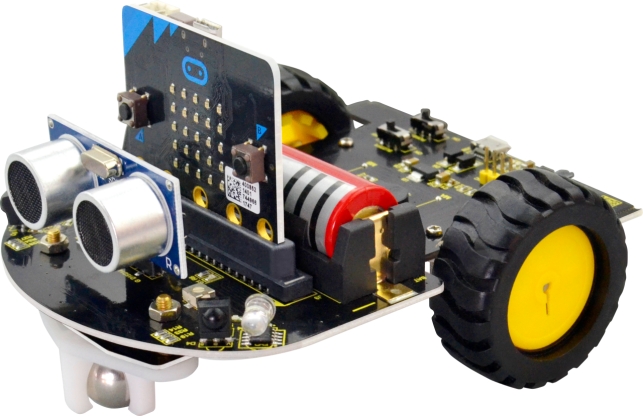

KS0356 keyestudio Micro:bit Mini Smart Robot Car
1.1 Product Description
Here comes the educational robot based on Micro:bit programming. Micro: bit is an ARM structure microcontroller designed by BBC. It is only half size of a credit card, onboard comes with Bluetooth, accelerometer, compass, three buttons, 5x5 LED matrix, mainly used for teens programming education.
The Micro:bit Mini Smart Robot Car integrates ultrasonic and infrared obstacle avoidance as well as line following. Also comes with a passive buzzer for playing music. Moreover, supply the power by 18650 batteries, supporting charge when run out of power. You will be able to adjust the motor speed.
This micro:bit robot is a perfect toy for kids to start learning robotics. The plug-and-play allow children to quickly learn graphic programming in entertaining, nurturing children’s interest in science and logical thinking.
Note: we adopt V1.5 micro:bit in the whole tutorial, but our tutorial is also compatible with the latest version micro:bit. When doing experiment with latest micro:bit, you need to transfer code into Makecode online editor first, save code again then download it to micro:bit.
1.2 Specifications
Voltage: 4.2-5.5V
Current: USB power supply or power supply with a capacity greater than or equal to 1A
Maximum power: maximum output power is 5W
Operating temperature range: 0-50 degrees Celsius
Dimensions: 120 * 90.7mm
Environmental attributes: ROHS
1.3 Packing List
No. |
Item |
Quantity |
Picture |
|---|---|---|---|
1 |
Micro:bit main board |
1 |
|
2 |
keyestudio Micro:bit smart robot shield (Black and Eco-friendly) |
1 |
|
3 |
Keyestudio line tracking sensor (Black and Eco-friendly) |
1 |
|
4 |
HC-SR04 ultrasonic sensor |
1 |
|
5 |
JST PH2.0MM-5PIN double-head cable length 55MM |
1 |
|
6 |
W420 steel universal wheel |
1 |
|
7 |
18650 red battery 3500mah (self prepare) |
1 |
|
8 |
N20 motor wheel |
2 |
|
9 |
M3 Nickel plated nut |
2 |
|
10 |
Single pass M3*6mm+6mm hex copper pillar |
2 |
|
11 |
M3*6MM round-head screw |
2 |
|
12 |
yellow-black handle 3*40MM phillips screwdriver |
1 |
|
13 |

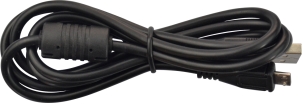

USB cable |
1 |
|
