KS0419 keyestudio micro:bit Tactile Button Module

1. Description

This keyestudio tactile button module is fully compatible with micro:bit control board. It mainly uses a button element, which is a digital signal output device.

When using, connect the module to micro:bit control board using Crocodile clip line.

There are total 6 rings on the module. Note that two G rings, two V rings and two S rings are connected. G for ground; V for 3V; S for signal pin(0 1 2).

When press the button, the signal end of micro:bit main board will input HIGH level signal.

2. Technical Parameters

• Working voltage: DC 3.0-3.3V

• Output Signal: Digital

• Dimensions: 31mm * 27mm * 6.5mm

• Weight: 1.8g

• Environmental attributes: ROHS

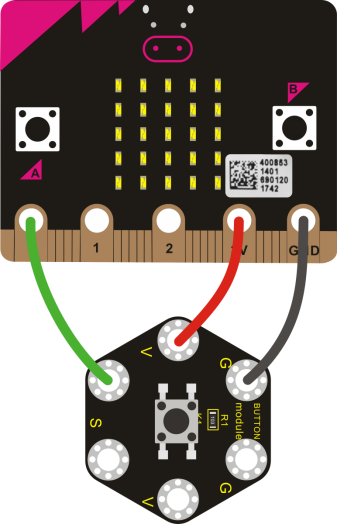

3. Connection Diagram

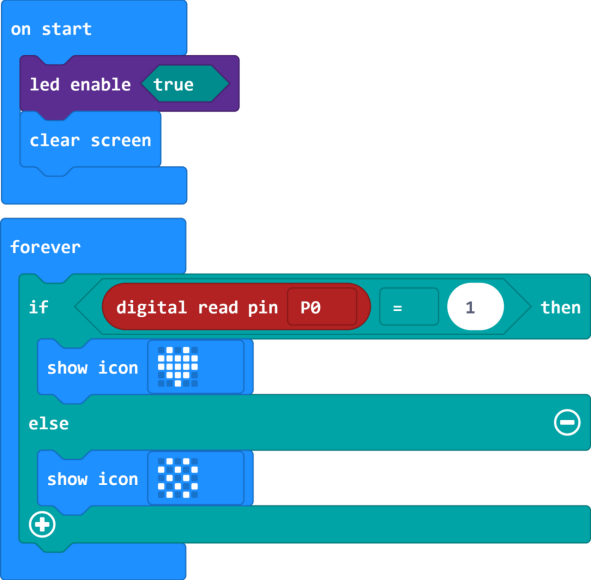

4. Source Code

Download code : Code

5. Example Result

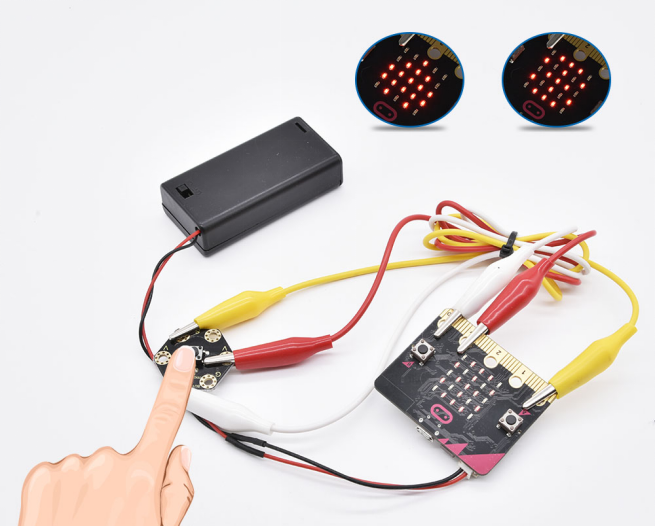

Connect well the module, then send the source code to the micro:bit main board. Powered on, press the button, the micro:bit main board will show icons.
