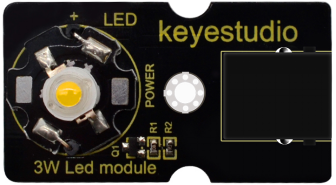

KS0439 EASY Plug 3W LED Module

1. Overview

This is a high power LED module. The main function is to turn on or off a plugin LED. It has features of supper bright and high power, and is compatible with EASY plug Control board V2.0.

For easy wiring, the module’s 3 pins are integrated into a crystal socket, so you are able to connect the 3W LED module to the control board using only a RJ11 cable for communication.

Special Note:

The sensor/module is equipped with the RJ11 6P6C interface, compatible with keyestudio EASY plug Control Board with RJ11 6P6C interface.

If you have other control boards that also equip with the RJ11 6P6C interface but has different internal line sequence, CANNOT use compatibly with keyestudio EASY plug sensor/module.

2. Technical Details

Operating voltage: DC 3.3-5V
Interface: EASY plug (RJ11 6P6 connector)
Emitting color: yellow
Recommended use current: 600－700ma
Luminance: 200－220LM
Input signal: digital signal
Dimensions: 49mm * 27mm * 18mm
Weight: 7.7g

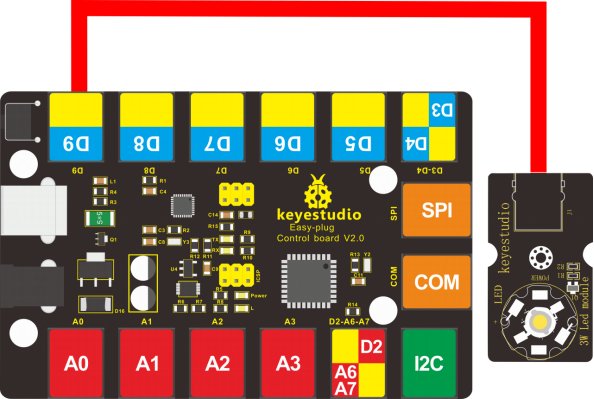

3. Hookup Guide

4. Test Code

Download code: Code

int led = 9;

void setup()
{
  // initialize the digital pin as an output.
  pinMode(led, OUTPUT);
}

// the loop routine runs over and over again forever:
void loop()
{
  digitalWrite(led, HIGH);   // turn the LED on (HIGH is the voltage level)
  delay(1000);               // wait for a second
  digitalWrite(led, LOW);    // turn the LED off by making the voltage LOW
  delay(1000);               // wait for a second
}

5. Test Result

After code is uploaded successfully, the 3W LED module will flash on for 1 second, then off for 1 second, alternately and circularly.
