KS0450 Keyestudio Vibration Motor Module (Black and Eco-friendly)

1. Overview

The keyestudio vibration motor module facilitates the conversion of electrical signals to mechanical vibration.

It mainly uses a high quality, high standard vibration motor.

We can directly control the motor vibration using the digital pin of Arduino microcontroller - HIGH level for triggering; LOW for breaking. Or control the vibration intensity of the motor by Arduino PWM pins.

This module is suitable for the vibration-sensitive interactive creations, wearable smart device and so on.

The module comes with a 3mm fixing hole, easy to fix it to other devices.

2. Technical Details

• Operating voltage: DC 5V

• Operating current: 35mA

• Max power: 0.5W

• Operating temperature range: -25℃ to 65℃

• Interface: 3pin of 2.54mm pitch

• Fixed hole diameter: 3mm

• Dimensions: 34mm * 19mm * 6mm

• Weight: 3.2g

• Environmental properties: ROHS

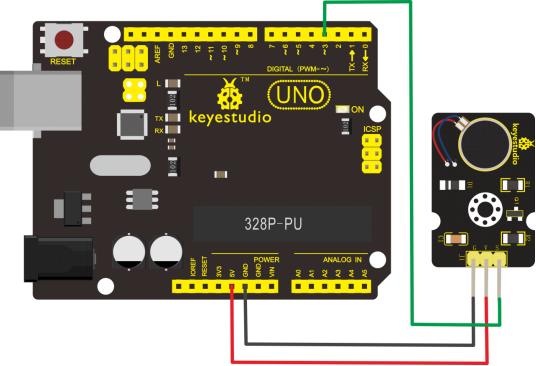

3. Hookup Guide

4. Test Code

Download code : Code

#define ZD 3

void setup()
{
    // put your setup code here, to run once:
	pinMode(ZD,OUTPUT);
}

void loop()
{
   // put your main code here, to run repeatedly:
   analogWrite(ZD,200);
   delay(5000);
   analogWrite(ZD,0);
   delay(1000);
   analogWrite(ZD,100);
   delay(5000);
   analogWrite(ZD,0);
   delay(1000);
}

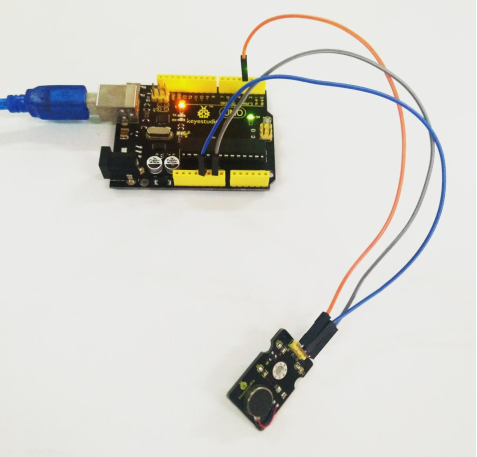

5. Result

Done uploading the code, the vibration motor on the keyestudio module will first strongly vibrate for 5 seconds, stop for 1 second, and weakly vibrate for 5 seconds, then stop for 1 second, alternately and circularly.
