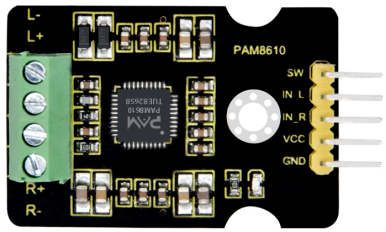

KS0452 Keyestudio PAM8610 Digital 2x10W Dual Channel Stereo Amplifier Module

1. Description

When we are in audio DIY, because the initial sound is not loud, we generally add a power amplifier module to amplify the sound.

Here we will introduce a power amplifier module - Keyestudio PAM8610 digital 2x10W dual channel stereo amplifier module. This module mainly uses the PAM8610 chip, and its gain is 32dB. It outputs two-channel stereo with power up to 10W+10W.

The module comes with a positioning hole with a diameter of 3mm, convenient to fix to other equipment.

2. Technical Details

  • Input Voltage：DC 7-15V

  • 10W@10%THD 1 Channel Output into a 8Ω Load at 13V

  • Low Noise: -90dB

  • Efficiency：greater than 90%

  • Gain 32dB

  • With Shutdown/Mute/Fade Function

  • Over Current, Thermal and Short-Circuit Protection

  • Low THD+N（0.1%）

  • Low Quiescent Current

  • Pop noise suppression

  • Interface：5pin（pitch 2.54mm） ; 4pin green terminal block（pitch 3.5mm）

  • Fixing hole diameter：3mm

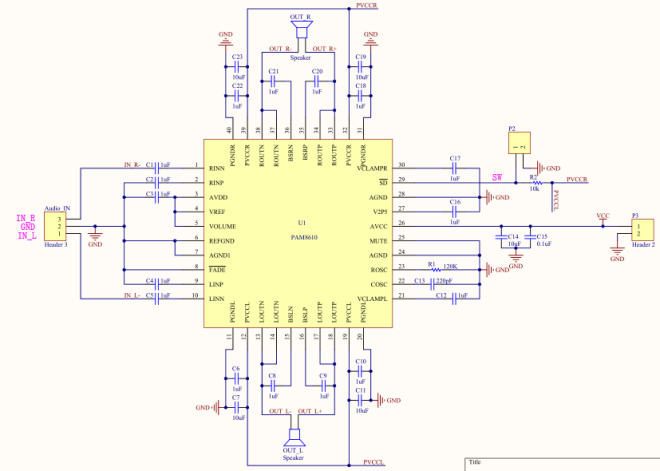

3. Schematics
