KS0453 Keyestudio 3-channel Line Tracking Module

1. Description

In the smart car DIY process, we often use a line tracking sensor to make the smart car follow a line.

The keyestudio 3-channel line tracking module actually is an infrared sensor. The component used is a TCRT5000 infrared tube.

The working principle is to use the different reflectivity of infrared light to color, converting the strength of the reflected signal into a current signal.

During the detection, black is active at HIGH level, and white is active at LOW. The detection height is 0-3 cm.

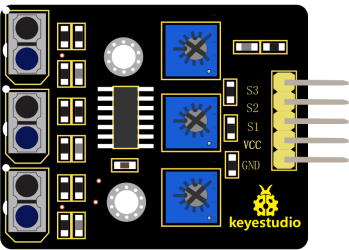

We have integrated three groups of TCRT5000 infrared tubes on a single board, convenient for wiring and control.

Turn the adjustable trimpot to adjust the module’s sensitivity. The module comes with two 3mm positioning holes for mounting on other devices.

Note: before testing, turn the potentiometer to adjust the sensitivity. The sensitivity is the best when make the LED at the threshold point between ON and OFF.

2. Technical Parameters

Operating voltage: DC 3.3-5V
Detection height: 0—3cm
Interface: 5pin of 2.54mm pitch
Positioning hole diameter: 3mm
Dimensions: 42mm * 31mm * 7mm
Weight: 6.6g
Environment attribute: ROHS

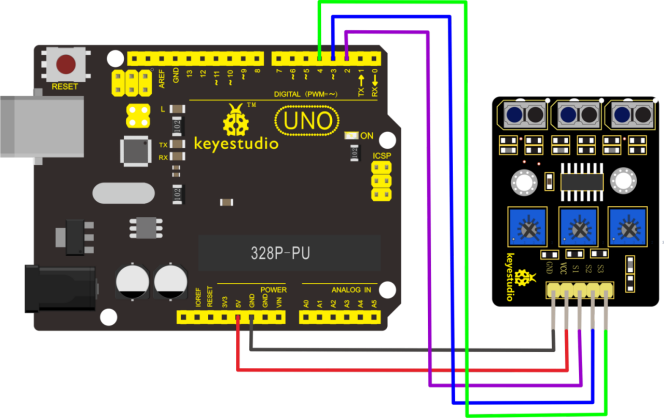

3. Wiring Diagram

4. Test Code

Download code : Code

int sensor1 = 2;
int sensor2 = 3;
int sensor3 = 4;
int val1;
int val2;
int val3;

void setup()
{
  Serial.begin(9600);
  pinMode(sensor1, INPUT); // set sensor to input mode
  pinMode(sensor2, INPUT); // set sensor to input mode
  pinMode(sensor2, INPUT); // set sensor to input mode
}

void loop()
{
  val1=digitalRead(sensor1);
  Serial.print("val1:");
  Serial.print(val1);
  val2=digitalRead(sensor2);
  Serial.print("  val2:");
  Serial.print(val2);
  val3=digitalRead(sensor3);
  Serial.print("  val3:");
  Serial.println(val3);
  delay(200);
}

5. Test Result

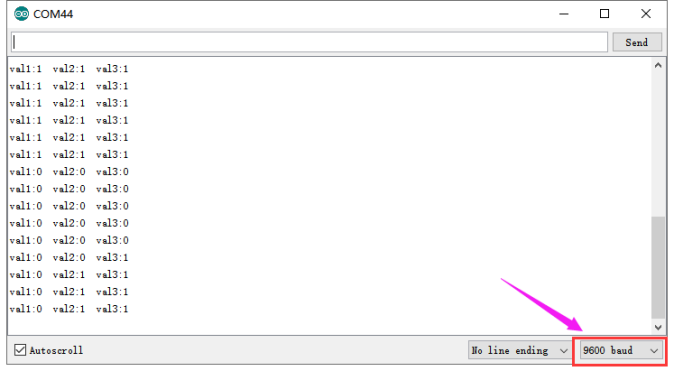

Done uploading the code to control board, open the serial monitor and set the baud rate to 9600.

When the tacking module detects black line, output 1; detecting white line, output 0. As figure shown below.
