KS0468 Keyestudio Storage Bag Micro:bit Main board Kit
1. Description

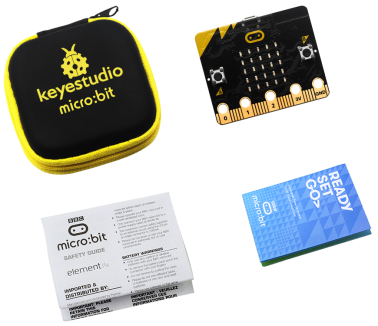

Micro: bit is an ARM-based microcontroller designed by BBC. Consisting of onboard Bluetooth, accelerometer, electronic compass, three buttons, 5 x 5 LED dot matrix, it is only half the size of credit card and mainly used for programming education for teenagers. In order to carry it conveniently, we put a micro: bit control board and two manuals in storage bag. The storage bag is light and beautiful.
2. Parameters
Working voltage: 3.3V
Micro USB program burning / power supply port: 5V
PH2.0 power interface: 3-3.3V
Alligator clip interface: 3-3.3V
Detection range: 0-3.3V
Processor: ARM Cortex-M0 microprocessor
Working temperature: 0-85 ℃
Interface Type:
Micro USB program burning / power supply port
PH2.0 3V power supply port
4mm crocodile clip interface * 5
Gold Finger Interface * 20
Size: 43 * 52mm
Packing size: 105 * 55 * 30mm
Weight: 8.6g
3. Features
Support PXT graphical programming interface developed by Microsoft
Support Windows, macos, ios, Android and other operating systems
The programming environment is based on WEB services, no need to download additional compilers
Burn and simulate program via USB on PC terminal
Wirelessly burn and simulate program on the mobile terminal via Bluetooth
Support multiple communication programming languages including javasript, python, mbed c

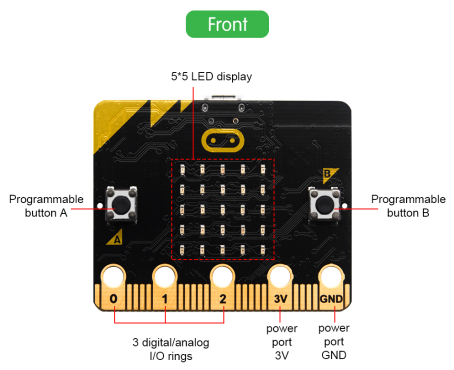

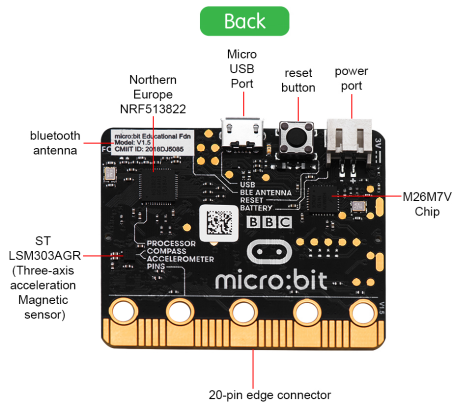

4. On board Resources
Nordic nRF51822 Bluetooth low energy chip: 16MHz ARM Cortex-M0, 256KB Flash, 16KB RAM
NXP KL26Z microcontroller: 48MHz ARM Cortex-M0 +, support USB2.0 OTG
ST LSM303AGR three-axis acceleration sensor and magnetic sensor
form a 5 * 5 matrix with 25 red LEDs
3 mechanical buttons, 2 user buttons and 1 reset button included.
Micro USB power supply / download interface, power interface, 23pin gold finger signal interface, including SPI, PWM, I2C and support 17 GPIO

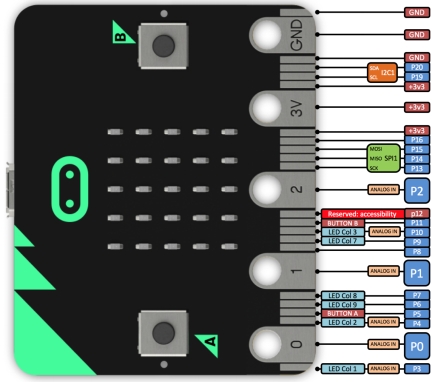

5. Pins Diagram
6. Pins Function
GPIO |
P0，P1，P2，P3，P4，P5，P6，P7，P8，P9，P10，P11，P12，P13，P14，P15，P16，P19，P20 |
|---|---|
ADC/DAC |
P0，P1，P2，P3，P4，P10 |
I2C |
P19(SCL)，P20(SDA) |
SPI |
P13(SCK)，P14(MISO)，P15(MOSI) |
PWM |
P0，P1，P2，P3，P4，P10 |
Occupied |
P3(LED Col1)，P4(LED Col2)，P5(BUTTON A)，P6(LED Col9)，P7(LED Col8)，P9(LED Col7)， P10(LED Col3)，P11(Button B) |
7. Difference between micro: bit and Arduino
micro : bit |
Arduino |
|
|---|---|---|
User group |
Elementary school above |
Senior student above |
Processor |
32-bit ARM Cortex-M0 |
8-bit microcontroller ATmage328P |
Size |
43mm*52mm |
53mm*69mm |
Programming environment |
online programming tool + local programming tool |
local programming tool（Arduino IDE） |
Programming language |
Graphical programming；MicroPython; Scratch |
C;C++ |
Onboard components |
I/O singal port；Bluetooth; accelerometer;Electronic compass; button; LED dot matrix || I/O signal port；LED |
|
External device |
Alligator clip; shield |
Jumper wire, shield |
Compatible voltage |
3V |
3V-5V |
