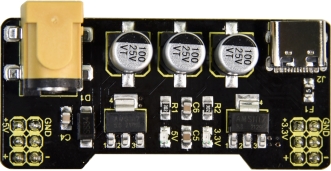

KS0534 Keyestudio Power Module Type-C for Breadboard

1. Description

This module can provide power(3.3V, 5V )to breadboards. It has a DC2.1 input (DC7-12V) and a USB Type-C power input.

2. Parameters

• Input Voltage：7-12V； Type C USB: 5V

• Current: 3.3V: 500mA(Max); 5V: 500mA(Max)

• Maximum Power: 2.5W

• Operating temperature: -10°C - +50°C

• Size: 53mmx26.3mm

• Environmental attributes: ROHS

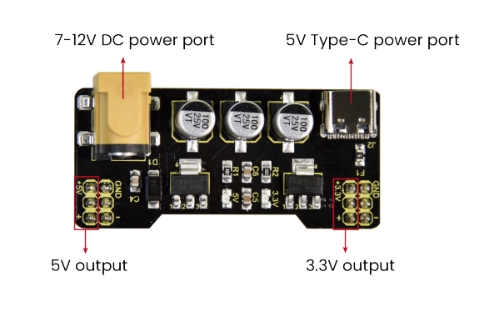

3. Pin out

4. Schematic Diagram
