SMP0099 Raspberry Pi Pico Board

1. Description

Raspberry Pi Pico is a tiny, fast, and versatile board built using RP2040, a brand new microcontroller chip designed by Raspberry Pi in the UK. Designed by Raspberry Pi, RP2040 features a dual-core Arm Cortex-M0+ processor with 264KB internal RAM and support for up to 16MB of off-chip Flash. A wide range of flexible I/O options includes I2C, SPI, and — uniquely — Programmable I/O (PIO).

It also has more than 26 multi-functional GPIO pins.

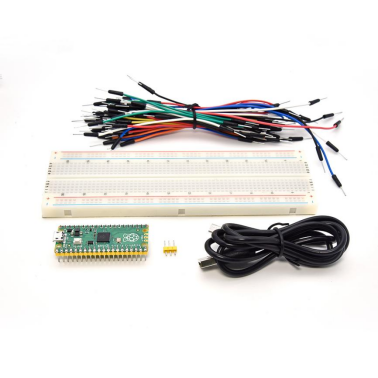

For beginners or experts, they can program by C/C++ SDK or MicroPython. Detailed tutorials are provided, too. A vast of pins are soldered for better connection, and a USB cable is used for uploading test code.

2. Performance

RP2040 microcontroller chip designed by Raspberry Pi
Dual-core ARM Cortex M0+ processor, flexible clock running up to 133 MHz
264kB of SRAM, and 2MB of on-board Flash memory
Castellated module allows soldering direct to carrier boards
USB 1.1 Host and device support
Low-power sleep and dormant modes
Drag & drop programming using mass storage over USB
26 multi-function GPIO pins
2×SPI, 2×I2C, 2×UART, 3×12-bit ADC, 16×controllable PWM channels
Accurate on-chip clock and timer
Temperature sensor
Accelerated floating point libraries on-chip
8×Programmable IO (PIO) state machines for custom peripheral support

SMP0099 Raspberry Pi Pico Board

1. Description

2. Performance

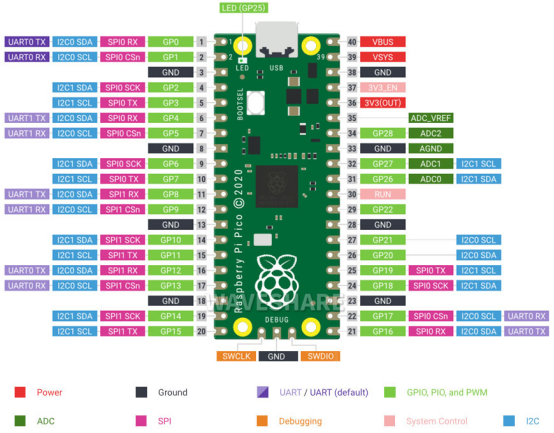

3. Pin out

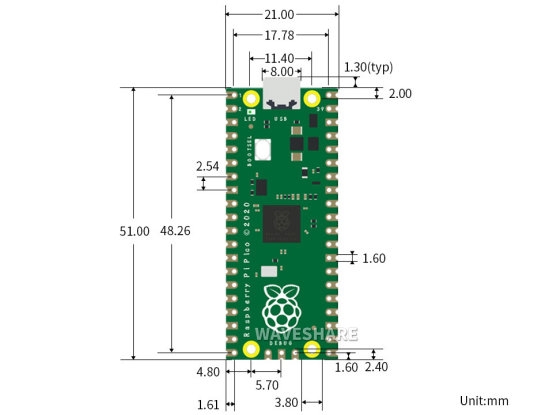

4. Dimension
