Project 13 Digital Tilt Sensor

1.Introduction

Tilt Sensor is a digital tilt switch. It can be used as a simple tilt sensor. Simply plug it to our IO/Sensor shield; you can make amazing interactive projects. With dedicated sensor shield and Arduino, you can achieve interesting and interactive work.

2.Specification

• Supply Voltage: 3.3V to 5V

• Interface: Digital

• Size: 30*20mm

• Weight: 3g

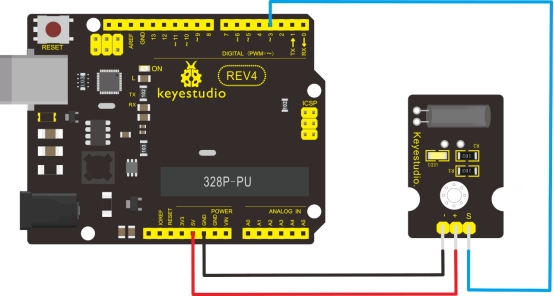

3.Connection Diagram

4.Sample Code

int ledPin = 13;                // Connect LED to pin 13
int switcher = 3;                 // Connect Tilt sensor to Pin3

void setup()
{
  pinMode(ledPin, OUTPUT);      // Set digital pin 13 to output mode
  pinMode(switcher, INPUT);       // Set digital pin 3 to input mode
}

void loop()
{

   if(digitalRead(switcher)==HIGH) //Read sensor value
   {
        digitalWrite(ledPin, HIGH);   // Turn on LED when the sensor is tilted
   }
   else
   {
        digitalWrite(ledPin, LOW);    // Turn off LED when the sensor is not triggered
   }
}
