Project 16 RGB LED module

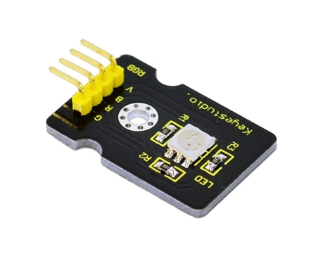

1.Introduction This is a full-color LED module, which contains 3 basic colors－red, green and blue. They can be seen as separate LED lights. After program, we can turn them on and off by sequence. We can also use PWM analog output to mix the three colors to generate different colors.

2.Specification

• Color: red, green and blue

• Brightness: High

• Voltage: 5V

• Input: digital level

• Size: 30 * 20mm

• Weight: 3g

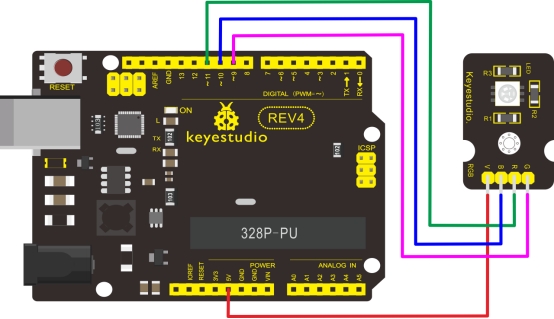

3.Connection Diagram

4.Sample program

int redpin = 11; //select the pin for the red LED
int bluepin =10; // select the pin for the blue LED
int greenpin =9;// select the pin for the green LED
int val;

void setup()
{
  pinMode(redpin, OUTPUT);
  pinMode(bluepin, OUTPUT);
  pinMode(greenpin, OUTPUT);
}

void loop()
{
  for(val=255; val>0; val--)
  {
    analogWrite(11, val);
    analogWrite(10, 255-val);
    analogWrite(9, 128-val);
    delay(1);
  }
  for(val=0; val<255; val++)
  {
    analogWrite(11, val);
    analogWrite(10, 255-val);
    analogWrite(9, 128-val);
    delay(1);
  }
}
