Project 19 Line Tracking Sensor

1.Introduction This Line Tracking Sensor can detect white lines in black and black lines in white. The single line-tracking signal provides a stable output signal TTL for a more accurate and more stable line. Multi-channel option can be easily achieved by installing required line-tracking robot sensors.

2.Specification

• Power supply: +5V

• Operating current: <10mA

• Operating temperature range: 0°C ~ + 50°C

• Output interface: 3-wire interface (1 - signal, 2 - power, 3 - power supply negative)

• Output Level: TTL level

• Size: 41.7*10.7mm

• Weight: 3g

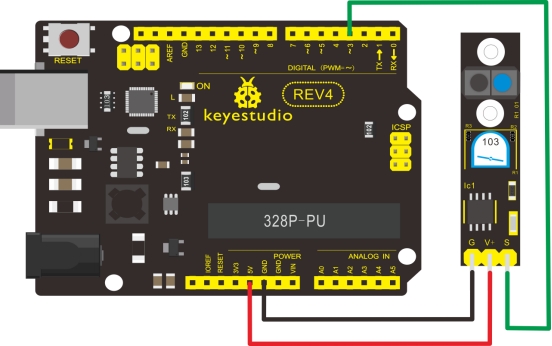

3.Connection Diagram

4.Sample Code

void setup()
{
   Serial.begin(9600);
}

void loop()
{
   Serial.println(digitalRead(3)); // print the data from the sensor
   delay(500);
}
