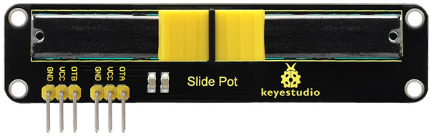

KS0279 keyestudio Slide Potentiometer Module for Arduino

1. Introduction

Keyestudio slide potentiometer module using high-quality sliding electrical appliance, has the performances of stability and reliability.

It is a dual analog output, and outputs 0-VCC analog voltage signal.

2. Specification

Voltage：3.3V、5V
Port：analog quantity
Resistance value：5K
Platform：Arduino、microcontrollers、ARM and other microcontrollers platform
Dimensions：90mm * 27mm * 30mm
Weight：14.7g

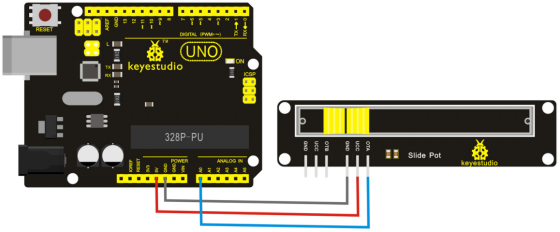

3. Connection Diagram

4. Sample Code

Download code : Code

void setup()
{
  // initialize serial communication at 9600 bits per second:
  Serial.begin(9600);
}

// the loop routine runs over and over again forever:
void loop()
{
  // read the input on analog pin 0:
  int sensorValue = analogRead(A0);
  // print out the value you read:
  Serial.println(sensorValue);
  delay(1);        // delay in between reads for stability
}

5. Test Result

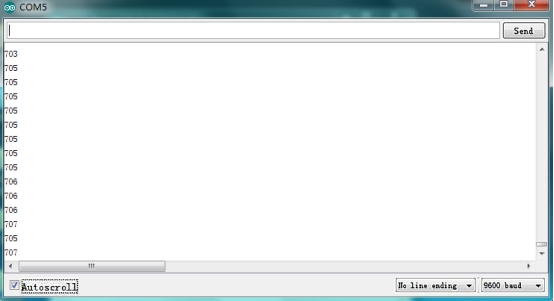

After connecting and burning the program, powered-on, open the serial monitor, and you can see the analog value of analog port A0, as the figure shown below.

When sliding the slide pole, the value ranges from 0 to 1023.
