KS0417 Keyestudio micro:bit 1W LED Module

1. Description

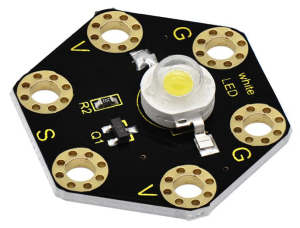

This LED module is fully compatible with micro:bit control board. It will emit the white light. The max operating current is 400mA; the maximum power is 1W.

When using, connect the LED module to micro:bit control board using Crocodile clip line.

There are total 6 rings on the module. Two G rings, two V rings and two S rings are separately connected.

When using, G ring for ground; V for 3V; S for signal pin (0 1 2). When signal end is HIGH, LED lights.

2. Technical Parameters

  • Working voltage: DC 3.0-3.3V

  • Working current: 400mA

  • Power: 1W

  • Light Color: white

  • Size: 31mm * 27mm * 8mm

  • Weight: 2.4g

  • Environmental attributes: ROHS

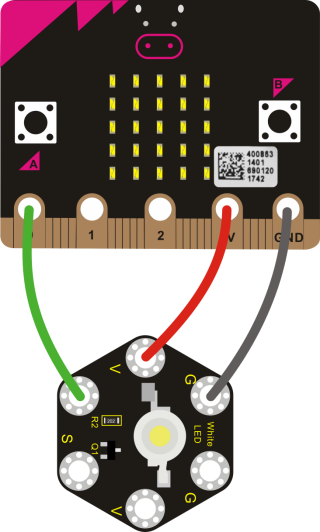

3. Connection Diagram

image-20260119091737996

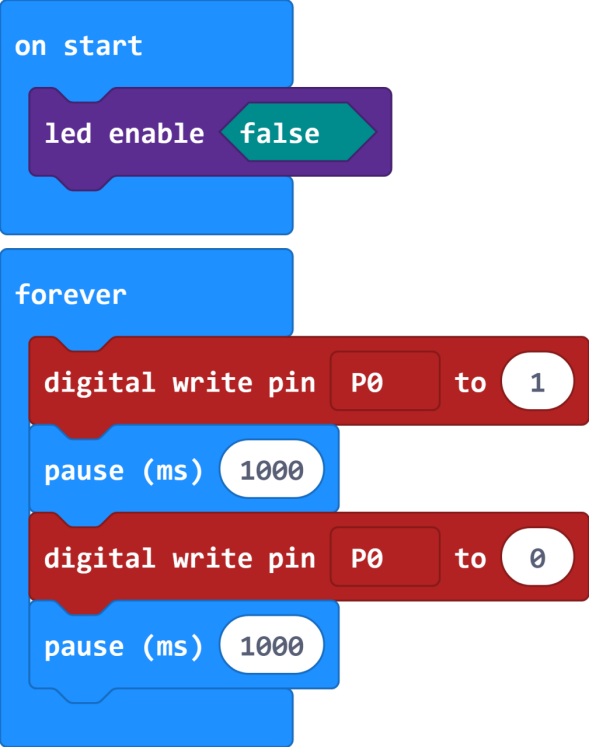

4.Source Code

Download code : Code

5.Example Result

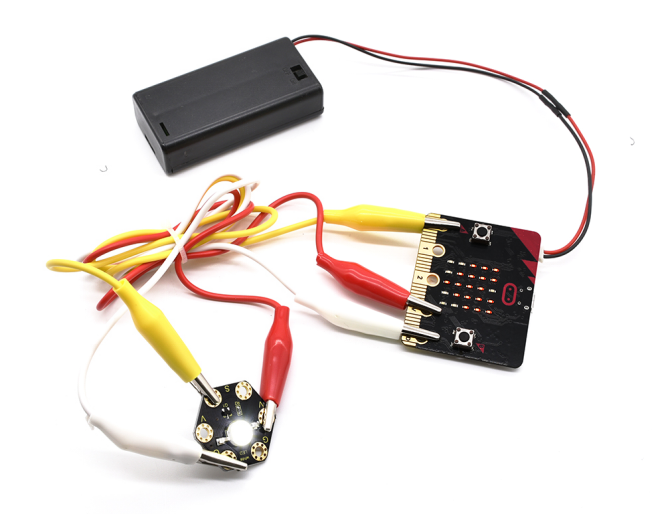

Connect well the module, then send the source code to the micro:bit main board. Powered on, the LED on the module should flash for one second, then off for one second, circularly and alternately.
