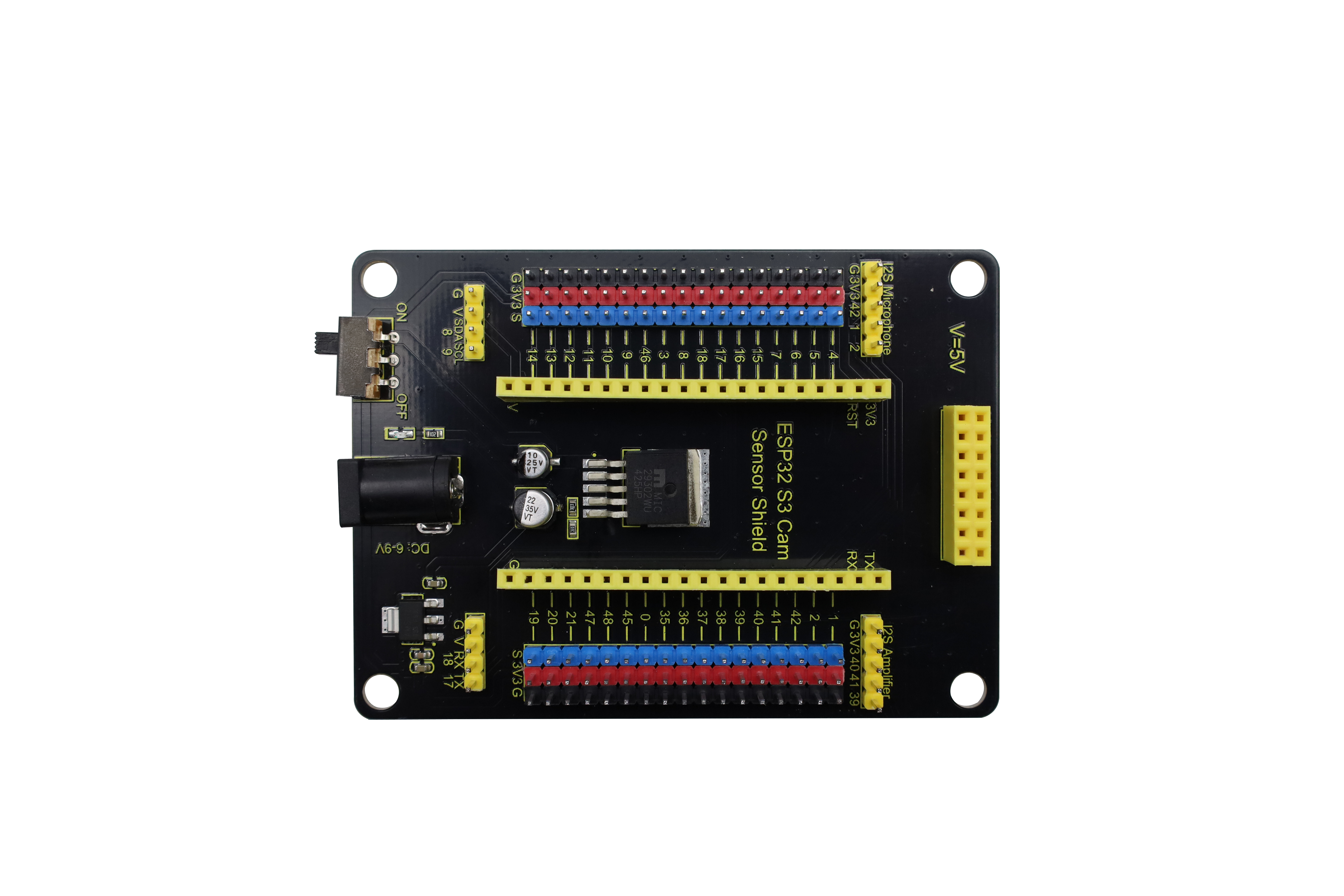

KS5037 Keyestudio ESP32 S3 Cam Sensor Shield


1. Introduction

The Keyestudio ESP32 S3 Cam Sensor Shield is an expansion board developed based on the S3 cam. It extends the pins of the S3 cam development board through a 2.54mm pin interface and includes interfaces for IIC, serial port, and a 1.54-inch color screen. The expansion board can be powered by a DC interface to supply a DC voltage of 6-9V. Additionally, a toggle switch is reserved for convenient control of power on/off. In terms of structure, it is equipped with four M4 positioning holes and is compatible with the size of Lego parts.

2. Parameters

  • Operating Voltage: DC 6~9V

  • Operating Current: 60mA (average)

  • Maximum Output Current: 5V/2A

  • Operating Temperature: -25℃~+65℃

  • Dimensions: 80mm * 120mm

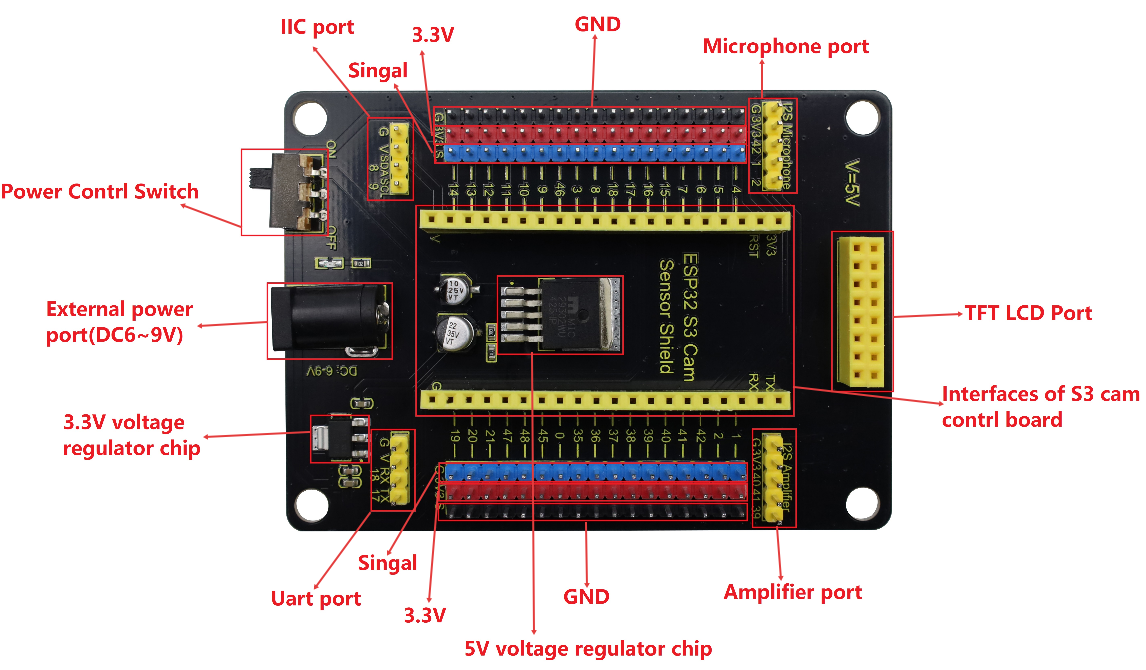

3. Pin-out

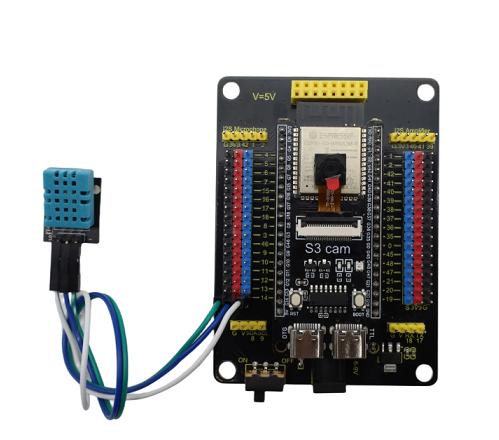

4. Wiring

For the S3 cam development board usage tutorial, you can refer to：MB0184

S3 cam shield

XHT11

G

GND

3V3

3V3

14

S


5. Arduino

For downloading the Arduino IDE, please refer to Arduino IDE (including the installation of the CH340 driver).

Download

#include <Bonezegei_DHT11.h>

Bonezegei_DHT11 dht(14);

void setup() {
  Serial.begin(115200);
  dht.begin();
}

void loop() {

  if (dht.getData()) {                         // get All data from DHT11
    float tempDeg = dht.getTemperature();      // return temperature in celsius
    float tempFar = dht.getTemperature(true);  // return temperature in fahrenheit if true celsius of false
    int hum = dht.getHumidity();               // return humidity
    String str  = "Temperature: ";
           str += tempDeg;
           str += "°C  ";
           str += tempFar;
           str += "°F  Humidity:";
           str += hum;
    Serial.println(str.c_str());
    //Serial.printf("Temperature: %0.1lf°C  %0.1lf°F Humidity:%d \n", tempDeg, tempFar, hum);
  }
  delay(2000);  //delay atleast 2 seconds for DHT11 to read tha data
}

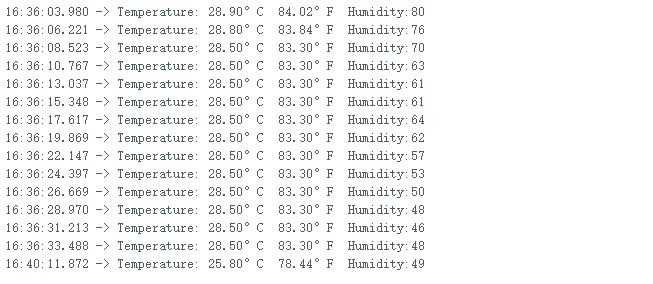

Test Results


6. The Don’ts

  1. Do not directly connect high-power modules or motors to the IO expansion ports.

  2. Do not connect voltages higher than DC 9V to the External Power Port.
