5.3 Color Block Following Car

5.3.1 Overview

In this project, we build a color block following car. Herein, the AI vision module locks a certain color block and detects its coordinates x and y, and width and height, and then it controls the car to move left, right, forward to track this color block.

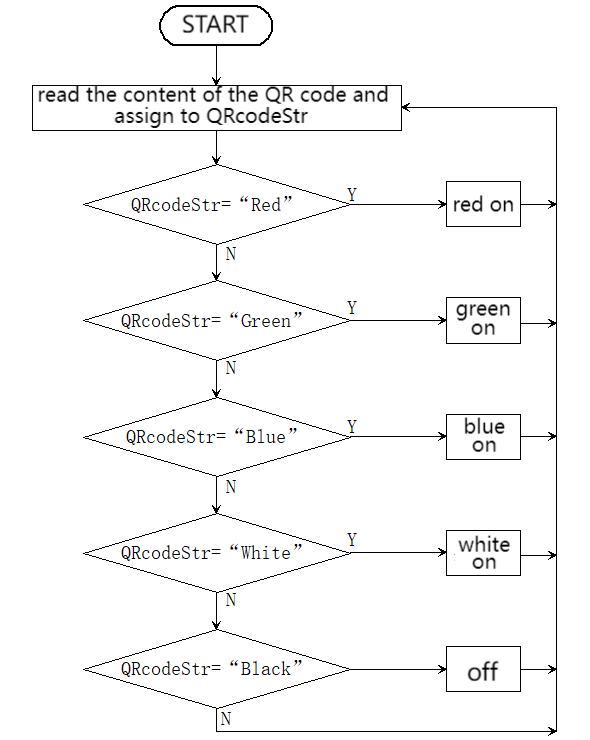

5.3.2 Code Flow

5.3.3 Test Code

from machine import I2C, Pin, PWM
import time
import random
from Sengo2 import *

# Initialize I2C (adjust the pins according to the actual wiring
i2c = I2C(0, scl=Pin(21), sda=Pin(20), freq=400000)  # Use the pins in the reference code

# Wait for the initialization of Sengo2 (important!)
time.sleep(3)

# Create a Sengo2 object
sentry = Sengo2()

# Start sensor
if sentry.begin(i2c) != SENTRY_OK:
    print("Sentry initialization failed!")
    while True: pass

# Set the color block detection parameters - only detect red and blue
sentry.SetParamNum(sengo2_vision_e.kVisionBlob, 1)  # Set 1 group of parameter

# Red parameter group
sentry.SetParam(
    sengo2_vision_e.kVisionBlob,
    [0, 0, 5, 5, color_label_e.kColorRed],  # Parameter format
    param_id=1
)

# Enable the color block detection function
if sentry.VisionBegin(sengo2_vision_e.kVisionBlob) == SENTRY_OK:
    print("Color block detection enabled")


# right wheel
pin1=Pin(14,Pin.OUT)
pin2=PWM(Pin(16))
pin2.freq(50)

# left wheel
pin3=Pin(15,Pin.OUT)
pin4=PWM(Pin(17))
pin4.freq(50)

# As a function of the car going forward.
def car_forward():
  pin1.value(0)
  pin2.duty_u16(20000)
  pin3.value(0)
  pin4.duty_u16(20000)

# As a function of the car going backwards.
def car_back():
  pin1.value(1)
  pin2.duty_u16(30000)
  pin3.value(1)
  pin4.duty_u16(30000)

# As a function of the car going left.
def car_left():
  pin1.value(0)
  pin2.duty_u16(5000)
  pin3.value(1)
  pin4.duty_u16(45000)
# As a function of the car going right.
def car_right():
  pin1.value(1)
  pin2.duty_u16(45000)
  pin3.value(0)
  pin4.duty_u16(5000)

# As a function of the car stopping.
def car_stop():
  pin1.value(0)
  pin2.duty_u16(0)
  pin3.value(0)
  pin4.duty_u16(0)


# loop
try:
    while True:
        # Obtain the number of detected color blocks
        obj_num = sentry.GetValue(sengo2_vision_e.kVisionBlob,sentry_obj_info_e.kStatus)

        if obj_num:
            # Obtain the coordinates and size
            x = sentry.GetValue(sengo2_vision_e.kVisionBlob,sentry_obj_info_e.kXValue,1)
            y = sentry.GetValue(sengo2_vision_e.kVisionBlob,sentry_obj_info_e.kYValue,1)
            w = sentry.GetValue(sengo2_vision_e.kVisionBlob,sentry_obj_info_e.kWidthValue,1)
            h = sentry.GetValue(sengo2_vision_e.kVisionBlob,sentry_obj_info_e.kHeightValue,1)
            if y >= 80:
                # the car moves backward
                car_back()
            elif x <= 20:
                # the car turns left
                car_left()
            elif x >= 80:
                # the car turns right
                car_right()
            elif w <= 15 and h <= 15:
                # the car moves forward
                car_forward()
            elif w >= 70 and h >= 70:
                # the car moves backward
                car_back()
            else:
                car_stop()
        else: car_stop()
        time.sleep(0.1)  # a short delay

except KeyboardInterrupt:
    sentry.VisionEnd(sengo2_vision_e.kVisionBlob)
    print("The program has stopped")

5.3.4 Test Result

After uploading the code, the AI vision module will detect the captured image to determine if there is a red block. If there is, it will control the movement of the car based on the x, y, w, and h values of this color block. For example, if the red block is close to the right side of the display, the car will turn right; if it is in the left, the car will turn left; and if it is at the lower part of display, the car will move backward. (Please use the color cards we provide.)
