Mount the AI Visual Module onto the KS3027 Car

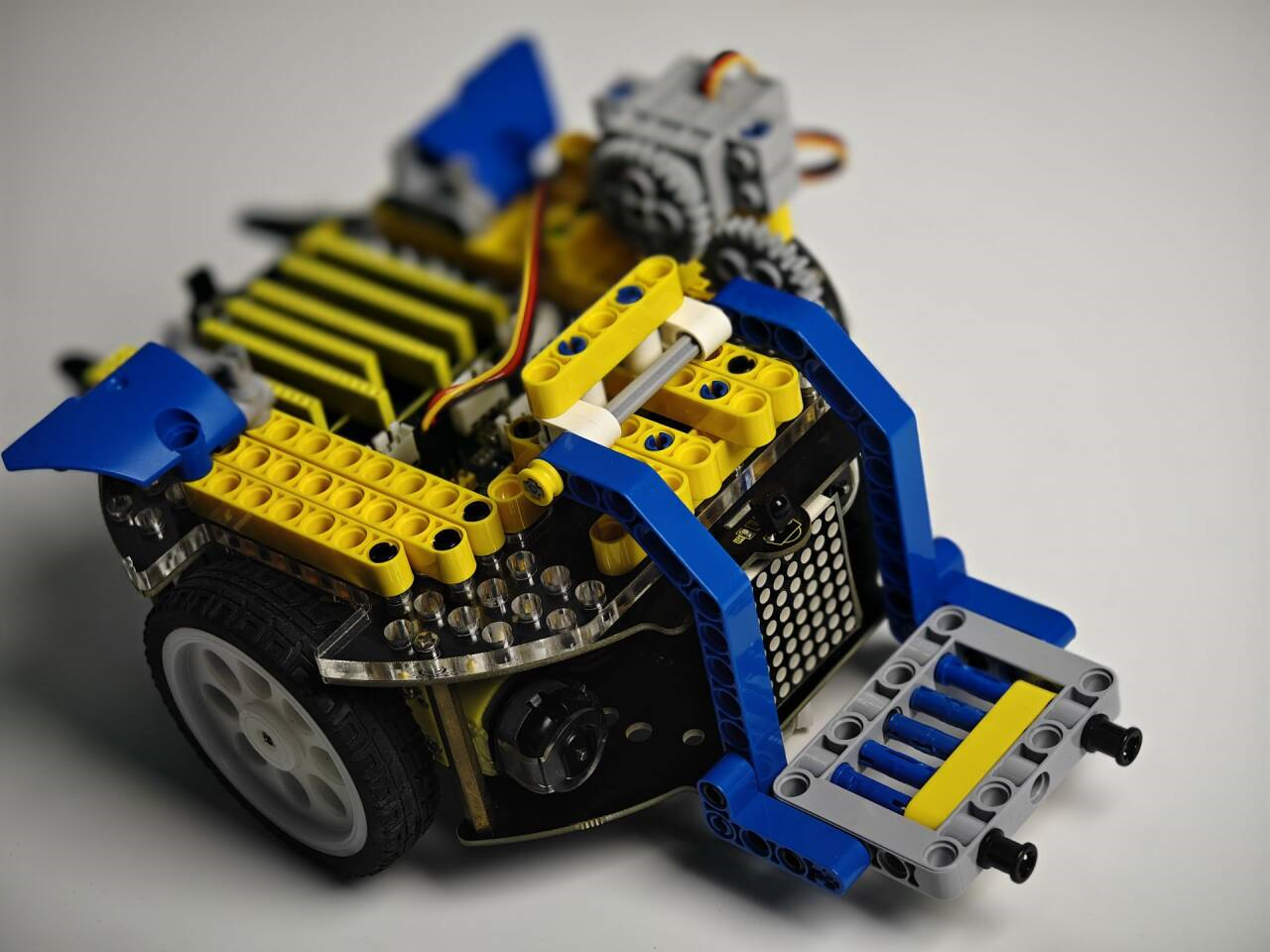

Here we demonstrate how to mount this module on the Handling Robot, a Lego mini car of our KS3027 product as shown below:

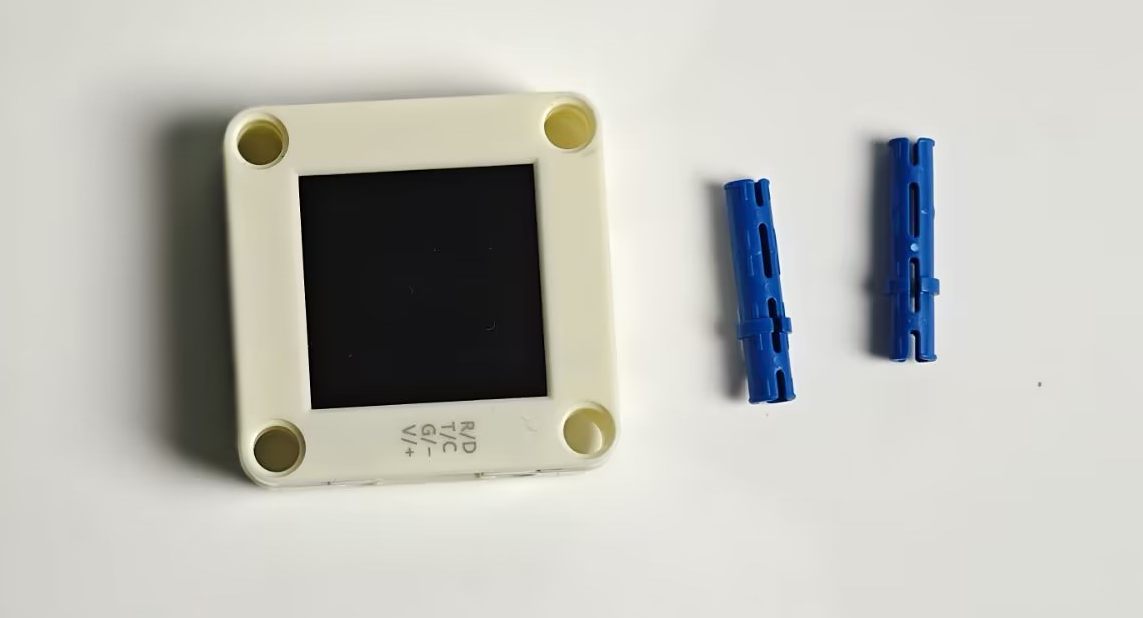

Get the visual module and Lego long pins ready:

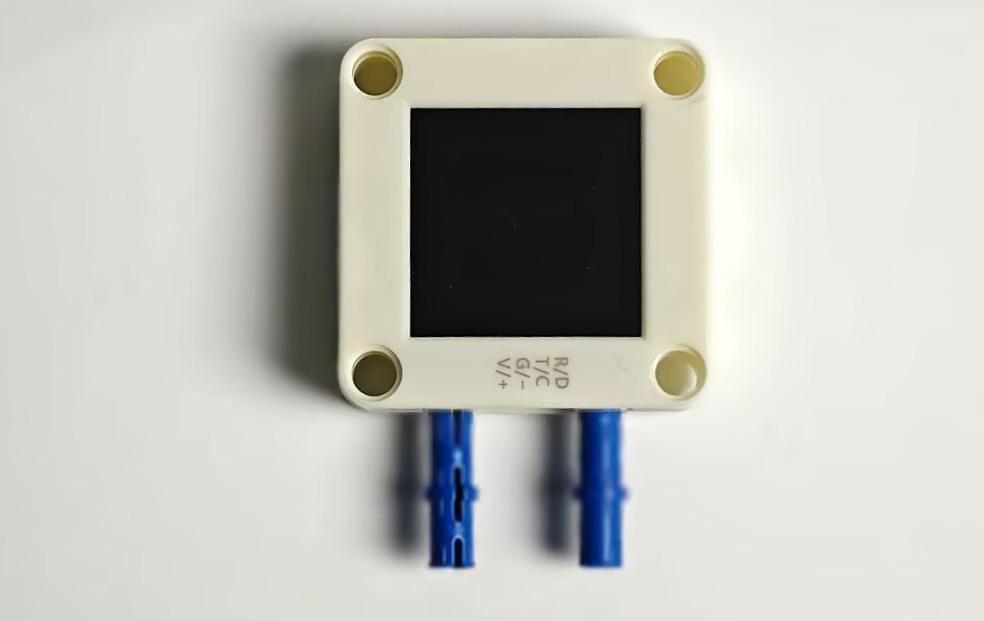

Insert the Lego pins into the Lego holes on both sides of the module interface.

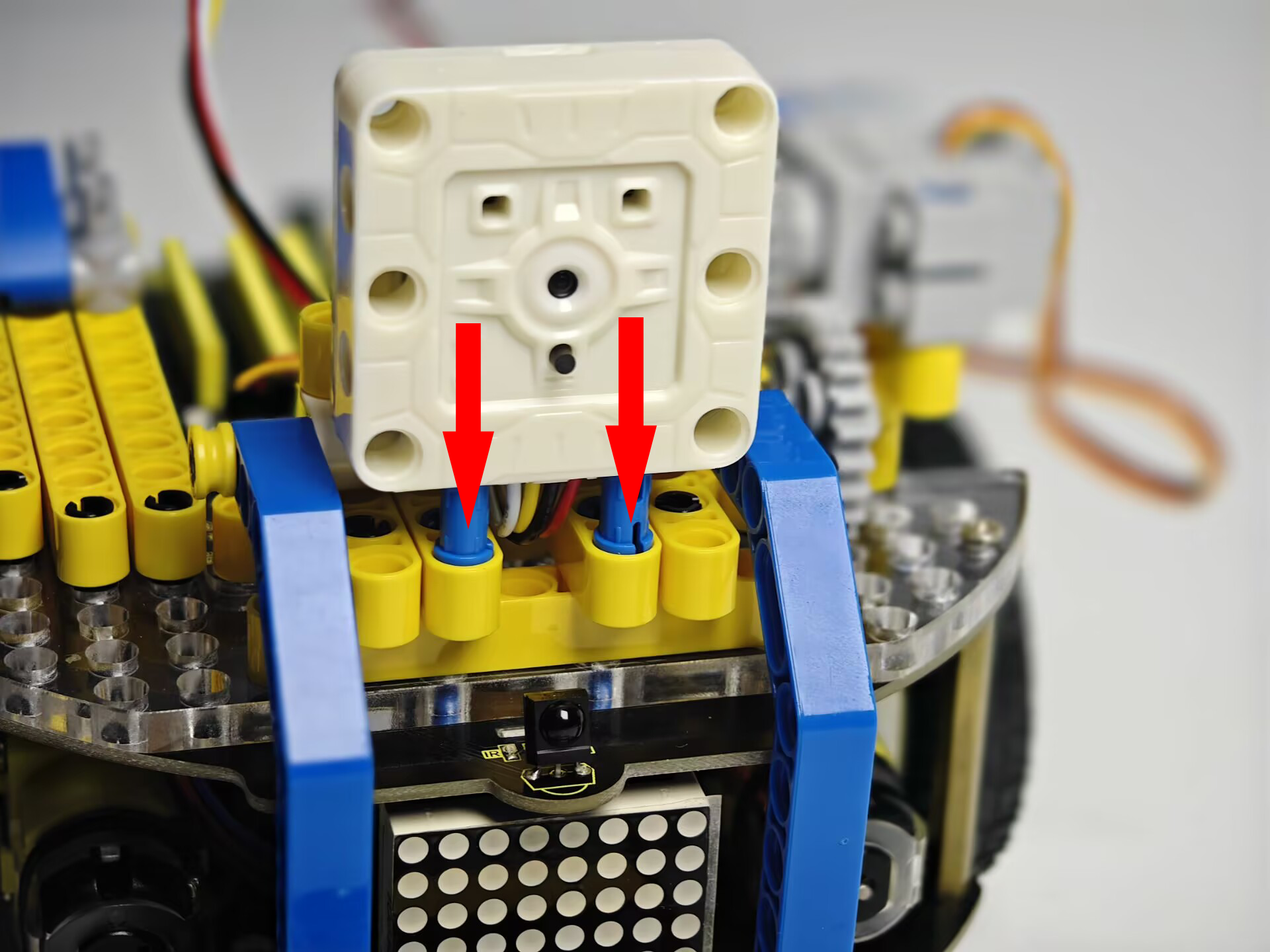

Pass the wires of the module through the Lego gap of the car for wiring.

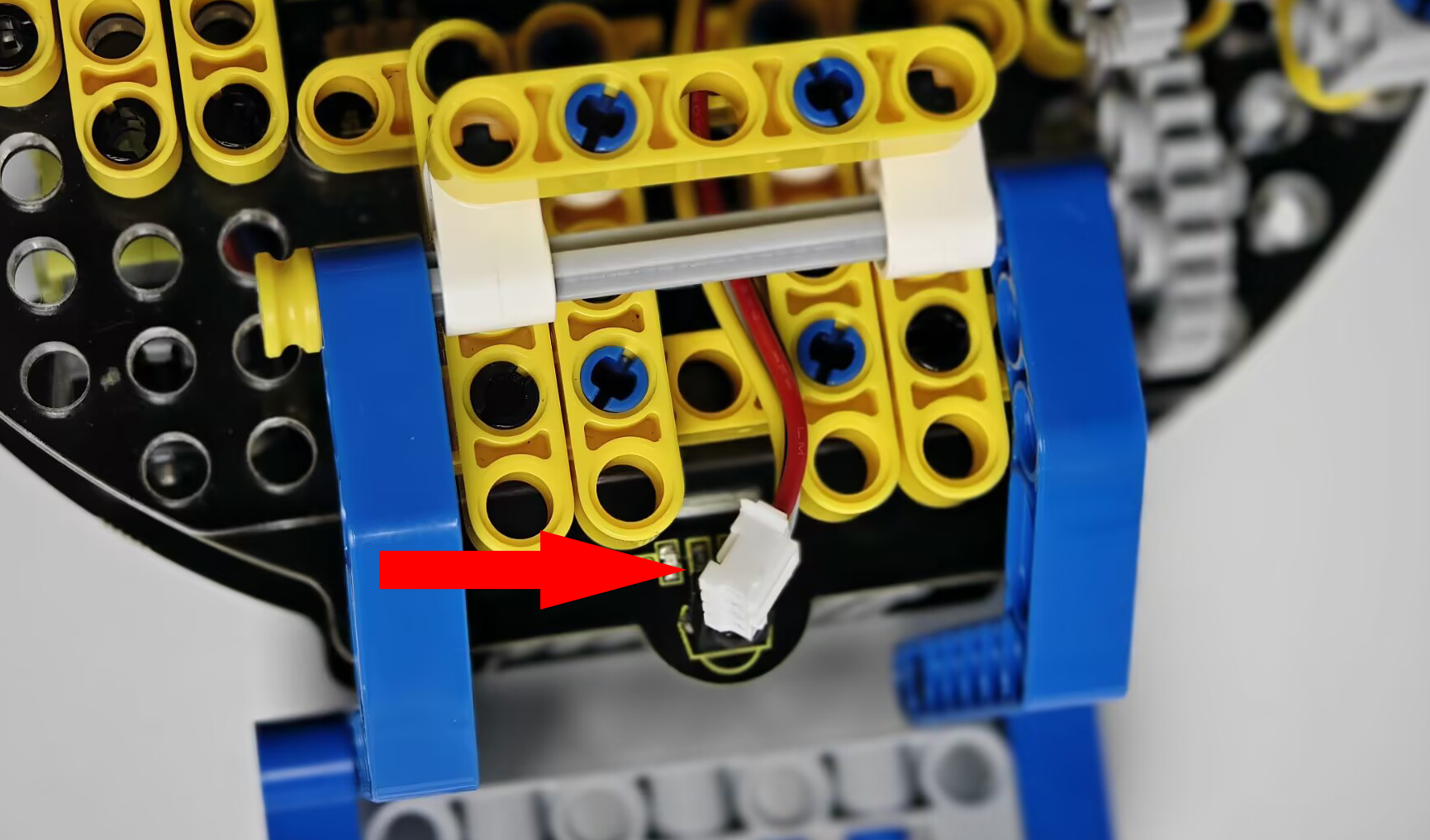

Connect the AI terminal to this module and then mount it to the car via Lego, as shown below:

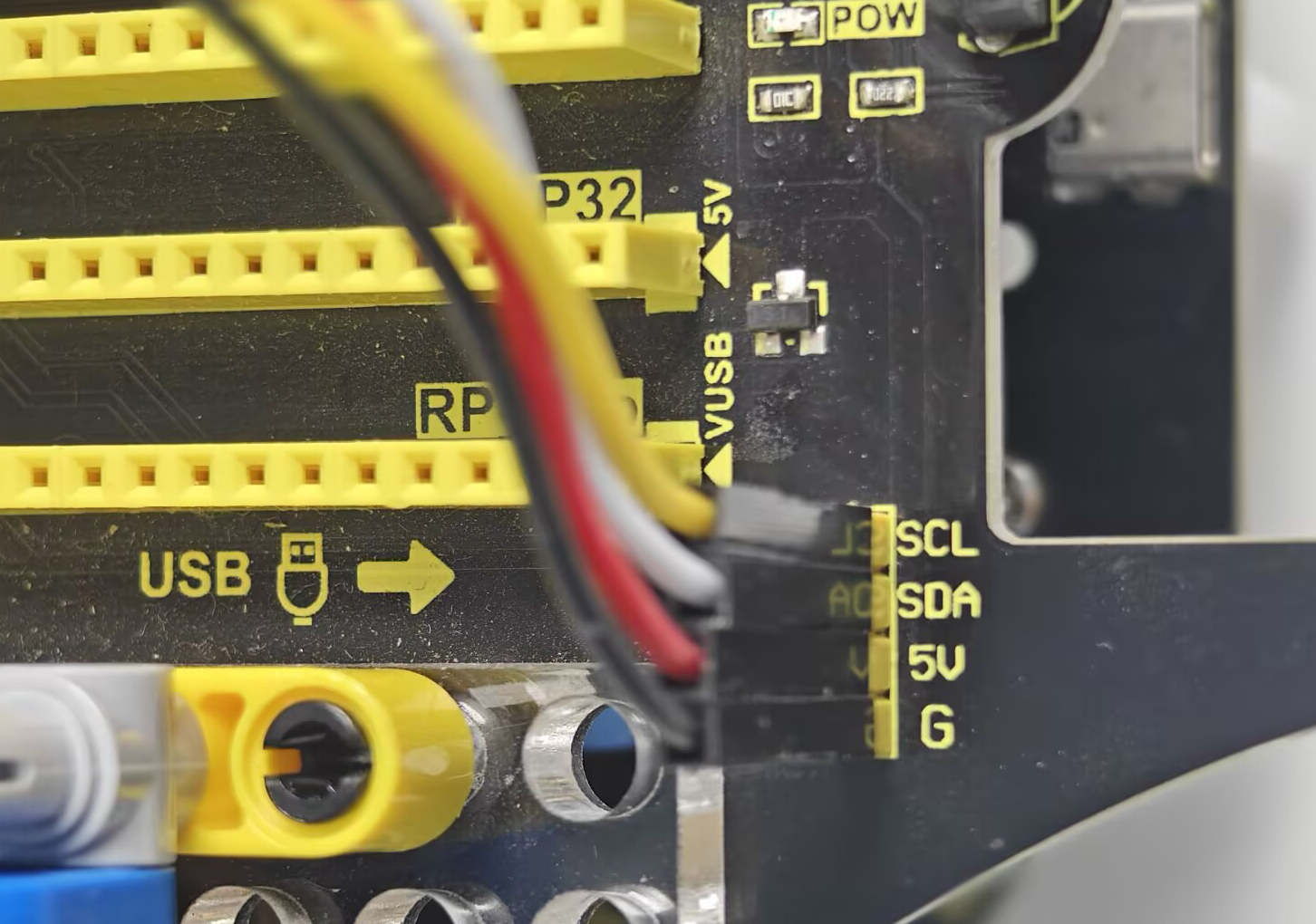

Finally, connect the wire to the I2C interface. Be careful not to connect the wires wrongly:
AI visual module |
Car interfaces |
|---|---|
T/C (yellow) |
SCL |
R/D (white) |
SDA |
V/+ (red) |
5V |
G/- (black) |
G |
