1. Product introduction

1.1 Overview:

This Smart Home Learning Kit based on the Arduino platform is newly rolled out by Keyestudio DIY Robot Co. Ltd.

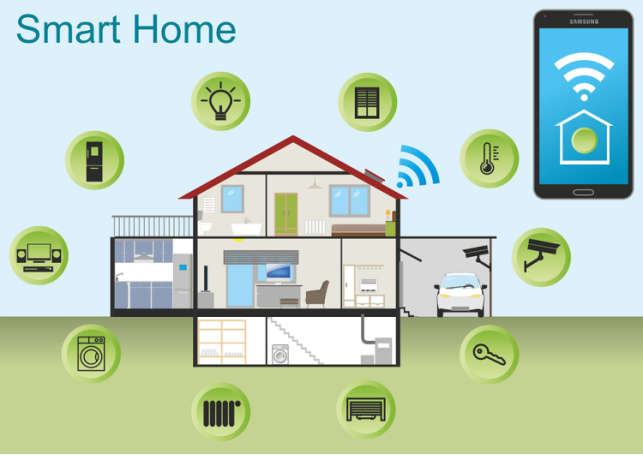

It simulates the real smart home and demonstrates the cozy and comfortable life for people.

In fact, the logic programming, an invisible hand, controls everything in smart home: it turns on the air conditioner, boots up the water heater, secures your home with an electronic lock, and sets your LED lights and smart curtains to turn on automatically when you get home. Meanwhile, the intelligent lighting system allows you to create a comfortable, tranquil atmosphere. Everything is finished by a remote control or your own cellphone.

As Bill Gates puts it, “In the near future, a house without a smart home system will be as unfashionable as a home without Internet access today.”

So, go ahead and get started; let’s build this amazing analog smart home.

1.2 Kit list

After getting this smart home kit, we need to make sure that there are not missing components.

#

Name

QTY


1

Keyestudio PLUS Control Board

1

2

Keyestudio Sensor Shield V 5.2

1

3

Wooden Board*10 T=3MM

1

image-20250423092526992

4

White LED Module

1

5

Yellow LED Module

1

6

Button Sensor

2

7

Photocell Sensor

1

8

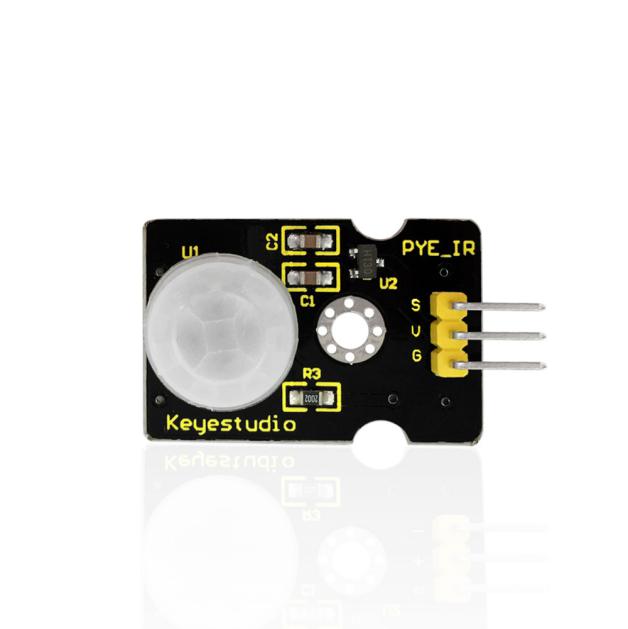

PIR Motion Sensor

1

9

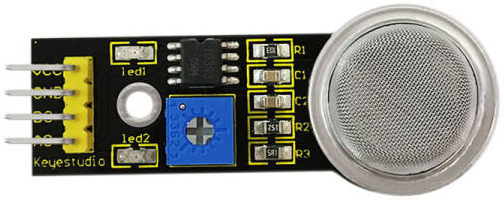

MQ-2 Gas Sensor

1

10

Relay Module

1

11

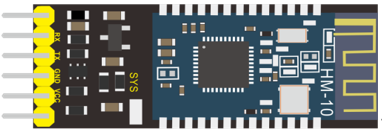

Bluetooth HM-10 Module

1

12

Passive Buzzer Sensor

1

13

Fan module

1

14

Steam Sensor

1

15

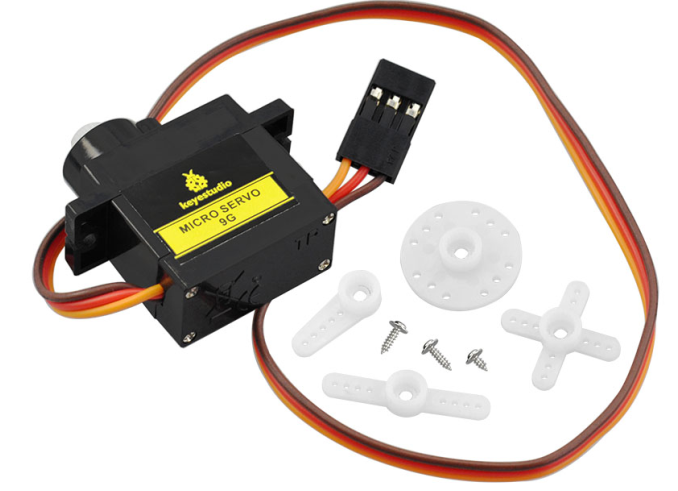

Servo Motor

2

16

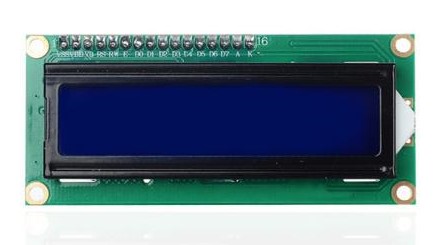

LCD1602 Display Module

1

17

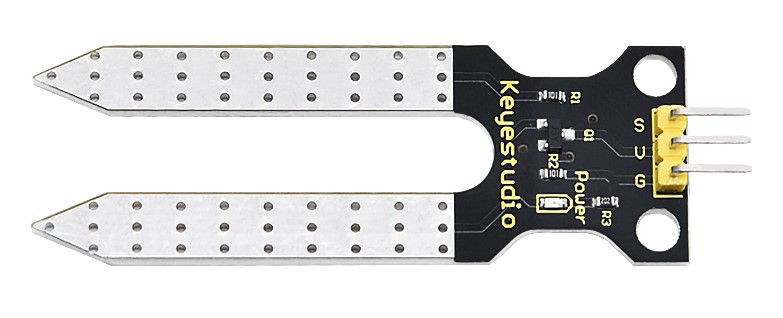

Soil Humidity Sensor

1

18

USB Cable

1

19

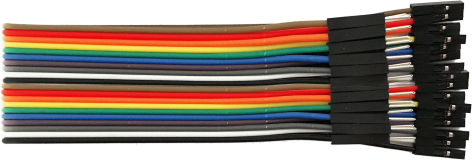

Female to Female Dupont Cables

40

20

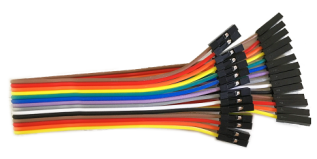

Male to female Dupont Cables

6

21

M3 Nickel Plated Nuts

25

image-20250416150440426

22

M2*12MM Round Head Screws

6

image-20250416150255499

23

M2 Nickel Plated Nuts

6

image-20250416150222937

24

M3*10MM Dual-pass Copper Bush

4

image-20250416150153520

25

M3*6MM Round Head Screws

8

image-20250416150130680

26

M3 304 Stainless Steel Self-locking Nuts

4

image-20250416150119881

27

M3*10MM Round Head Screws

20

image-20250416150056376

28

M2.5*10MM Round Head Screws

6

image-20250416150036608

29

M2.5 Nickel Plated Nuts

6

image-20250416150006617

30

M3*12MM Round Head Screws

6

image-20250416145907696

31

M3*10MM Flat Head Screws

2

image-20250416145826473

32

M1.2*5MM Round Head Self-tapping Screws

10

image-20250416145807856

33

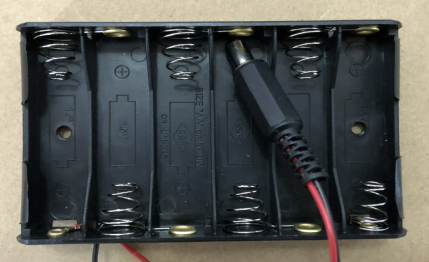

6-Slot AA Battery Holder with DC Head and 15cm Dew Line

1

34

Black-yellow Handle 3*40MM Cross Screwdriver

1

35

20cm 2.54 3Pin F-F Jumper Wire

13

36

20cm 2.54 4Pin F-F Jumper Wire

2
