1. Product introduction
1.1 Introduction

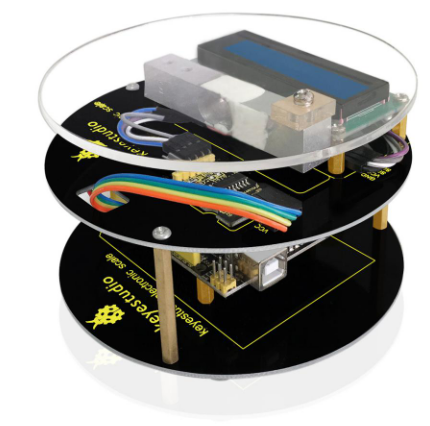

Electronic scale is commonly seen in our daily life, with function of weighting. Professional scales on market have more functions with higher precision. Is there any possibility for enthusiasts to DIY their own electronic scale with what they have learned? Absolutely you can! It is easy to make an open source electronic scale. You just need a weighting module, an AD chip (hx711) specialized in weighting and an Arduino with corresponding library. Everything becomes so easy!
1.2 Principle
Electronic scale weigh force according to slight deformation causing by pressing metal. It uses the most commonly used strain gauge to measure deformation. In a typical application, utilize the strain gauge adhered on face of this sensor, to measure the force bore by the sensor.
HX711 is a chip of 24 bit A\D converter, designed for high precision weighing sensor. Compared with other same-type chips, this chip is featured with high integration, quick response and strong anti-interference, integrated external circuit needed by other chips including stabilized voltage supply and on-chip clock oscillator.
It decreases cost of complete machine of the scale, and in the same time improve its performance and reliability. The interface and programs of this chip and MCU chip are very simple. All control signals are driven by pins, without programming register of inner chip. Input and select switch to choose arbitrarily channel A or B, connecting it to a low-noise programmable amplifier.
The gain in channel A is 128 or 64 bit, and its corresponding amplitude of different input signals in full loaded is respectively ±20mV or ±40mV. The gain in channel B is fixed 32, used to detect system parameters. Stabilized voltage supply offered by chip can directly supply power for external sensor and A\D converter, there no need for additional analog power on main board. Clock oscillator doesn’t need any external device. Automatic reset simplifies initialization when opening up.
1.3 Features
Channel A or B can choose different input.
The gain is 64 or 128 in the low-noise programmable amplifier.
Stabilized voltage supply offered by chip can directly supply power for external sensor and A\D converter.
Clock oscillator doesn’t need any external device. If necessary, it can use external crystal oscillator or clock.
Automatic reset function
All control signals are driven by pins, without programming register of inner chip.
Alternative 10Hz or 80Hz of output data rate
1.4 Kit List
No. |
Product Name |
Quantity |
Picture |
|---|---|---|---|
1 |
Keyestudio Board |
1 |
|
2 |
I2C 1602 LCD |
1 |
|
3 |
keyestudio Digital Push Button |
1 |
|
4 |
keyestudio HX711 Weighing Module |
1 |
|
5 |
5KG Rheostat Sensor |
1 |
|
6 |
Tabula Board（Upper Board） |
1 |
|
7 |
Tabula Board（Bottom Board） |
1 |
|
8 |
keyestudio R=120mm Bearing Acrylic Board |
1 |
|
9 |
keyestudio 15114 Acrylic Board 4mm Spacer |
2 |
|
10 |
50g Weight |
1 |
|
11 |
100g Weight |
1 |
|
12 |
Self-adhesion 3M Crashproof Transparent Colloidal Particle∮10*5（4 Granules） |
1 |
|
13 |
M3*6MM Round Head Screw |
24 |
|
14 |
M3 Nickeling Nut |
2 |
|
15 |
M4*10MM Round Head Screw |
2 |
|
16 |
Hexagonal Copper Fistular M3*10MM |
8 |
|
17 |
Hexagonal Copper Fistular M3*40MM |
3 |
|
18 |
Female to Female Dupont Line15CM |
20 |
|
19 |
USB Cable |
1 |
|
20 |
18650 Battery Case |
1 |
|
