1. Product introduction

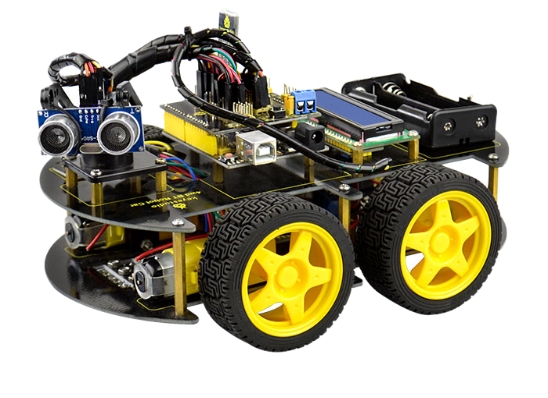

KS0192 keyestudio 4WD Bluetooth Multi-functional Car
1.1 Introduction
keyestudio 4WD Bluetooth Multi-purpose Car is a learning application development system based on microcontroller and with ATmega-328 as core. It has functions of line tracking, obstacle avoidance, IR remote control, Bluetooth remote control and distance detection. This kit contains plenty of interesting programs and can extend an external circuit module to increase more functions of this car. The kit aims to disengage users from boring theories and to obtain capacity of system development when they are learning Arduino.
1.2 Parameters
Motor: Voltage: 6-9V Reduction Ratio: 1:48
Choosing L298N driver module as control motor, separated from microcontrollor
Three line tracking modules, having higher precision when detecting white and black lines, able to realize anti-falling.
IR remote control module making up a remote control system of the car
Using ultrasonic module to realize obstacle avoidance
Pairing mobile phone Bluetooth with Bluetooth remote control module to control the car
Able to connect with external voltage at 7~12V, and equipped with various sensors to complete different functions as much as possible.
1.3 Component List
No. |
Product Name |
Quantity |
Picture |
|---|---|---|---|
1 |
keyestudio UNO R3 |
1 |
|
2 |
keyestudio Shield V5 |
1 |
|
3 |
keyestudio L298N Motor Shield |
1 |
|
4 |
keyestudio Bluetooh HC-06 |
1 |
|
5 |
I2C 1602 LCD |
1 |
|
6 |
keyestudio Line Tracking Sensor |
3 |
|
7 |
HC-SR04 Ultrasonic Sensor |
1 |
|
8 |
keyestudio Digital IR Receiver Module |
1 |
|
9 |
4WD Top PCB |
1 |
|
10 |
4WD Bottom PCB |
1 |
|
11 |
Servo Motor |
1 |
|
12 |
Servo Plastic Platform |
1 |
|
13 |
Remote Control of Chip |
1 |
|
14 |
Toggle Switch |
1 |
|
15 |
18650 Battery Holder |
1 |
|
16 |
Metal Motor |
4 |
|
17 |
Motor Fixed Parts |
4 |
|
18 |
Plastic Tire |
4 |
|
19 |
Copper Pillar 40MM |
6 |
|
20 |
Copper Pillar 10MM |
16 |
|
21 |
USB Cable |
1 |
|
22 |
Dupont Line |
30 |
|
23 |
M3*6MM Round Head Screw |
60 |
|
24 |
M3*8MM Flat Head Screw |
2 |
|
25 |
M3*30MM Round Head Screw |
8 |
|
26 |
3MM Nut |
16 |
|
27 |
Connector Wire (150mm, Black) |
6 |
|
28 |
Connector Wire (150mm, Red) |
6 |
|
29 |
Winding Wire (12CM) |
1 |
|
