2. Product Assembly

Step1

As shown below, the kit includes a glove, Nano board, expansion board, MPU6050 module, and BT24 Bluetooth master module (the 9 V battery is not included).

Step2

Insert the NANO board into the expansion board according to the pin layout.

Next, mount the Bluetooth module onto the expansion board as illustrated:

Step3

Pin sequence:

(GND → GND) (VCC → VCC) (TX → RX) (RX → TX)

Step4

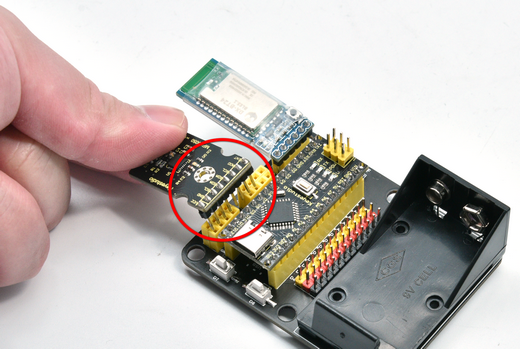

Install the MPU6050 module on the expansion board as shown:

Step5

(GND → GND) (VCC → VCC) (SDA → SDA) (SCL → SCL)

Step6

Peel off the protective film from the double-sided foam tape on the back of the board, stick it to the back of a glove, and press firmly to secure.

Step7

Assembly completed.
