4.2 Color Block Detection

4.2.1 Algorithm

We specify a certain color, and it will determine whether there is a block of that color in the image. If yes, it will return its coordinates and size. The color label is the same as that in color recognition algorithm.

Color babel table:

Label value	Meaning	Label value	Meaning
1	Black	2	White
3	Red	4	Green
5	Blue	6	Yellow
0	Unknown

---

4.2.2 Code Blocks

1. sets the minimum size of the detected color block and the detected color. Only one color block can be specified for recognition at a time.

2. returns the current position (y, z) and size (w, h) of the detected object on the screen, as well as the label. Before using it, we need to choose a function(Blob, Ball, Card…).

Formal parameter	Definition
x-coord	color block central coordinate x
y-coord	color block central coordinate y
width	color block width w
height	color block height h
Libel	color label

---

4.2.3 Test Code

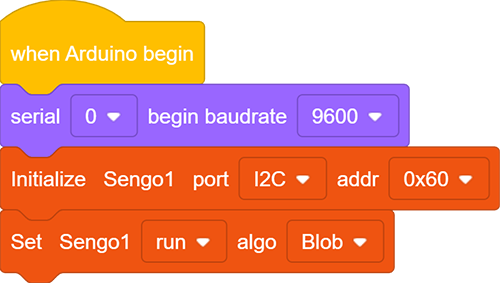

1. In the code start-up, set the serial port baud rate to 9600, and then set the communication mode of the AI vision module to I2C, and finally set it to run in Blob mode.

2. Set the minimum size of the recognized color block as well as the recognized color.

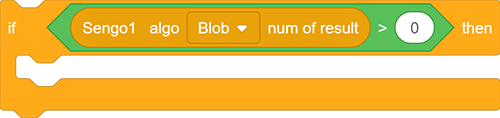

3. The if block determines the number of detections. Only when the number of detections is greater than 0 will the color block data be output. Note to choose Blob.

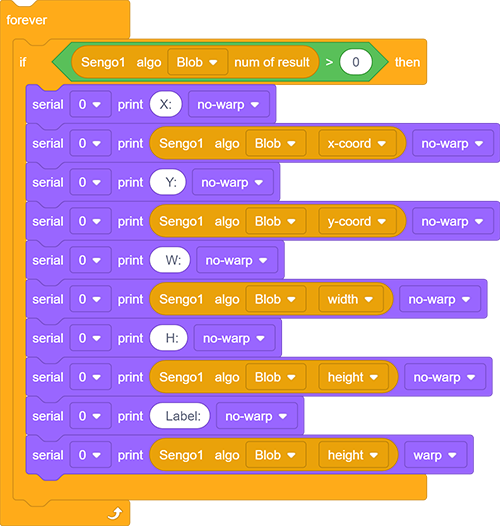

4. The serial port outputs various data of the recognized color blocks.

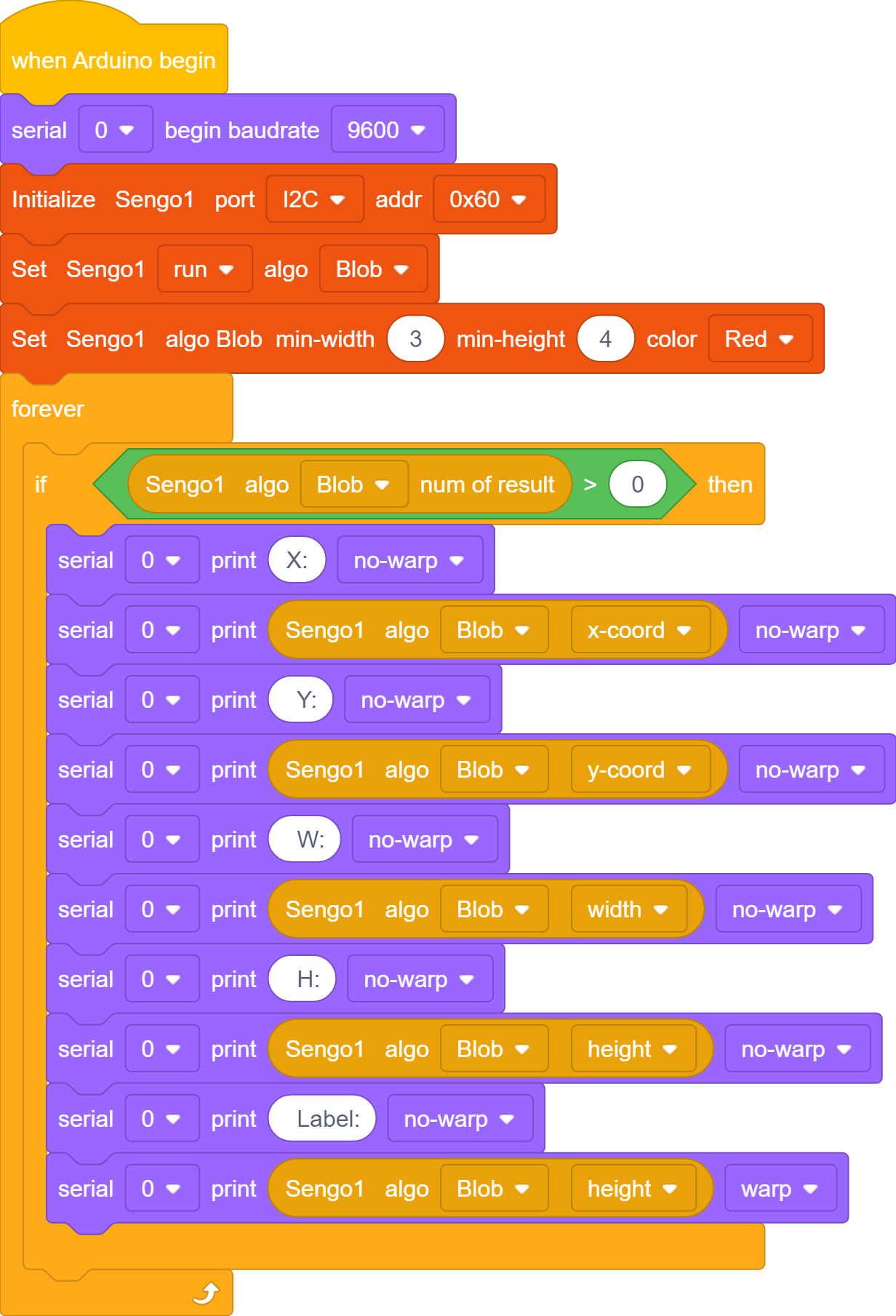

Complete code:

---

4.2.4 Test Result

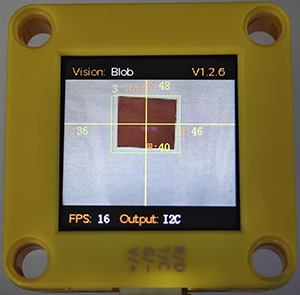

After uploading the code, the module will detect the area captured by the camera. If there is a red block, it will be selected and marked. Then, its position coordinates x and y, width, height, and color label value will be printed on the serial monitor.
