4.5 Card Recognition

4.5.1 Algorithm

15

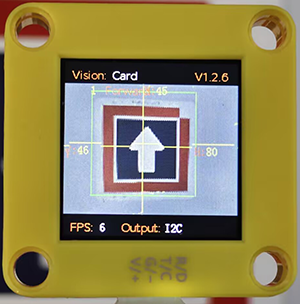

It can identify whether there are corresponding traffic cards in the image. If yes, it will return information including the coordinates, size, and label values of the cards.

4.5.2 Classification Label

Label

Definition

Pic

1

go forward

007

2

turn left

001

3

turn right

002

4

turn around

004

5

stop

003

Note: The algorithm can only recognize one card at a time. The card can still be recognized within a certain rotation, deflection and pitch angle. When using, please make the card face the camera as directly as possible for better recognition.

4.5.3 Returned Values

When the controller acquires the recognition result, the algorithm will return the followings:

Parameter

Definition

kXValue

Card central coordinate x

kYValue

Card central coordinate y

kWidthValue

Card width w

kHeightValue

Card height h

kLabel

Card label value

Code:

   // Traverse all the detected cards
    for (int i = 1; i <= obj_num; ++i) {
      // Obtain the coordinate and size of the card in the image
      int x = sengo.GetValue(VISION_TYPE, kXValue, i);      // Card central coordinate x
      int y = sengo.GetValue(VISION_TYPE, kYValue, i);      // Card central coordinate y
      int w = sengo.GetValue(VISION_TYPE, kWidthValue, i);  // Card width
      int h = sengo.GetValue(VISION_TYPE, kHeightValue, i); // Card height

      // Card label value (Corresponding to the card_classes array index)
      int card_type = sengo.GetValue(VISION_TYPE, kLabel, i);

      // Ensure that the card type is within a valid range (to prevent array out-of-bounds)
      if (card_type < 0) card_type = 0;
      if (card_type >= sizeof(card_classes)/sizeof(card_classes[0]))
        card_type = 0;

      // Print the detailed information of the card
      Serial.print("  Card #");
      Serial.print(i);
      Serial.print(": ");
      Serial.print("Position=(");
      Serial.print(x);
      Serial.print(",");
      Serial.print(y);
      Serial.print("), Size=");
      Serial.print(w);
      Serial.print("x");
      Serial.print(h);
      Serial.print(", Type=");
      Serial.println(card_classes[card_type]);  // Use the mapping table to obtain the type name
    }

4.5.4 Test Code

#include <Arduino.h>          // Arduino core library
#include <Sentry.h>           // Sentry machine vision sensor library

// Create an alias Sengo for the Sengo1 type to simplify subsequent usage
typedef Sengo1 Sengo;

// Communication method (currently enabled I2C).
#define SENGO_I2C
// #define SENGO_UART         // UART serial communication solution (annotated as disabled)

// Include the corresponding library according to the selected communication mode
#ifdef SENGO_I2C
#include <Wire.h>             // Libraries required for I2C communication
#endif

#ifdef SENGO_UART
#include <SoftwareSerial.h>   // Soft serial library
#define TX_PIN 11  // Customize the TX pin
#define RX_PIN 10  // Customize the RX pin
SoftwareSerial mySerial(RX_PIN, TX_PIN);  // Create a soft serial port object
#endif

// Define the visual processing type as a machine card recognition mode
#define VISION_TYPE Sengo::kVisionCard

// Create a Sengo sensor object
Sengo sengo;

// Card type name mapping table (Index corresponding to card label values)
const char* card_classes[] = {
  "unknown",      // 0: Unknown card type
  "forward",      // 1: Forward
  "left",         // 2: Turn left
  "right",        // 3: Turn right
  "turn_around",  // 4: Turn around
  "park",         // 5: Stop
  // Note: The size of the array should match the actual number of card types
};

void setup() {
  sentry_err_t err = SENTRY_OK;  // Define the error state variable and initialize it to be error-free

  Serial.begin(9600);            // Initialize the serial port for debugging the output
  Serial.println("Waiting for sengo initialize...");  // Print the initialization prompt

// Initialize the sensor according to the selected communication mode
#ifdef SENGO_I2C
  Wire.begin();  // Initialize the I2C bus
  // Keep trying to connect until succeed
  while (SENTRY_OK != sengo.begin(&Wire)) {
    yield();  // Allow other tasks to run while waiting
  }
#endif  // SENGO_I2C

#ifdef SENGO_UART
  mySerial.begin(9600);           // Initialize the soft serial port with a baud rate of 9600
  // Keep trying to connect until succeed
  while (SENTRY_OK != sengo.begin(&mySerial)) {
    yield();  // Allow other tasks to run while waiting
  }
#endif  // SENGO_UART

  Serial.println("Sengo begin Success.");  // Print the successful initialization information of the sensor

  // Activate the machine card recognition function
  err = sengo.VisionBegin(VISION_TYPE);

  // Print the initialization result of c recognition
  Serial.print("sengo.VisionBegin(kVisionCard) ");
  if (err) {
    Serial.print("Error: 0x");    // If an error occurs, print the error prefix
  } else {
    Serial.print("Success: 0x");  // If successful, print the success prefix
  }
  Serial.println(err, HEX);       // Print the error code in hexadecimal format
}

void loop() {
  // Obtain the detected cards
  int obj_num = sengo.GetValue(VISION_TYPE, kStatus);

  // If at least one card is detected
  if (obj_num > 0) {
    // Print the total number of detected cards
    Serial.print("Totally ");
    Serial.print(obj_num);
    Serial.println(" cards detected");

   // Traverse all the detected cards
    for (int i = 1; i <= obj_num; ++i) {
      // Obtain the coordinate and size of the card in the image
      int x = sengo.GetValue(VISION_TYPE, kXValue, i);      // Card central coordinate x
      int y = sengo.GetValue(VISION_TYPE, kYValue, i);      // Card central coordinate y
      int w = sengo.GetValue(VISION_TYPE, kWidthValue, i);  // Card width
      int h = sengo.GetValue(VISION_TYPE, kHeightValue, i); // Card height

      // Card label value (Corresponding to the card_classes array index)
      int card_type = sengo.GetValue(VISION_TYPE, kLabel, i);

      // Ensure that the card type is within a valid range (to prevent array out-of-bounds)
      if (card_type < 0) card_type = 0;
      if (card_type >= sizeof(card_classes)/sizeof(card_classes[0]))
        card_type = 0;

      // Print the detailed information of the card
      Serial.print("  Card #");
      Serial.print(i);
      Serial.print(": ");
      Serial.print("Position=(");
      Serial.print(x);
      Serial.print(",");
      Serial.print(y);
      Serial.print("), Size=");
      Serial.print(w);
      Serial.print("x");
      Serial.print(h);
      Serial.print(", Type=");
      Serial.println(card_classes[card_type]);  // Use the mapping table to obtain the type name
    }
  }

  delay(200);
}

4.5.5 Test Result

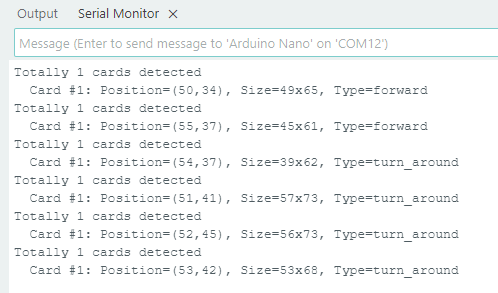

After uploading the code, the AI vision module will scan the area captured by the camera. If there is a card, it will recognize the card and print its type (forward, turn around, turn left, turn right, and stop) in the serial monitor.

13
