Project 30 Smart Home

1. Description

In this technology era, we are all familiar with smart home. It is a system that can control electric appliance via buttons.

In this project, we seek to stimulate a smart home via an IR remote control. With Arduino MCU as its core, it can be used to control light, air conditioners, TV and security monitors.

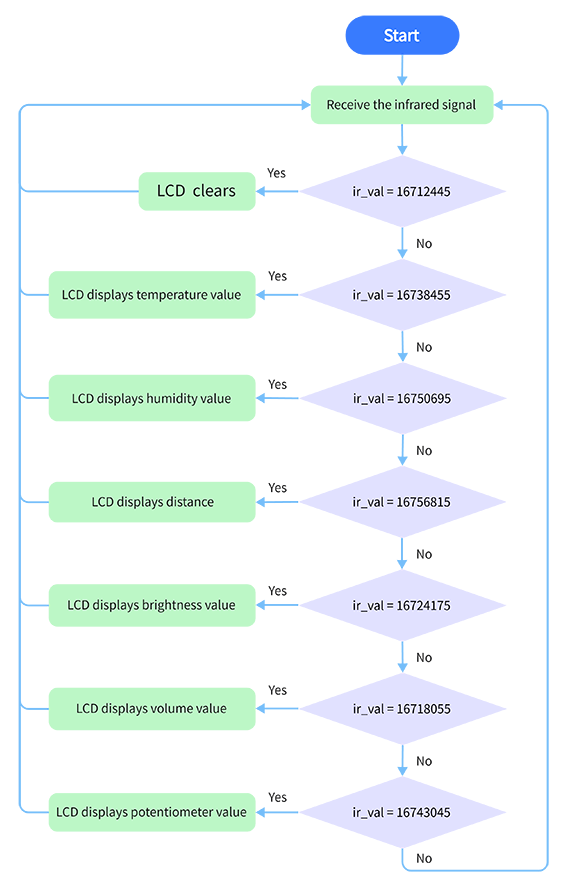

2. Flow Chart

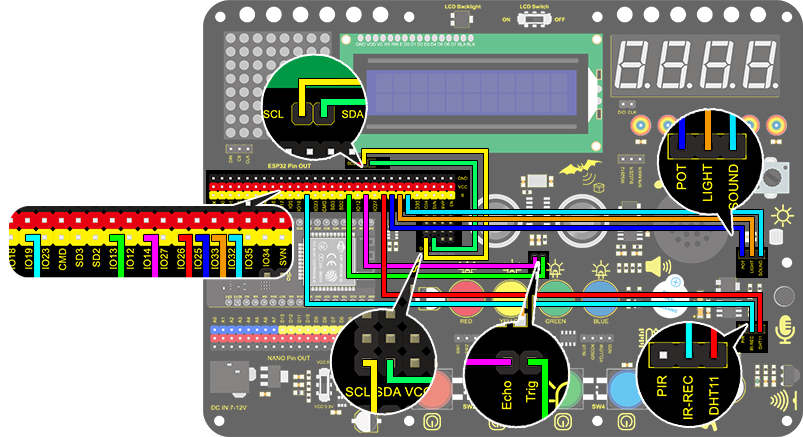

3. Wiring Diagram

4. Test Code

With the IR remote control, this smart home reveals various sensor values on LCD, including a temperature and humidity sensor, a sound sensor, a photoresistor, a potentiometer and an ultrasonic sensor.

5. Test Result

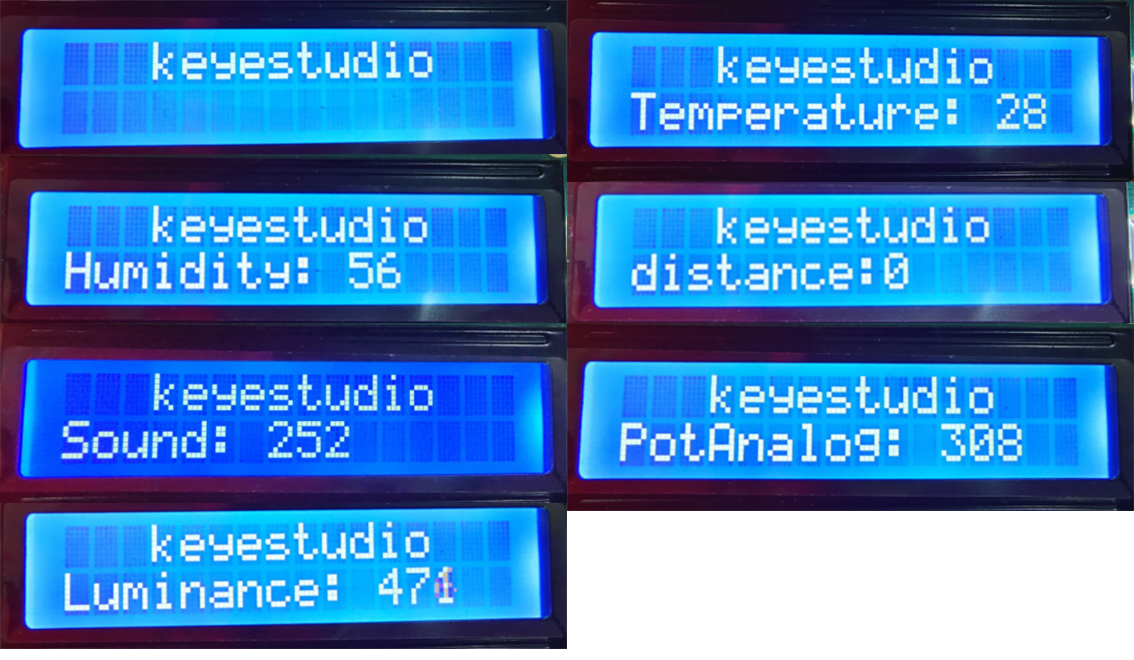

After connecting the wiring and uploading code, we can see the corresponding contents on LCD by pressing buttons. OK button clears the sensor display.

6. Code Explanation

The blocks are so many that we adopt “Make a Block” function. By doing this, numerous blocks are packaged and can be directly recalled, which vastly simplify the whole program.

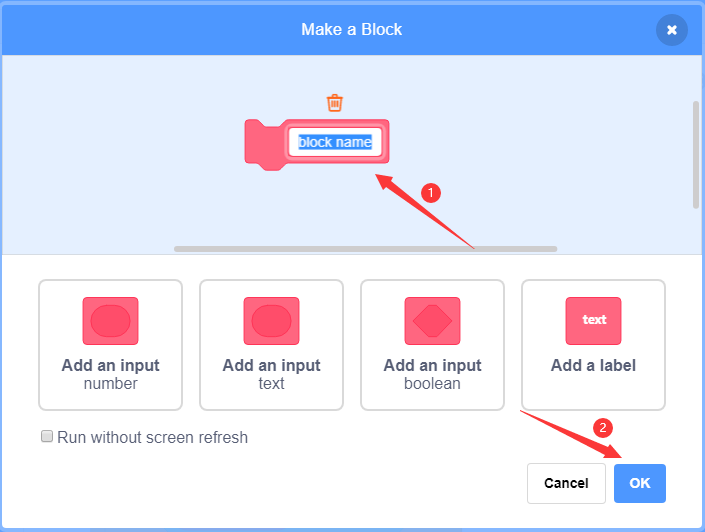

Click “My Block” to make a self-defined block, and you may build your own code blocks.
