Project 20 Flame Sensor

1. Introduction This flame sensor can be used to detect fire or other lights with wavelength stands at 760nm ~ 1100nm. In the fire-fighting robot game, the flame plays an important role in the probe, which can be used as the robot’s eyes to find fire source.

2. Specification

• Supply Voltage: 3.3V to 5V

• Detection Range: 20cm (4.8V) ~ 100cm (1V)

• Rang of Spectral Bandwidth: 760nm to 1100nm

• Operating Temperature: -25℃ to 85℃

• Interface: Digital

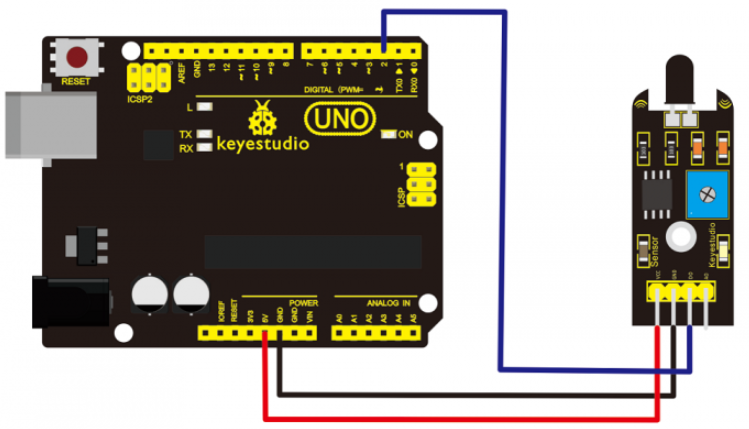

3. Connection Diagram Connect the D0 pin to digital 2, GND pin to GND port, VCC pin to 5V port.

4. Sample Code

const int flamePin = 2;     // the number of the flame pin
const int ledPin =  13;      // the number of the LED pin
// variables will change:
int State = 0;         // variable for reading status

void setup()
{
  // initialize the LED pin as an output:
  pinMode(ledPin, OUTPUT);
  // initialize the pushbutton pin as an input:
  pinMode(flamePin, INPUT);
}

void loop()
{
  // read the state of the value:
  State = digitalRead(flamePin);
  if (State == HIGH)
  {
    // turn LED on:
    digitalWrite(ledPin, HIGH);
  }
  else
  {
    // turn LED off:
    digitalWrite(ledPin, LOW);
  }
}

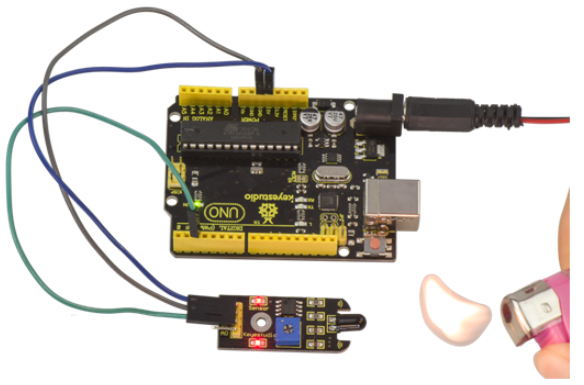

5. Result Done wiring and powered up, upload well the code to the board. Then if you put a lighter close to the sensor, when the sensor detects the flame, another led on the sensor is turned on.
