Project 28 18B20 Temperature Sensor

1. Introduction:

DS18B20 is a digital temperature sensor. It can be used to quantify environmental temperature testing. The temperature range is -55 ~ +125 ℃, inherent temperature resolution 0.5 ℃. It also support multi-point mesh networking.

The DS18B20 can be deployed to achieve multi-point temperature measurement. It has a 9-12 bit serial output.

2. Specification:

• Supply Voltage: 3.3V to 5V

• Temperature range: -55 °C ~ +125 °C

• Interface: Digital

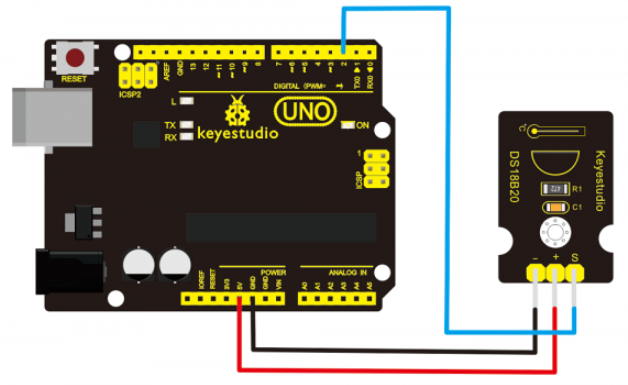

3. Connection Diagram

4. Sample Code

#include <OneWire.h>
int DS18S20_Pin = 2; //DS18S20 Signal pin on digital pin 2
 //Temperature chip i/o
OneWire ds(DS18S20_Pin);  // on digital pin 2

void setup(void)
{
  Serial.begin(9600);
}
void loop(void)
{
  float temperature = getTemp();
  Serial.println(temperature);
  delay(100); //to slow down the output so it is easier to read
}

float getTemp()
{
  //returns the temperature from one DS18S20 in DEG Celsius

  byte data[12];
  byte addr[8];
  if ( !ds.search(addr))
  {
      //no more sensors on chain, reset search
      ds.reset_search();
      return -1000;
  }
  if ( OneWire::crc8( addr, 7) != addr[7])
  {
      Serial.println("CRC is not valid!");
      return -1000;
  }
  if ( addr[0] != 0x10 && addr[0] != 0x28)
  {
      Serial.print("Device is not recognized");
      return -1000;
  }
  ds.reset();
  ds.select(addr);
  ds.write(0x44,1); // start conversion, with parasite power on at the end
  byte present = ds.reset();
  ds.select(addr);
  ds.write(0xBE); // Read Scratchpad
  for (int i = 0; i < 9; i++) // we need 9 bytes
  {
    data[i] = ds.read();
  }
  ds.reset_search();
  byte MSB = data[1];
  byte LSB = data[0];
  float tempRead = ((MSB << 8) | LSB); //using two's compliment
  float TemperatureSum = tempRead / 16;
  return TemperatureSum;
}

Done uploading the code to the board, open the serial monitor, and you can see the measured temperature data.
