Project 13 Flame Sensor

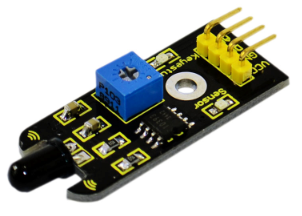

1.Introduction This flame sensor can be used to detect fire or other lights whose wavelength stands at 760 nm ~ 1100 nm. In the fire-fighting robot game, the flame plays an important role in the probe, which can be used as the robot’s eyes to find fire source.

2.Specification

• Supply Voltage: 3.3V to 5V

• Detection range: 20cm (4.8V) ~ 100cm (1V)

• Rang of Spectral Bandwidth: 760nm to 1100nm

• Operating temperature: -25℃to 85℃

• Interface: digital

• Size: 44*16.7mm

• Weight: 4g

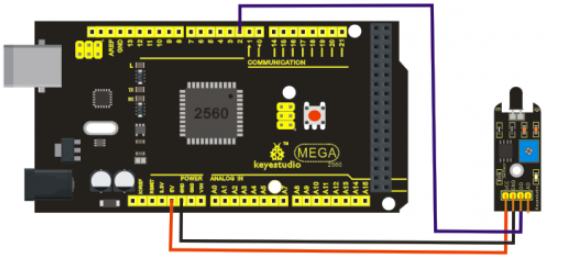

3.Connection Diagram

4.Sample Code

const int flamePin = 2;     // the number of the flame pin
const int ledPin =  13;      // the number of the LED pin
// variables will change:
int State = 0;         // variable for reading status

void setup()
{
  // initialize the LED pin as an output:
  pinMode(ledPin, OUTPUT);
  // initialize the pushbutton pin as an input:
  pinMode(flamePin, INPUT);
}

void loop()
{
  // read the state of the value:
  State = digitalRead(flamePin);
  if (State == HIGH)
  {
    // turn LED on:
    digitalWrite(ledPin, HIGH);
  }
  else
  {
    // turn LED off:
    digitalWrite(ledPin, LOW);
  }
}
