Project 1 LED Blinking

1.Introduction

This project is one of the basic experiments, which can achieve LED blinking by graphical programming.

2.Materials Required

1. KEYESTUDIO UNO Control Board *1

2. V5 Sensor Shield*1

3. Piranha LED*1

4. Female to Female Dupont Line*1

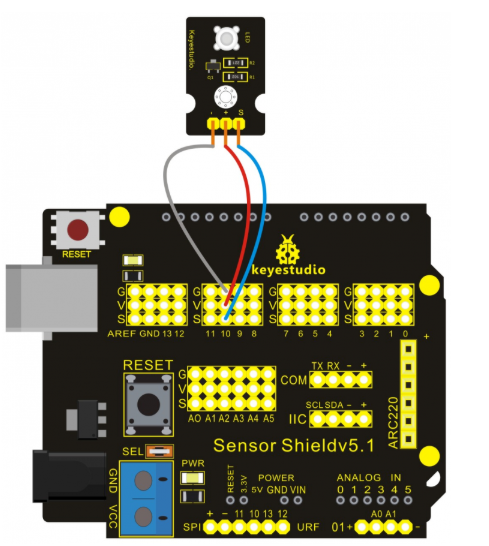

3.Connection Diagram

4.Sample Code

void setup()
{
  pinMode( 10 , OUTPUT);
}

void loop()
{
  digitalWrite( 10 , HIGH );
  delay( 1000 );
  digitalWrite( 10 , LOW );
  delay( 1000 );
}

5.Result

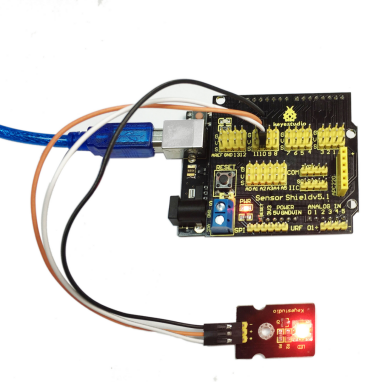

Then, you can see the high brightness LED blinking. We have now finished this project!

Note: Arduino software selection On the TOOLS menu, select UNO. COM port selects the same serial port with the first installation. You cannot download program unless both requirements are met.
