Project 9 Sound-controlled Light

1.Introduction

Sound sensor is used to detect the intensity of ambient sound; the intensity is proportional to output voltage.

In this project, we use graphical programming to read out analog value of sound intensity measuring by sound module, ranging from 0 to 1023. And then map the value to 0-255, displaying on serial monitor. Finally set the mapped value as PwM value to control brightness of LED.

2.Materials Required

1. KEYESTUDIO UNO Control Board *1

2. V5 Sensor Shield*1

3. Piranha LED*1

4. Sound Module*1

5. Female to Female Dupont Line*6

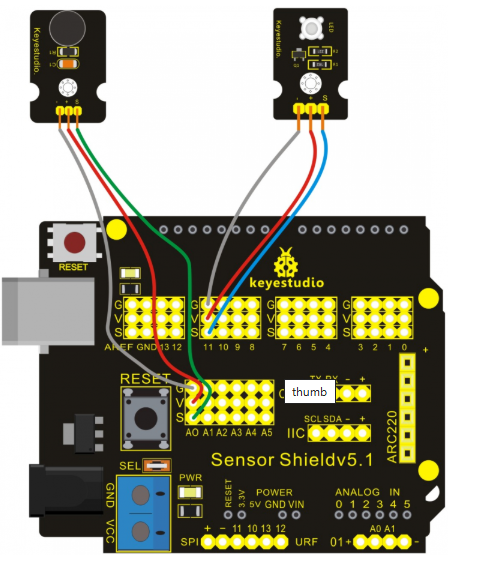

3.Connection Diagram

4.Sample Code

int _ABVAR_1_sound_value = 0 ;

void setup()
{
  pinMode( 11 , OUTPUT);
  Serial.begin(9600);
}

void loop()
{
  _ABVAR_1_sound_value = 0 ;
  _ABVAR_1_sound_value = ( _ABVAR_1_sound_value + analogRead(0) ) ;
  analogWrite(11 , map ( _ABVAR_1_sound_value , 0 , 1023 , 0 , 255 ) );
  Serial.print("sound val:");
  Serial.print(_ABVAR_1_sound_value);
  Serial.println();
}

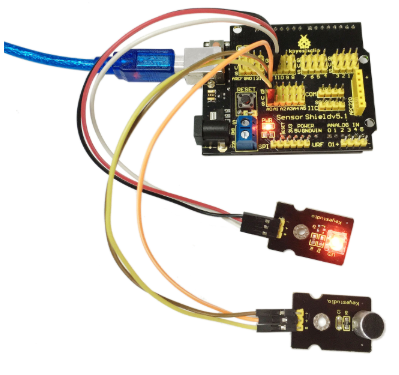

5.Result

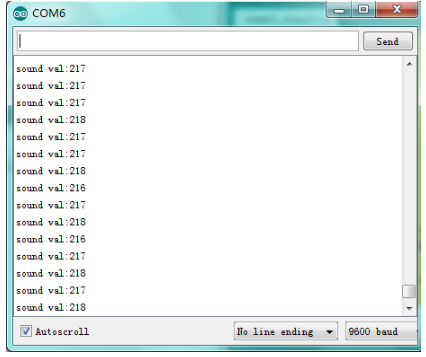

After downloading program, have a look at values on serial monitor.
