Project 16 LED Blinking

1.Introduction

This project is easier and you can make LED blink simply by modifying the codes a bit.

2.Hardware Required

• Arduino Board *1

• V5 Shield*1

• USB Cable*1

• Piranha LED Module*1

• Dupont Line*3

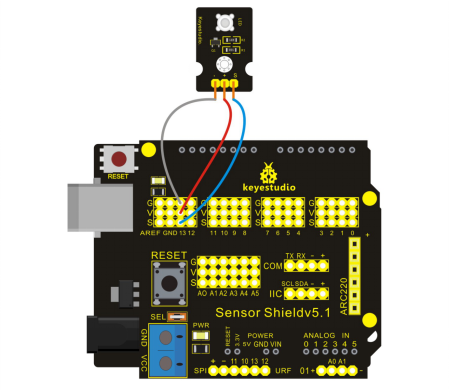

3.Circuit Connection

4.Sample Code

 int led = 13;

// the setup routine runs once when you press reset:

void setup()
{
  // initialize the digital pin as an output.
  pinMode(led, OUTPUT);
}

// the loop routine runs over and over again forever:
void loop()
{
  digitalWrite(led, HIGH);   // turn the LED on (HIGH is the voltage level)
  delay(1000);               // wait for a second
  digitalWrite(led, LOW);    // turn the LED off by making the voltage LOW
  delay(1000);               // wait for a second
}

5.Result

Upload the codes to REV4 board and then you can see piranha LED and L light on the board are blinking together with an interval of one second.
