Project 19 Steam Sensor

1.Introduction

When there is drop or vapor adhered to sensing point of vapor sensor, MCU will get a feedback of analog signal from S signal pin of the sensor. You can read out the value from MCU to deduce whether it rains.

2.Hardware Required

• Arduino board * 1

• V5 Shield *1

• USB Cable*1

• Steam Sensor*1

• Dupont Line*3

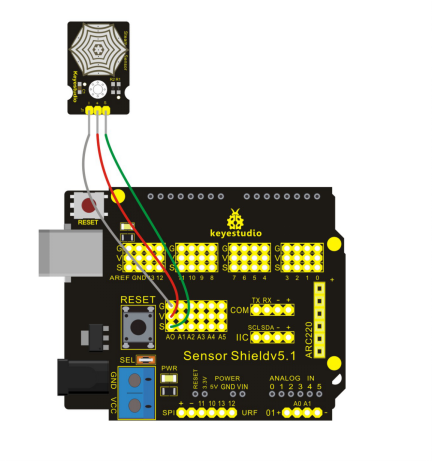

3.Circuit Connection

4.Sample Code

void setup()
{
  // initialize serial communication at 9600 bits per second:
  Serial.begin(9600);
}

// the loop routine runs over and over again forever:
void loop()
{
  // read the input on analog pin 0:
  int sensorValue = analogRead(A0);
  // print out the value you read:
  Serial.println(sensorValue);
  delay(1);        // delay in between reads for stability
}

5.Result

After uploading the codes to REV4 board, open serial monitor, and you can see current value. Add drop on the sensing point and the analog value increases.
