Project 16 8*16 dot matrix-display texts and numbers

1.project instruction

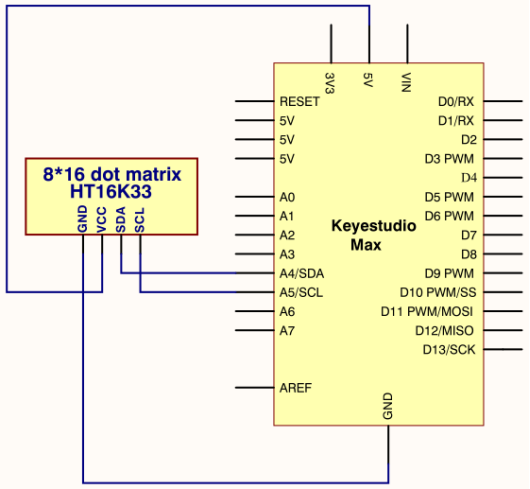

In this project, we will make 8*16 dot matrix produce some numbers and texts, like advertisement board at bus station.

2.Project Principle

This program is pretty easy. We only need to confirm the coordinate of texts and numbers. Let’s conduct an experiment to illustrate.

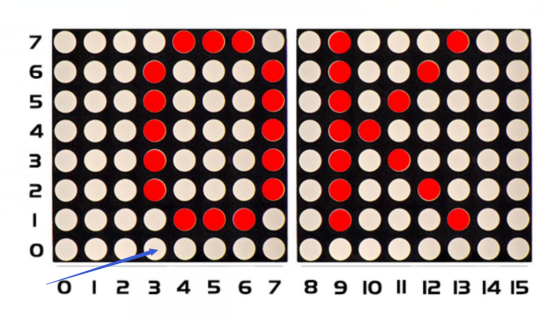

We set the display area to start from number 3 on horizontal coordinate and number zero on vertical coordinate, as shown below：

We add the texts to be shown in the code matrix.print after getting the coordinate of text. Note: numbers can be shown directly, but texts need adding double quotes.

3.Project code

#include <Wire.h>
#include "Keyestudio_LEDBackpack.h"
#include "Keyestudio_GFX.h"
Keyestudio_8x16matrix matrix = Keyestudio_8x16matrix();

void setup()
{
  matrix.begin(0x70);  // pass in the address
}

void loop()
{
  matrix.setTextSize(1);// set size of text
  matrix.setTextWrap(false);  // we dont want text to wrap so it scrolls nicely
  matrix.setTextColor(LED_ON);
  matrix.setRotation(1);// show rotation
  matrix.clear();
  matrix.setCursor(3,0);//set the coordinate of text
  matrix.print("OK");   //show OK
  matrix.writeDisplay();
  delay(1000);
}
