Project 6 Line Tracking Smart Car

1.Description

In this project we will make a line tracking smart car. It works to use a line tracking sensor to detect the black track of the road, and the road surface detection signal is fed back to the control board. The control board analyzes and judges the collected signals, and timely controls the motor to adjust the direction of the car, making the car run automatically along the black track to realize the purpose of automatic tracking of the car.

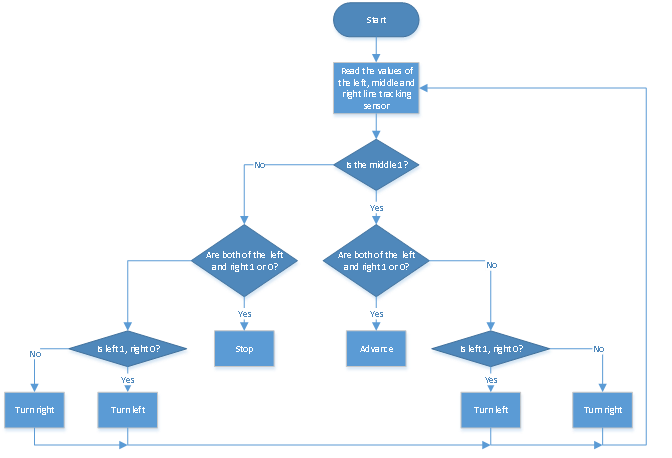

2.Flow Diagram

3.Test Code

#include "MecanumCar_v2.h"
mecanumCar mecanumCar(20, 21);  //sda-->20,scl-->21

#define SensorLeft    16   //input pin of left sensor
#define SensorMiddle  17   //input pin of middle sensor
#define SensorRight   18   //input pin of right sensor

void setup()
{
  /****Set all the interface of the line tracking sensor to input mode***/
  pinMode(SensorLeft, INPUT);
  pinMode(SensorMiddle, INPUT);
  pinMode(SensorRight, INPUT);
  mecanumCar.Init(); //Initialize the seven-color leds and motor drivers
}

void loop()
{
  uint8_t SL = digitalRead(SensorLeft);   //Read the value of the left line tracking sensor
  uint8_t SM = digitalRead(SensorMiddle); //Read the value of the left line tracking sensor
  uint8_t SR = digitalRead(SensorRight);  //Read the value of the right line tracking sensor
  if (SM == HIGH)
  {
    if (SL == LOW && SR == HIGH) // black on right, white on left, turn right
    {
      mecanumCar.Turn_Right();
    }
    else if (SR == LOW && SL == HIGH) // black on left, white on right, turn left
    {
      mecanumCar.Turn_Left();
    }
    else // white on both sides, going forward
    {
      mecanumCar.Advance();
    }
  }
  else
  {
    if (SL == LOW && SR == HIGH) // black on right, white on left, turn right
    {
      mecanumCar.Turn_Right();
    }
    else if (SR == LOW && SL == HIGH) // white on right, black on left, turn left
    {
      mecanumCar.Turn_Left();
    }
    else // all white, stop
    {
      mecanumCar.Stop();
    }
  }
}

4.Test Result

After uploading the test code successfully, power up and the smart car will drive along the black line.

5.Code Explanation

#define SensorLeft 16	Define the pin
pinMode(SensorLeft, INPUT);	Set pin input/output mode
mecanumCar.Init();	Initialize the motor drive
SL = digitalRead(SensorLeft);	Read pin level signal and save to variable
if (SM == HIGH)	If read a high level
if (SL == LOW && SR == HIGH)	If the left is low and the right is high
else if (SR == LOW && SL == HIGH)	If the right is low and the left is high
