Project 9 Ultrasonic Avoidance Smart Car

1.Description

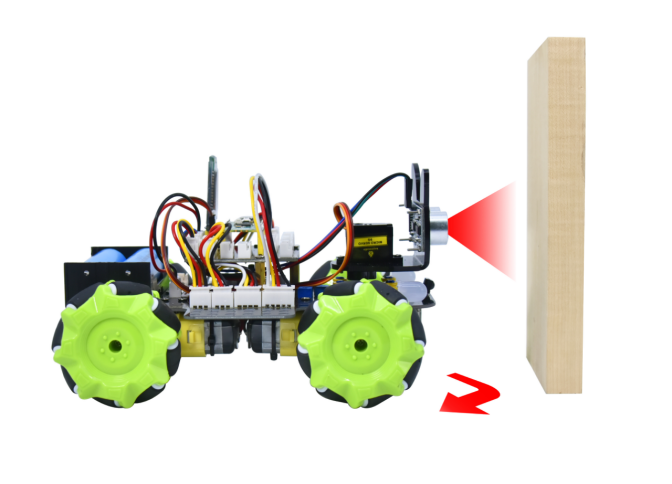

Ultrasonic avoidance smart car is used to control the car motion state, so as to achieve obstacle avoidance by using the ultrasonic sensor detecting the obstacles distance.

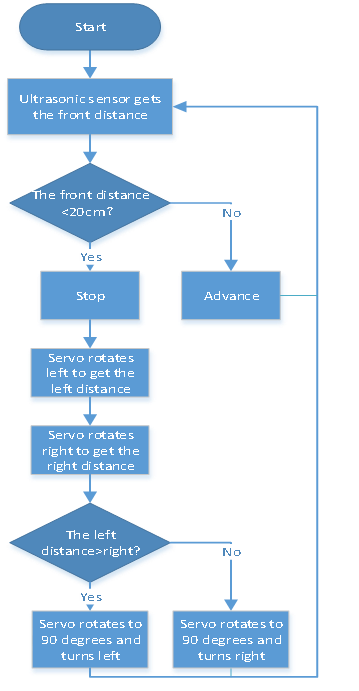

2.Flow Diagram

3.Test Code

from machine import Pin,I2C
import mecanumCar_v2
import time

i2c = I2C(0, sda = Pin(20), scl = Pin(21), freq = 400000) #iic0 sda-->20,scl-->21
mecanumCar = mecanumCar_v2.Driver(i2c) #Create a driver instance for the car

mecanumCar.set_angle(90)
time.sleep(0.5)
while True:
    distance = mecanumCar.get_distance()
    if distance <= 15:
        mecanumCar.stop()
        time.sleep(0.5)
        mecanumCar.set_angle(180)
        time.sleep(0.5)
        l_distance = mecanumCar.get_distance()
        time.sleep(0.1)
        mecanumCar.set_angle(0)
        time.sleep(0.5)
        r_distance = mecanumCar.get_distance()
        time.sleep(0.1)
        mecanumCar.set_angle(90)
        time.sleep(0.5)
        if l_distance > r_distance:
            mecanumCar.Turn_Left()
             time.sleep(0.3)
        else:
            mecanumCar.Turn_Right()
            time.sleep(0.3)
    else:
        mecanumCar.Advance()

4.Test Result

After clickingimgto run the code successfully and power up, then the car can automatically avoid obstacles. Note that the speed can’t be too large.

The car will stop when encountering obstacles in front of it and the servo cradle head will rotate left to detect the left distance, then rotate right to detect the right distance. Then judge the distance between the obstacles on the left and the right, the car will turn along the farther side, and then continue to drive.

5.Code Explanation

mecanumCar.set_angle(90)

Make the servo rotate to 90 degrees

distance = mecanumCar.get_distance()

Define an variable distance to store the measured distance, and then control the car driving according to it

if distance <= 15:

If the distance is less than 15cm, the car will stop and judge the left and right distance

mecanumCar.set_angle(180)
time.sleep(0.5)
l_distance = mecanumCar.get_distance()
time.sleep(0.1)

Ultrasonic turns right to detect and save the distance

mecanumCar.set_angle(0)
time.sleep(0.5)
l_distance = mecanumCar.get_distance()
time.sleep(0.1)

Ultrasonic turns right to detect and save the distance

mecanumCar.set_angle(90)
time.sleep(0.5)

The servo return to the 90 degrees position

if l_distance > r_distance

Judge the left and right distance

mecanumCar.Advance()

If the front distance is bigger than 15cm, the car will advance
