Project 7 Ultrasonic Obstacle Avoiding Car

1.Description

In the previous project, we have combined a tracking sensor and micro:bit car shield to build a line tracking car.

Here we combine a ultrasonic module and micro:bit car shield to build an ultrasonic obstacle avoiding car.

How does it work?

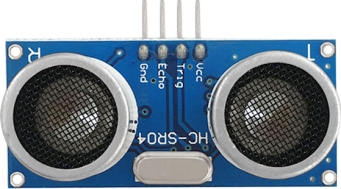

We have introduced the principle of ultrasonic module before. We can use a ultrasonic module to measure the distance between the micro:bit car and an obstacle ahead. Then control the running state of micro:bit robot car according to the measured distance.

2.Programming Thinking

①At first, use a ultrasonic module to measure the distance between the micro:bit car and an obstacle ahead.

②When the measured distance is less than 10cm, the micro:bit car stops for 0.2 second, then turns left for 0.5 second and then goes forward. If the measured distance is greater than or equal to 10cm, the micro:bit car will directly go forward.

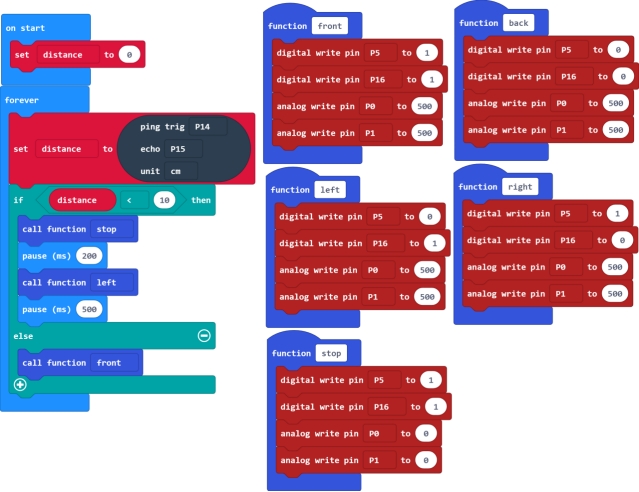

3.Test Code

4.Test Result

Send the test code to micro:bit main board, then insert the micro:bit main board into the car shield and connect a 18650 battery, turn the POWER switch ON.

At this moment, if the micro:bit robot car encounters an obstacle ahead, it will turn left to a certain angle, then go forward.
