5.2 Lichtregelsysteem

5.2.1 Fotocel-sensor

Open de 5.2.1Photocell-sensor code met Arduino IDE.

#define PhotocecllPin 34  //Define the photoresistor pin

void setup() {
  //Initialize the serial port
  Serial.begin(9600);
  //Set the pin to input mode
  pinMode(PhotocecllPin,INPUT);
}

void loop() {
  //Read the value of photoresistor
  int ReadValue = analogRead(PhotocecllPin);
  //Print the value. NOTE: ESP32 board is 12-bit ADC, whose detection value range is within 0~4095.
  Serial.print("Photocecll value: ");
  Serial.println(ReadValue);
  delay(500);
}

Kies het ESP32 Dev Module bord en de COM poort, en upload de code.

5458448

Testresultaat:

Open de seriële monitor.

Hoe helderder het licht dat door de fotoweerstand wordt gedetecteerd, hoe groter de waarde zal zijn.

image-20250417112320453

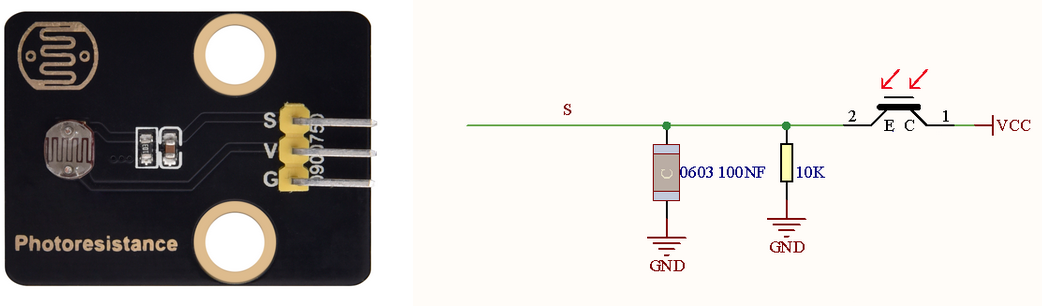

Een fotoweerstandmodule zet een lichtsignaal om in een elektrisch signaal (spanning, stroom en weerstand). Wanneer licht de fotoweerstand raakt, geldt: hoe sterker het licht, hoe kleiner de weerstand, dus hoe groter de VCC-spanning die door de fotoweerstand zal gaan.


5.2.2 Lichtregelsysteem

Open de 5.2.2Light-Control-System code met Arduino IDE.

#define PhotocecllPin 34  //Define the photoresistor pin
#define LED           27  //Define LED pin

void setup() {
  //Initialize serial port
  Serial.begin(9600);
  //Set the photoresistor pin to input mode
  pinMode(PhotocecllPin,INPUT);
  //Set the LED pin to output mode
  pinMode(LED,OUTPUT);
}

void loop() {
  //Read the value of the photoresistor
  int ReadValue = analogRead(PhotocecllPin);
  //Print the value. NOTE: ESP32 board is 12-bit ADC, whose detection value range is within 0~4095.
  Serial.print("Photocecll value: ");
  Serial.println(ReadValue);
  //Determine:
  //The value of the photoresistor >= 800, LED turns off
  //The value of the photoresistor =< 800, LED turns on
  if(ReadValue >= 800) {
    digitalWrite(LED,LOW);
    Serial.println("LED OFF");
  }
  else{
    digitalWrite(LED,HIGH);
    Serial.println("LED ON");
  }
  delay(100);
}

Kies het ESP32 Dev Module bord en de COM poort, en upload de code.

5458448

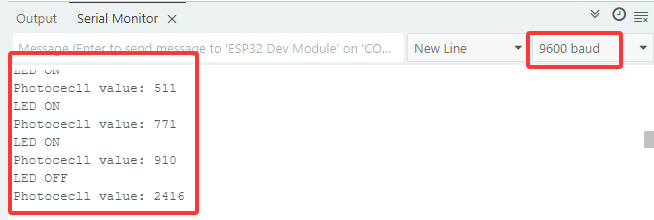

Testresultaat:

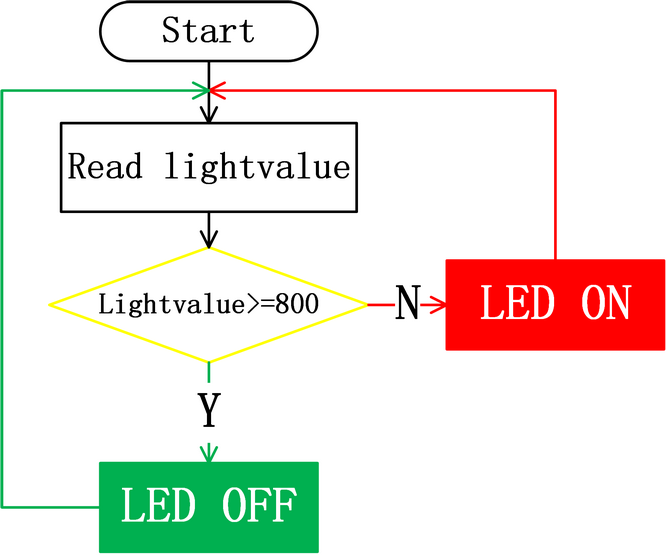

Wanneer de waarde van de fotoweerstand groter is dan 800 (overdag), gaat de LED uit. Als de waarde echter kleiner is dan 800, gaat de LED automatisch aan.

flo2
