Project 14:Line-tracking Tank

(1)Description:

The previous project introduced how to confine the smart car to move within a certain space. In this project, we will use the knowledge learned before to make it a line-tracking smart car. In the experiment, we use the line-tracking sensor to detect whether there is a black line around the smart car, and then control the rotation of the two motors according to the detection results, so as to make the smart car move along the black line.

The specific logic of the smart car is shown in the table below:

Sensor	Detection
Line-tracking sensor in the middle	Black line detected: in high level White line detected: in low level
Line-tracking sensor on the left	Black line detected: in high level White line detected: in low level
Line-tracking sensor on the right	Black line detected: in high level White line detected: in low level

Condition 1	Condition 2	Movement
Line-tracking sensor in the middle detects the black line	Line-tracking sensor on the left detects the black line the one on the right detects white lines	Rotate left
Line-tracking sensor in the middle detects the black line	Line-tracking sensor on the left detects white lines the one on the right detects the black line	Rotate right
Line-tracking sensor in the middle detects the black line	Both the left and right line-tracking sensors detect white lines Both the left and right line-tracking sensors detect the black line	Move forward
Line-tracking sensor in the middle detects white lines	Line-tracking sensor on the left detects the black line the one on the right detects white lines	Rotate left
Line-tracking sensor in the middle detects white lines	Line-tracking sensor on the left detects white lines the one on the right detects the black line	Rotate right
Line-tracking sensor in the middle detects white lines	Both the left and right line-tracking sensors detect white lines Both the left and right line-tracking sensors detect the black line	Stop

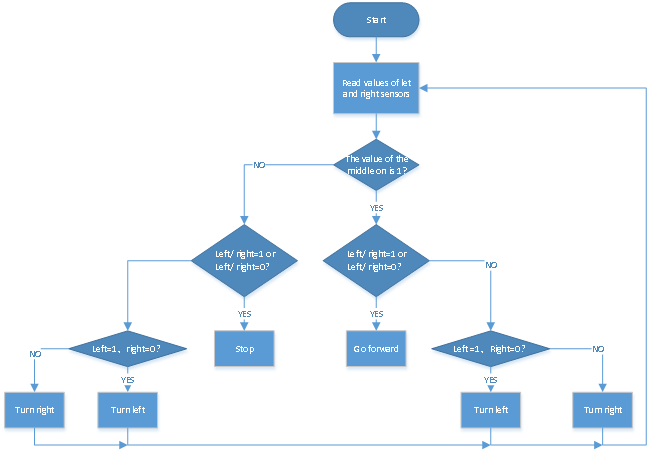

(2)Flow chart:

(3)Connection Diagram:

(4)Test Code:

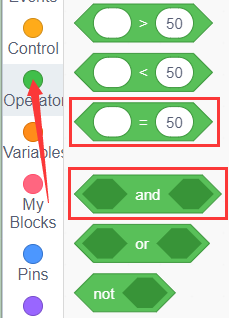

You can also drag blocks to edit your code, as shown below

（1）

（2）

（3）

（4）

（5）

（6）

（7）

（8）

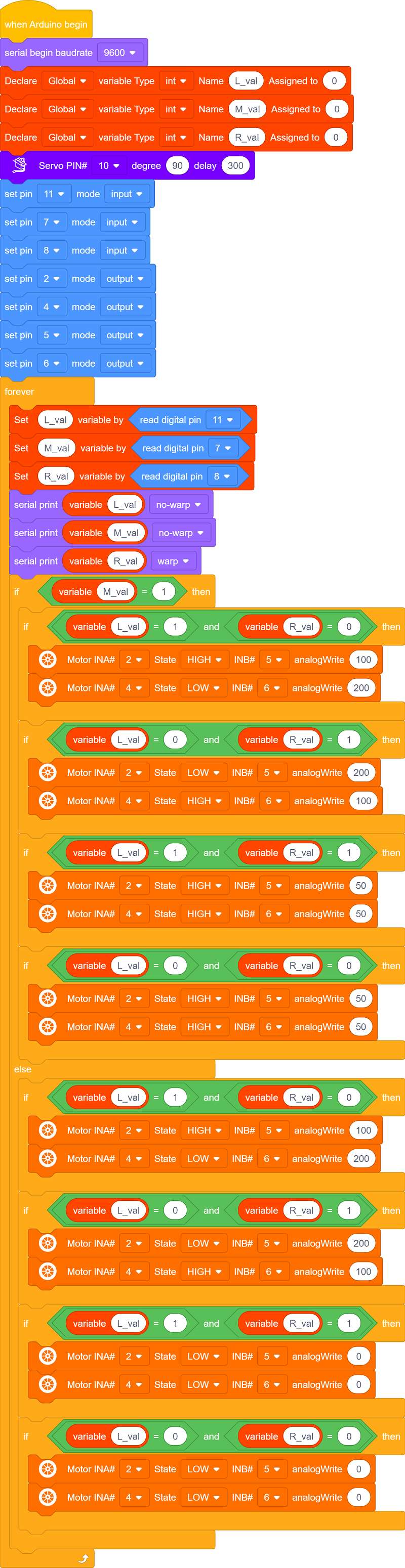

Complete Test Code

(Note: Do not connect the Bluetooth module before uploading the code, because uploading the code also uses serial communication, and there may be conflicts with the Bluetooth serial communication, which can cause the upload to fail.)

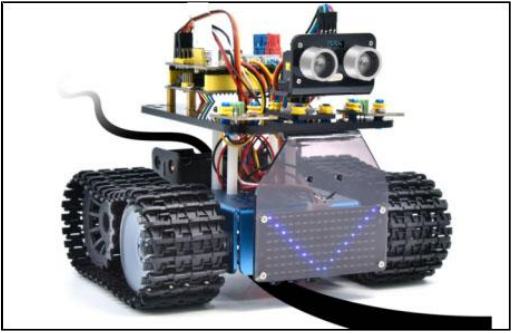

(5)Test Results:

After uploading the test code successfully and powering on, the smart car moves along the black line.
