Project 22 Geluidsmeter

1. Beschrijving

De geluidsmeter kan het aantal stippen op de LED-matrix gebruiken om de grootte van het geluid weer te geven.

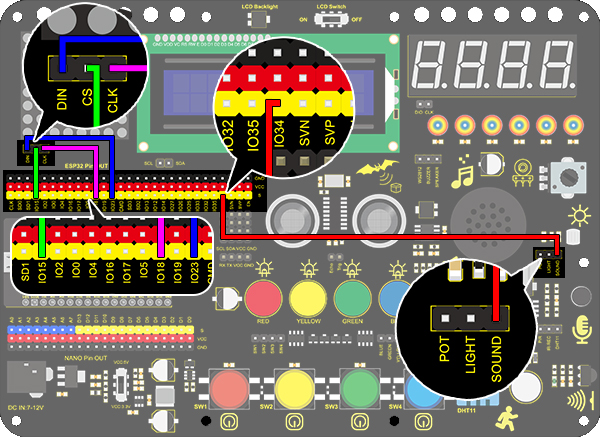

2. Aansluitschema

3. Testcode

/*
  keyestudio ESP32 Inventor Learning Kit
  Project 22 Noisemeter
  http://www.keyestudio.com
*/
#include <LedControl.h>

int DIN = 23;
int CLK = 18;
int CS = 15;
int sensor = 34;

LedControl lc=LedControl(DIN,CLK,CS,1);
byte data_val[8][8]= {
  {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x01},
  {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x03, 0x01},
  {0x00, 0x00, 0x00, 0x00, 0x00, 0x07, 0x03, 0x01},
  {0x00, 0x00, 0x00, 0x00, 0x0f, 0x07, 0x03, 0x01},
  {0x00, 0x00, 0x00, 0x1f, 0x0f, 0x07, 0x03, 0x01},
  {0x00, 0x00, 0x3f, 0x1f, 0x0f, 0x07, 0x03, 0x01},
  {0x00, 0x7f, 0x3f, 0x1f, 0x0f, 0x07, 0x03, 0x01},
  {0xff, 0x7f, 0x3f, 0x1f, 0x0f, 0x07, 0x03, 0x01}
  };


void setup()
{
 lc.shutdown(0,false);       //When powering on, MAX72XX is in the power saving mode.
 lc.setIntensity(0,8);       //Set the brightness to the maximum
 lc.clearDisplay(0);         //Clear the display
}

void loop()
{
  int val = analogRead(sensor);
  Serial.println(val);
  int temp = map(val,0,800,0,7);  //The range of analog values in the 0-800 is the most appropriate
  for(int i=0;i<8;i++)
  {
    lc.setRow(0,7-i,data_val[temp][i]);
  }
}

4. Testcode

Hoe groter de geluidswaarde die door de geluidsensor wordt gedetecteerd, hoe meer stippen er op de LED-matrix oplichten.
