Project 22 Noise Meter

1. Description

The noise meter will be able to use the number of dots on the LED matrix to reflect the size of the noise.

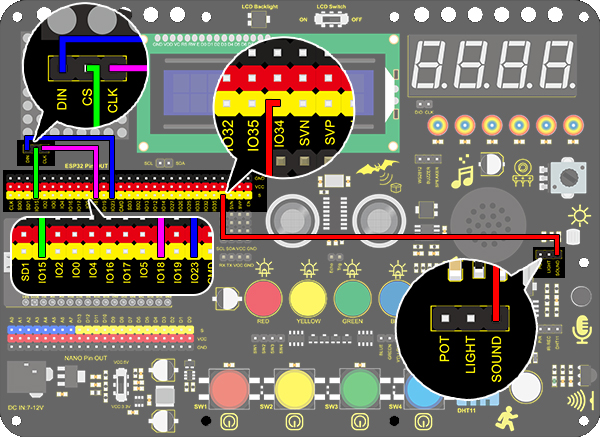

2. Wiring Diagram

3. Test Code

/*
  keyestudio ESP32 Inventor Learning Kit
  Project 22 Noisemeter
  http://www.keyestudio.com
*/
#include <LedControl.h>

int DIN = 23;
int CLK = 18;
int CS = 15;
int sensor = 34;

LedControl lc=LedControl(DIN,CLK,CS,1);
byte data_val[8][8]= {
  {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x01},
  {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x03, 0x01},
  {0x00, 0x00, 0x00, 0x00, 0x00, 0x07, 0x03, 0x01},
  {0x00, 0x00, 0x00, 0x00, 0x0f, 0x07, 0x03, 0x01},
  {0x00, 0x00, 0x00, 0x1f, 0x0f, 0x07, 0x03, 0x01},
  {0x00, 0x00, 0x3f, 0x1f, 0x0f, 0x07, 0x03, 0x01},
  {0x00, 0x7f, 0x3f, 0x1f, 0x0f, 0x07, 0x03, 0x01},
  {0xff, 0x7f, 0x3f, 0x1f, 0x0f, 0x07, 0x03, 0x01}
  };


void setup()
{
 lc.shutdown(0,false);       //When powering on, MAX72XX is in the power saving mode.
 lc.setIntensity(0,8);       //Set the brightness to the maximum
 lc.clearDisplay(0);         //Clear the display
}

void loop()
{
  int val = analogRead(sensor);
  Serial.println(val);
  int temp = map(val,0,800,0,7);  //The range of analog values in the 0-800 is the most appropriate
  for(int i=0;i<8;i++)
  {
    lc.setRow(0,7-i,data_val[temp][i]);
  }
}

4. Test Code

The greater the sound value detected by the sound sensor, the more dots light up on the LED matrix.
